Overview

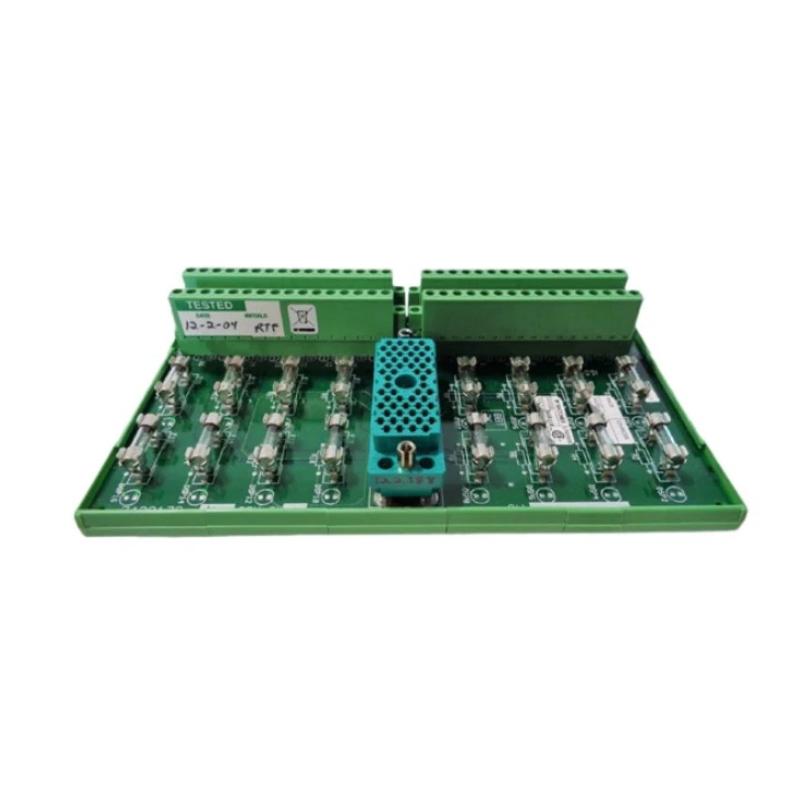

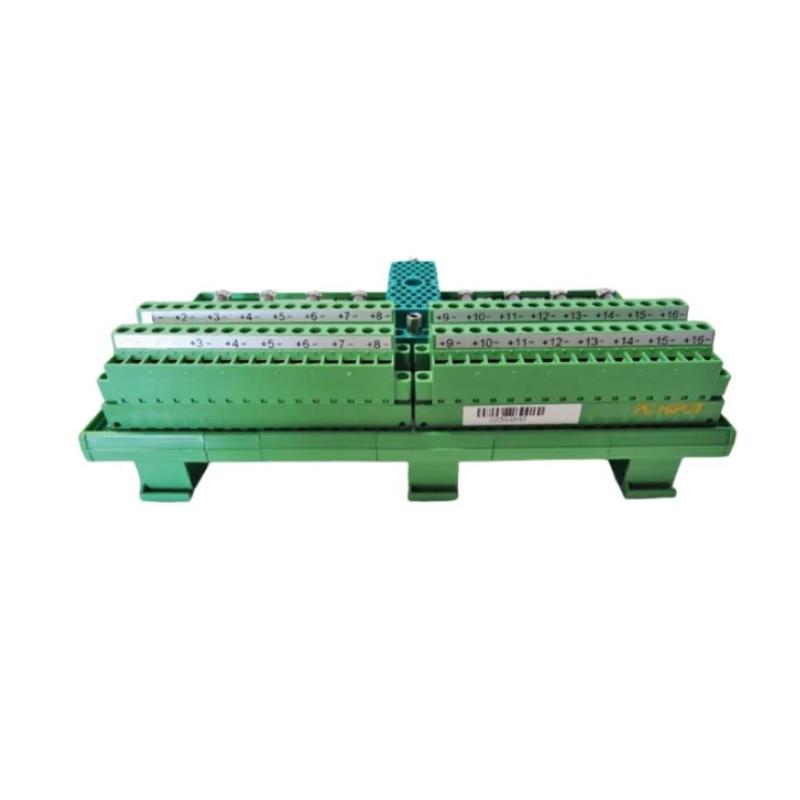

The Triconex 9662-610F is a 16-point digital output termination panel with integrated fuses, designed for Triconex safety instrumented systems (SIS). It provides secure and protected connections for field devices to Triconex controllers, ensuring safe and reliable operation in industrial automation applications.
General Information
Part Number: 9662-610F
Manufacturer: Triconex
Brand / Country of Origin: Triconex / USA
Type: Digital Output Termination Panel with Fuse
Compatibility: Triconex 24 VDC digital output modules
Panel Type: Fused commoned
Number of Points: 16
Mounting: Panel-mounted
Power Specifications
Input Voltage: 24 V DC
Maximum Total Current: 16 A
Load Terminals: 16
Fuse Protection: Integrated for each output terminal
Communication & Interface
Interface: Direct connection to Triconex digital output modules
Signal Type: Digital output
Isolation: Internal panel design ensures safe operation
Environmental
Operating Temperature: 0 °C to 60 °C
Storage Temperature: –40 °C to 85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Dimensions & Weight
Dimensions (L × W × H): 127 × 114 × 108 mm (approx.)
Weight: 1.1 kg (approx.)
