Overview

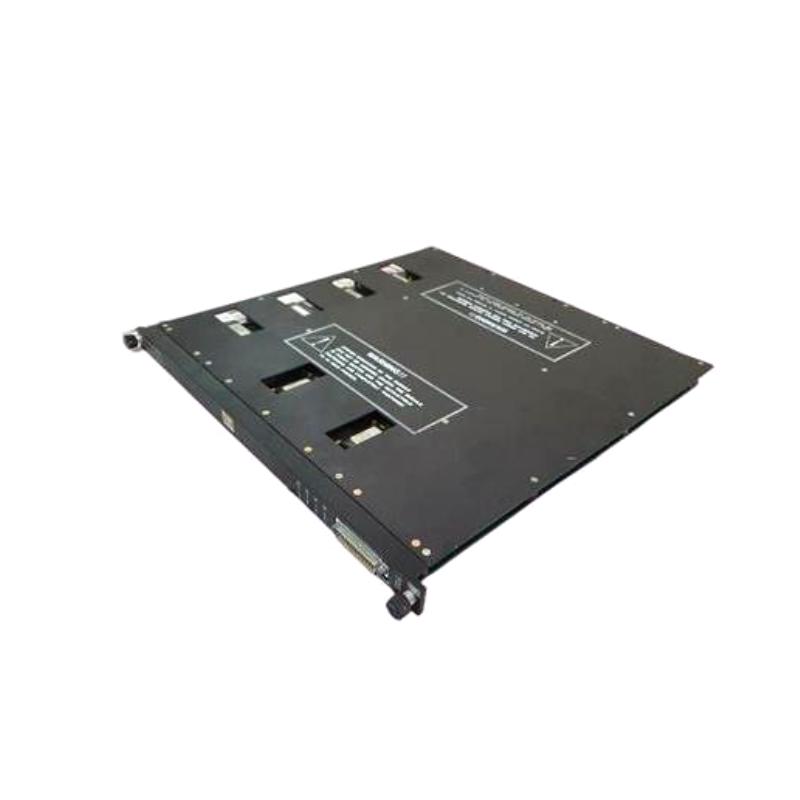

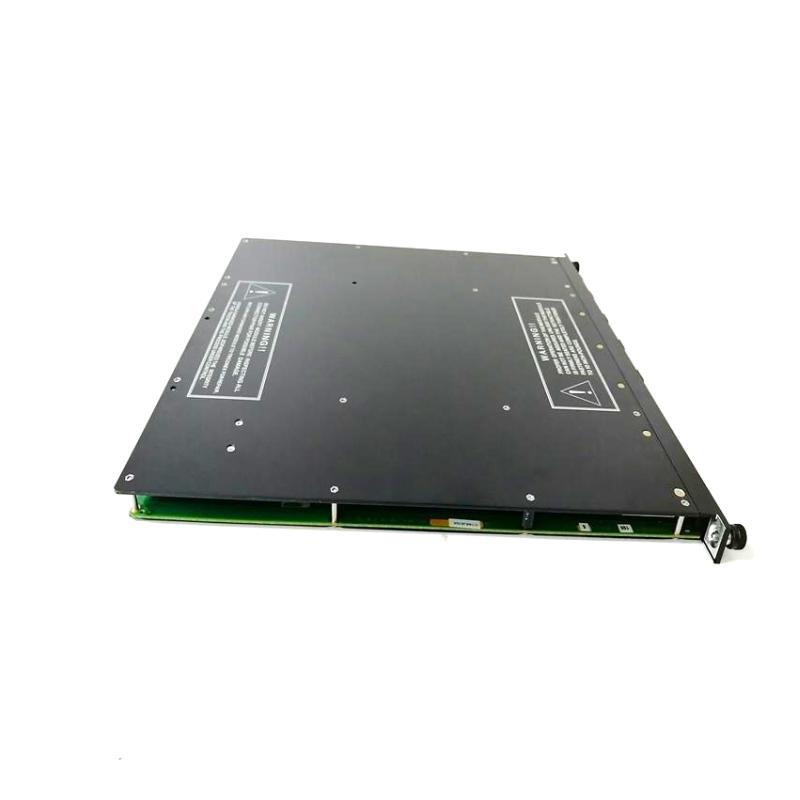

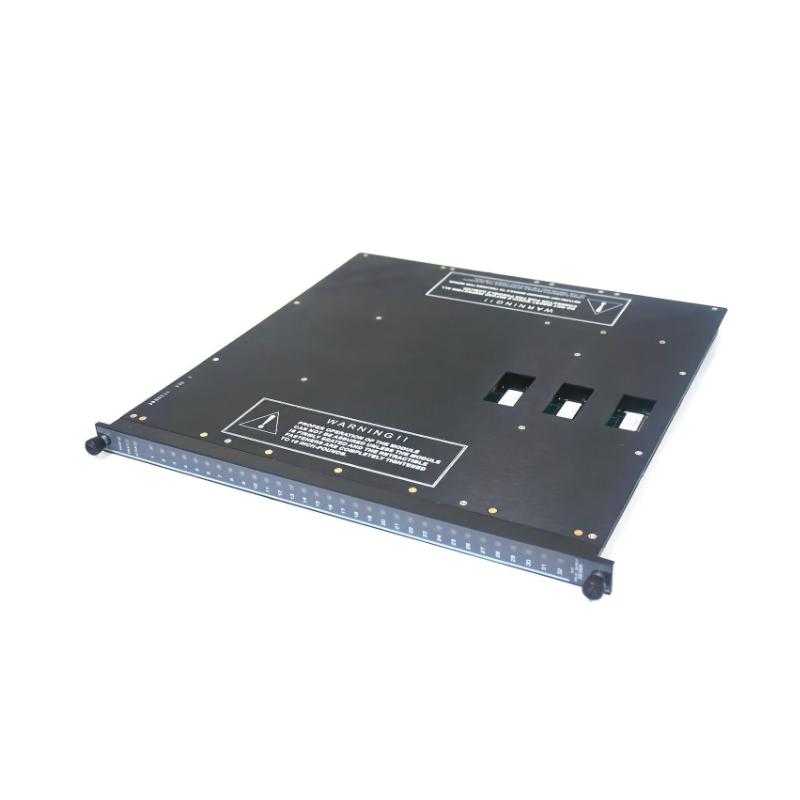

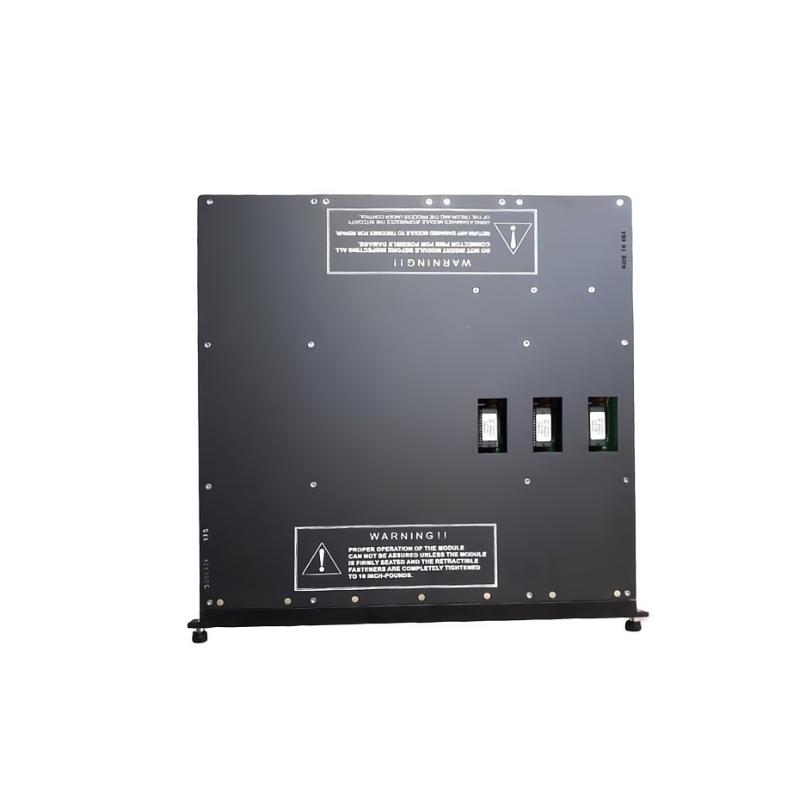

The Triconex 3636R is a relay output module designed for use in industrial control and safety systems. It provides 32 normally‑open relay channels for switching loads, with built‑in diagnostics for monitoring contact health and field wiring integrity.

General Information
Part Number: 3636R
Manufacturer: Triconex (Schneider Electric)
Brand / Country of Origin: Triconex / USA
Type: Relay Output Module (32 channels, non‑triplicated)
Mounting: Plug‑in card within Triconex I/O chassis
Technology: Relay‑based outputs with loop‑back verification and module diagnostics

Power Specifications
Maximum Contact Voltage: 125 V AC or DC
Maximum Load Current: 2 A per channel
Minimum Permissible Load: 10 mA at 5 V DC
Isolation: 1,500 V DC between contact points and logic circuits

Communication & Interface
Interface: Connection to the I/O backplane of the Triconex system
Outputs: 32 individual relay contacts (non-commoned)
Diagnostics: Each channel includes status LED, open/short detection and module fault output
Redundancy Support: Hot‑spare module compatible for increased availability

Environmental
Operating Temperature: −40 °C to +70 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet and safety‑instrumented systems

Dimensions & Weight
Dimensions (L × W × H): Approx. 130 × 130 × 30 mm
Weight: Approx. 0.5 kg
