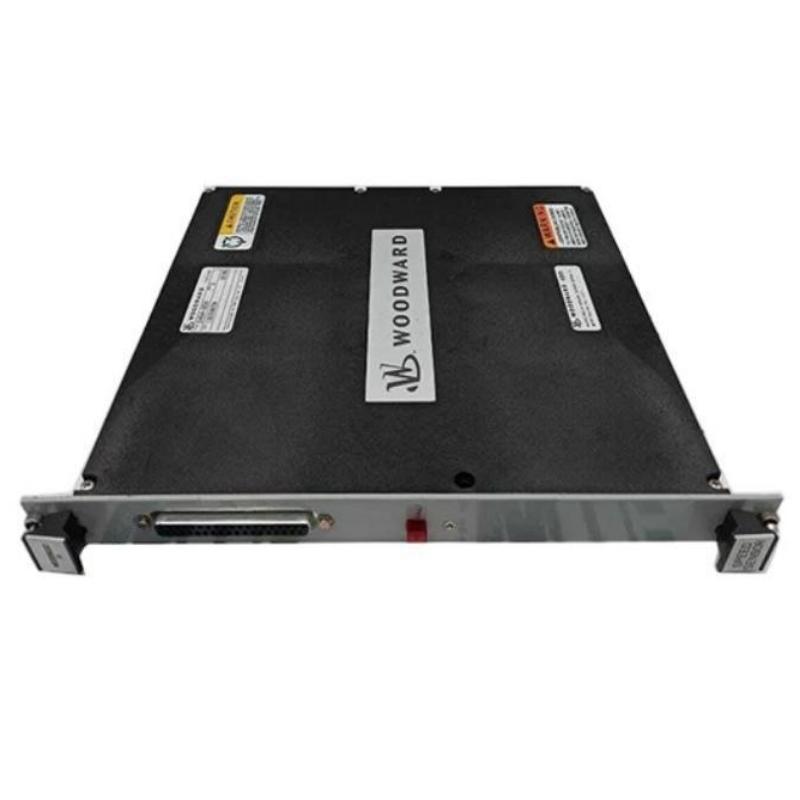

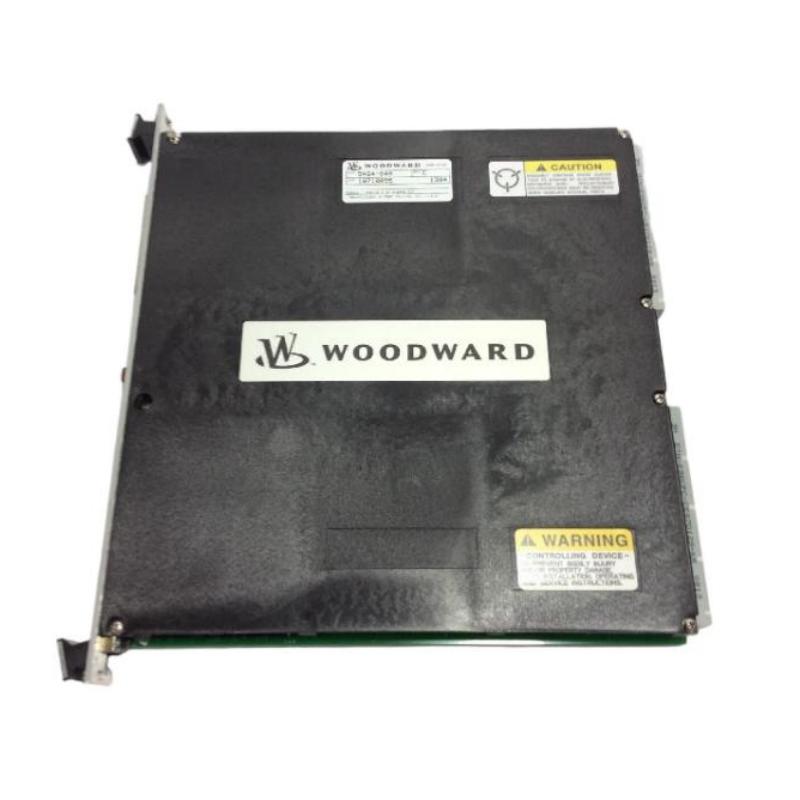

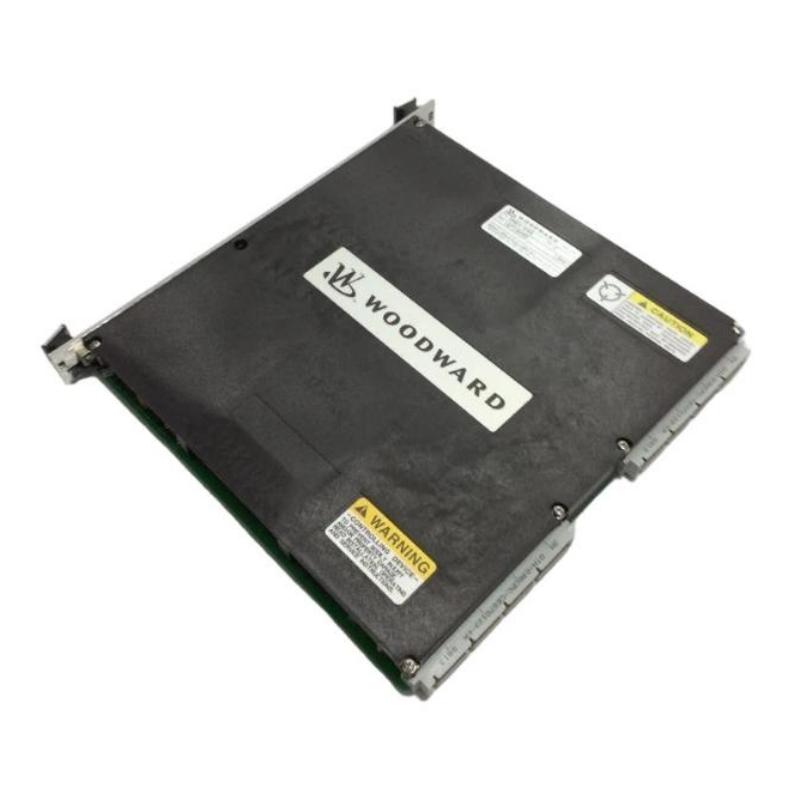

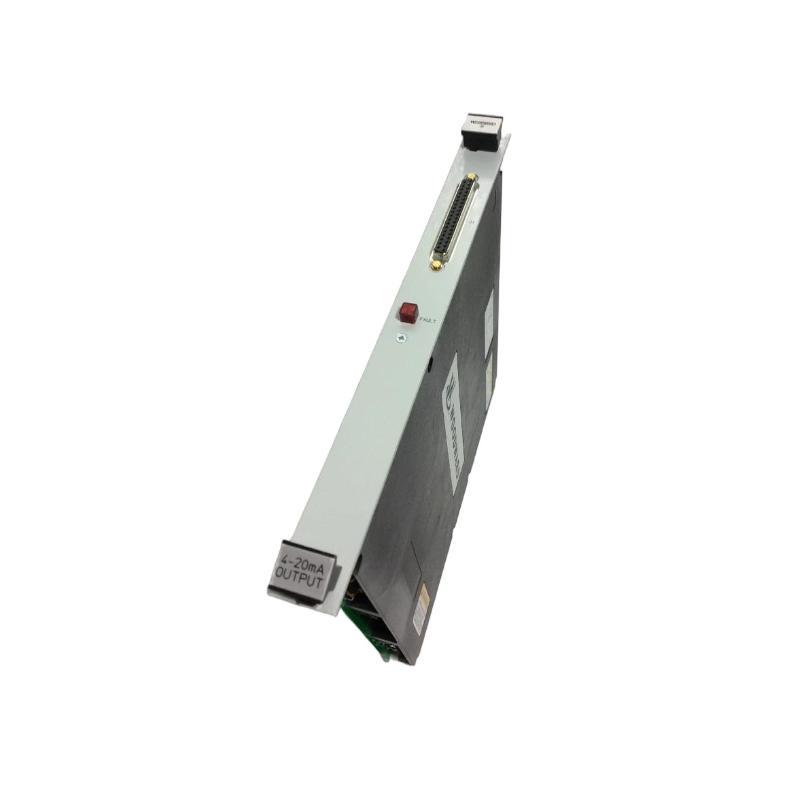

Woodward 5464-648 Analog 8-Channel Output Module

Overview

The Woodward 5464-648 is an analog 8-channel output module designed for industrial control and automation systems. It provides multiple analog output channels for sending control signals to compatible actuators, instruments, and other field devices.

General Information

Part Number: 5464-648

Manufacturer: Woodward

Series: 5400 Series

Type: Analog 8-Channel Output Module

Application: Industrial control and automation systems

Function: Analog signal output and control

Channels: 8 analog output channels

Installation: Control cabinet or rack-mounted system

Brand: Woodward

Country of Origin: USA

Power Specifications

Module Type: Analog output module

Power Supply: System-dependent

Output Channels: 8

Output Function: Provides analog control signals to connected field devices

Signal Processing: Converts control commands into analog output signals

Protection: Designed for reliable operation in industrial control environments

Communication & Interface

Output Interface: 8-channel analog output interface

Signal Function: Sends proportional control signals to external devices

System Interface: Connects with compatible control system components

Field Connection: Interfaces with actuators, instruments, and other analog devices

Connection: Module and backplane interfaces

Environmental

Operating Environment: Industrial automation and control applications

Installation Environment: Indoor control cabinets and equipment racks

Operating Temperature: Suitable for standard industrial operating conditions

Humidity: Suitable for typical industrial environments

Protection: Intended for installation in a properly protected control system

Dimensions & Weight

Dimensions (L × W × H): 160 × 155 × 20 mm

Weight: 0.91 kg
