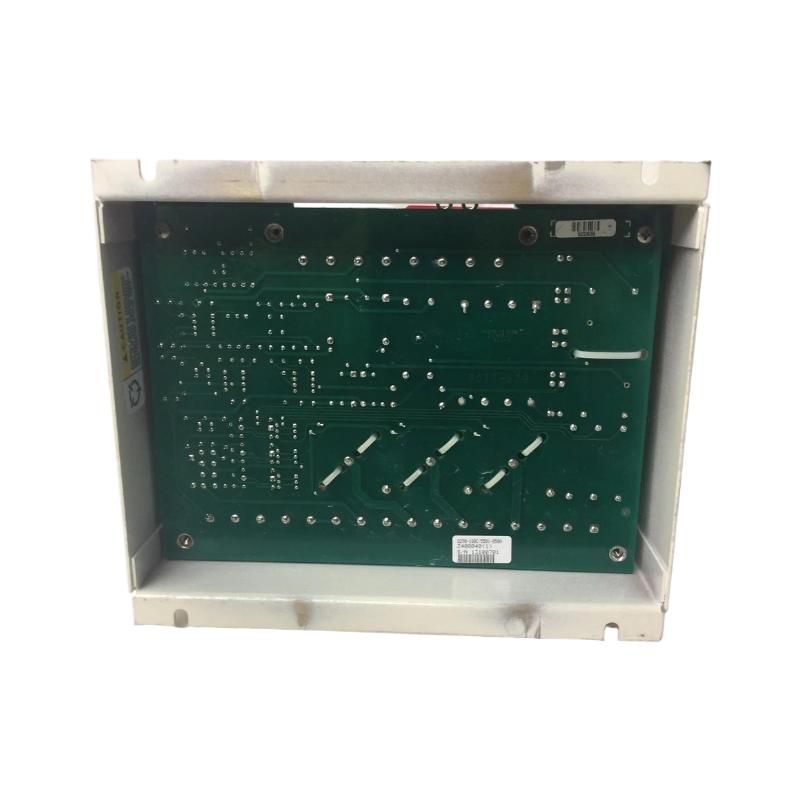

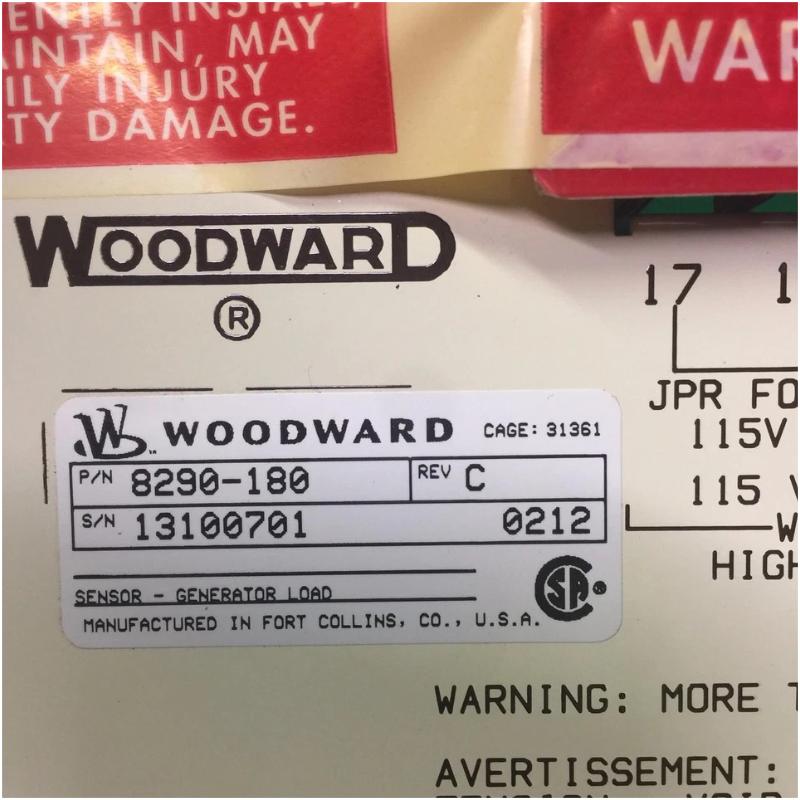

Woodward 8290-180 | Actuator Control Module Quality Selection

Overview

The Woodward 8290-180 is an actuator control module used in industrial engines, turbines, and compressor systems. It delivers precise and stable actuation signals to control valves, fuel actuators, or other field devices. The module ensures reliable performance in demanding industrial environments and supports continuous operation in critical process control systems.

General Information

Brand: Woodward
Country of Origin: USA
Product Type: Actuator Control Module
Series: Woodward 8290 Series
Function: Provides precise drive signals for actuators and controlled devices
Applications: Gas turbines, steam turbines, engine automation, and industrial process control
Mounting: Rack or panel installation within control cabinets

Power Specifications

Input Voltage: 24 VDC
Power Consumption: Low-power design for continuous operation
Protection: Integrated overvoltage, reverse polarity, and thermal safeguards
Signal Integrity: Filtered output to ensure smooth and accurate actuator response

Communication & Interface

System Interface: Connects directly to Woodward control systems
Input Signals: Accepts digital or analog commands from controllers
Output Signals: Drives actuators or control valves with regulated signals
Diagnostics: LED indicators for module status, health, and fault conditions

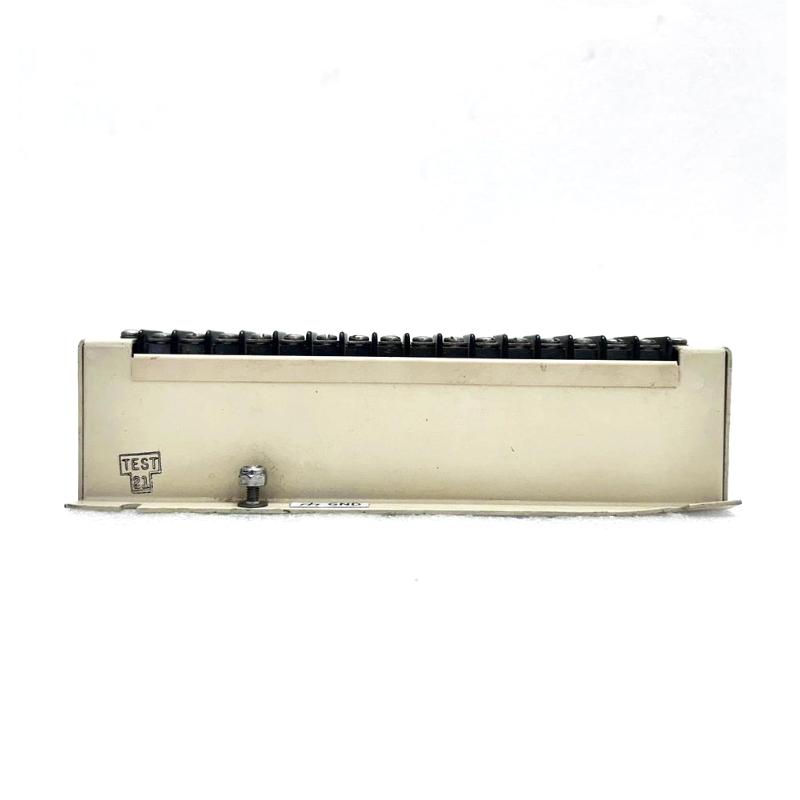

Connectivity: Industrial terminal connections for secure wiring

Environmental

Operating Temperature: −20°C to +70°C
Storage Temperature: −40°C to +85°C
Humidity: Up to 95% RH, non-condensing
Durability: Industrial-grade construction suitable for high-vibration, high-temperature environments
Compliance: Designed for continuous operation in critical process systems

Dimensions & Weight

Dimensions: 160  × 100  × 40 mm
Weight: Approximately 0.45 kg

Brand-new authentic inventory, always ready, and supported by 24-hour customer care.
