Overview

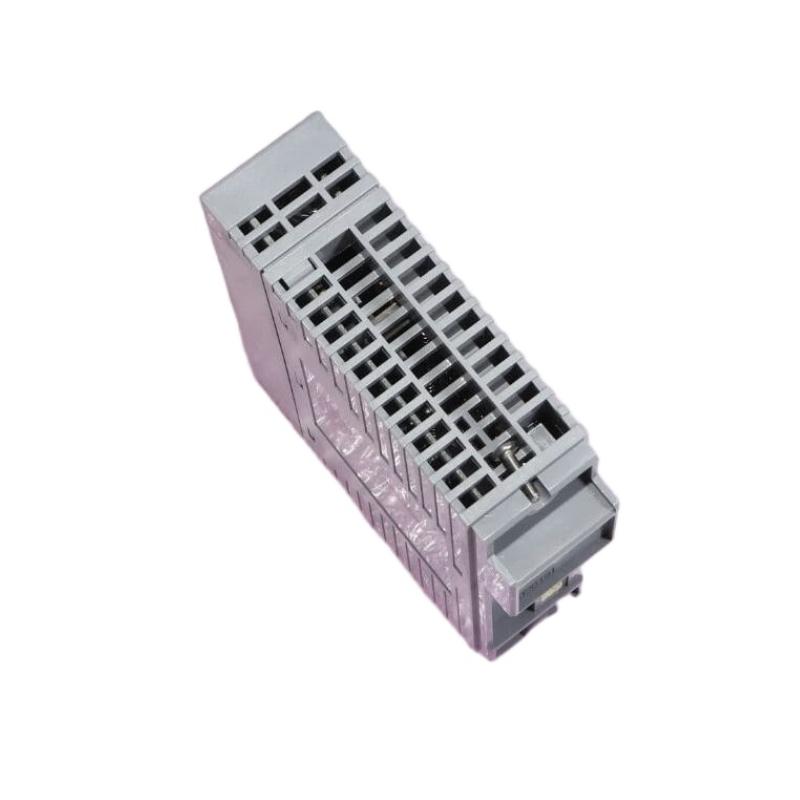

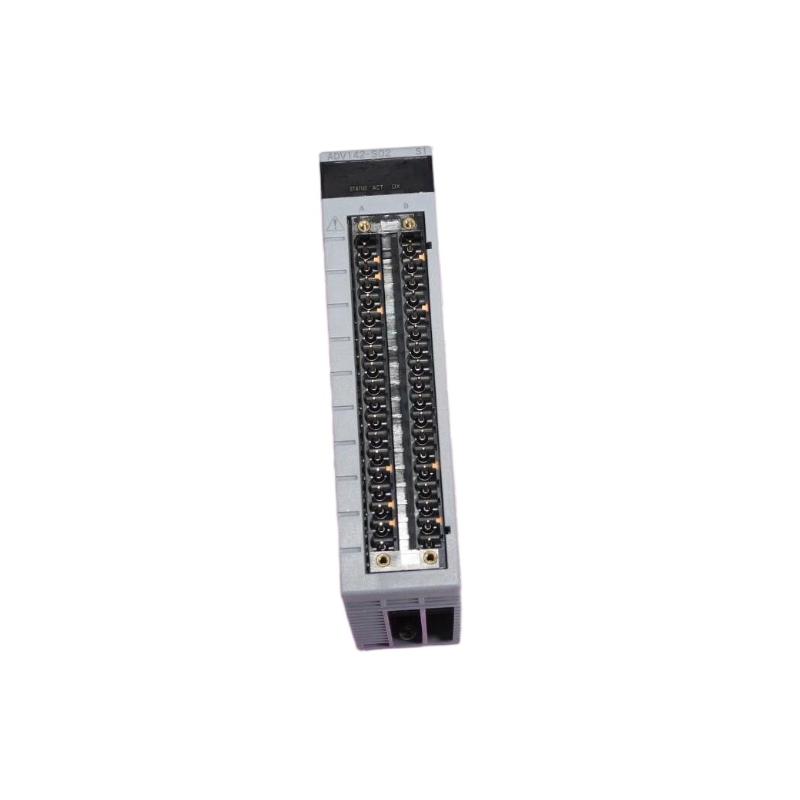

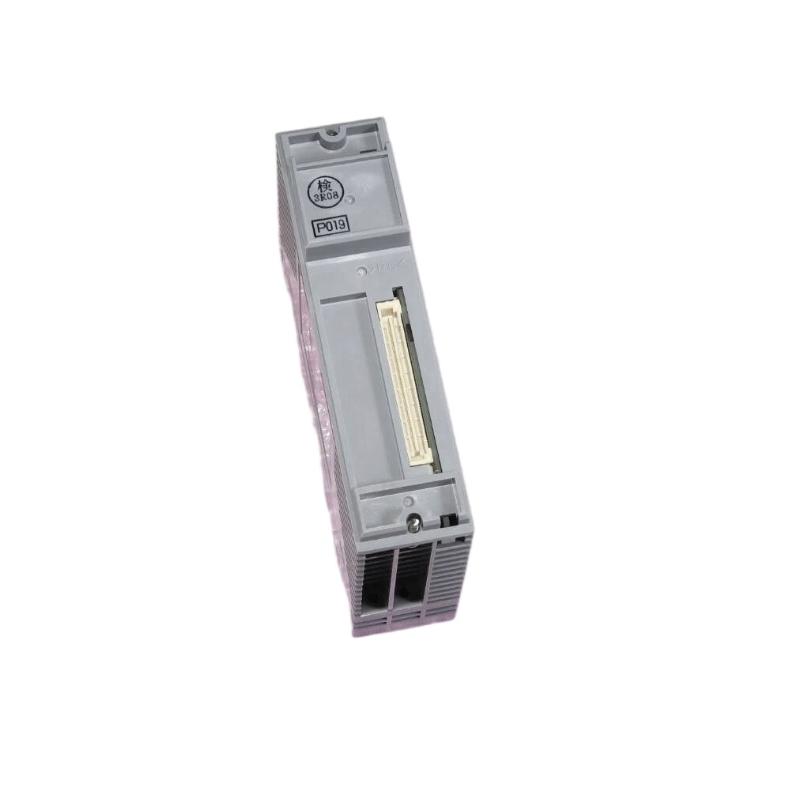

The Yokogawa ADV142-S02 is a high-performance analog output module designed for use in CENTUM distributed control systems. It provides reliable and accurate analog signal output for various industrial processes, enabling precise control of actuators, valves, and indicators across critical automation environments.
General Information
Model: ADV142-S02
Manufacturer: Yokogawa
Product Type: Analog Output Module
Country of Origin: Japan
Application: Analog signal output for process automation systems
Power Specifications
Power Supply: Provided via system backplane
Power Consumption: Low power profile, optimized for efficient system use
Output Signal: Supports current-based analog outputs (e.g., 4–20 mA)
Isolation: Galvanically isolated channels to reduce noise and interference
Communication & Interface
System Compatibility: Fully compatible with Yokogawa CENTUM series DCS
Termination Type: Detachable terminal block for simplified wiring
No. of Channels: Multi-channel analog output capability
System Monitoring: Equipped with self-diagnostic features for system health monitoring
Environmental
Operating Temperature: 0 to +55°C
Storage Temperature: −20 to +70°C
Humidity: 5% to 95% RH, non-condensing
Installation: Fits into standard Yokogawa I/O base units
Dimensions & Weight
Dimensions: 107.5 × 130 × 32.8 mm
Weight: 0.3 kg
