Overview

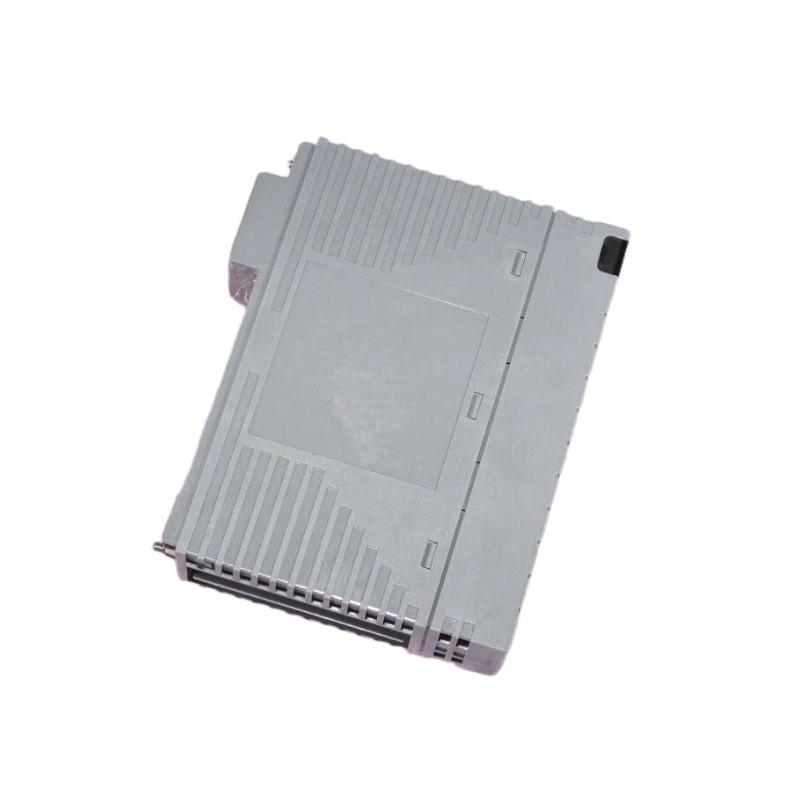

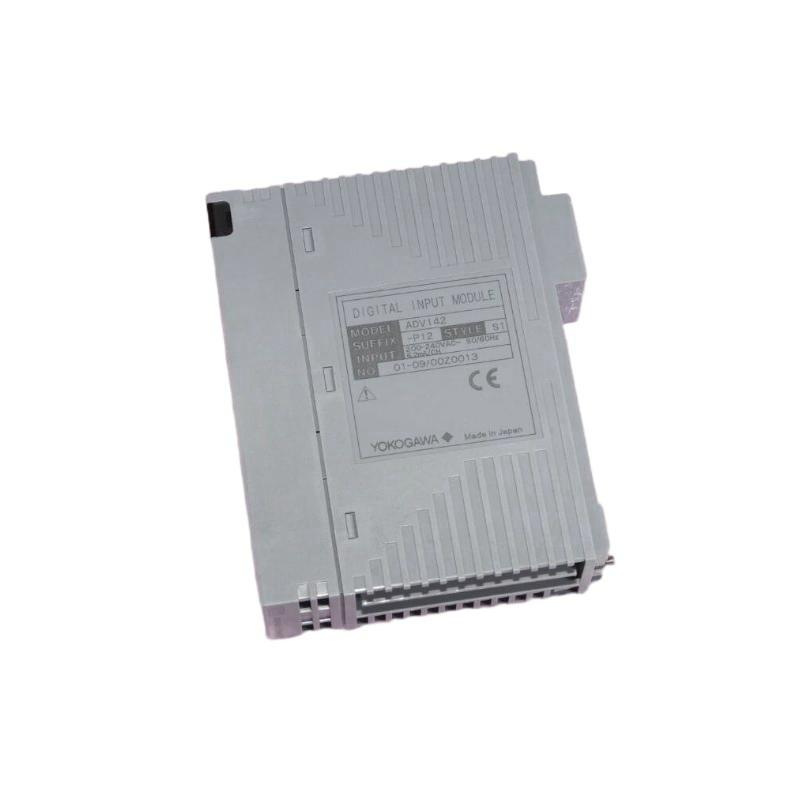

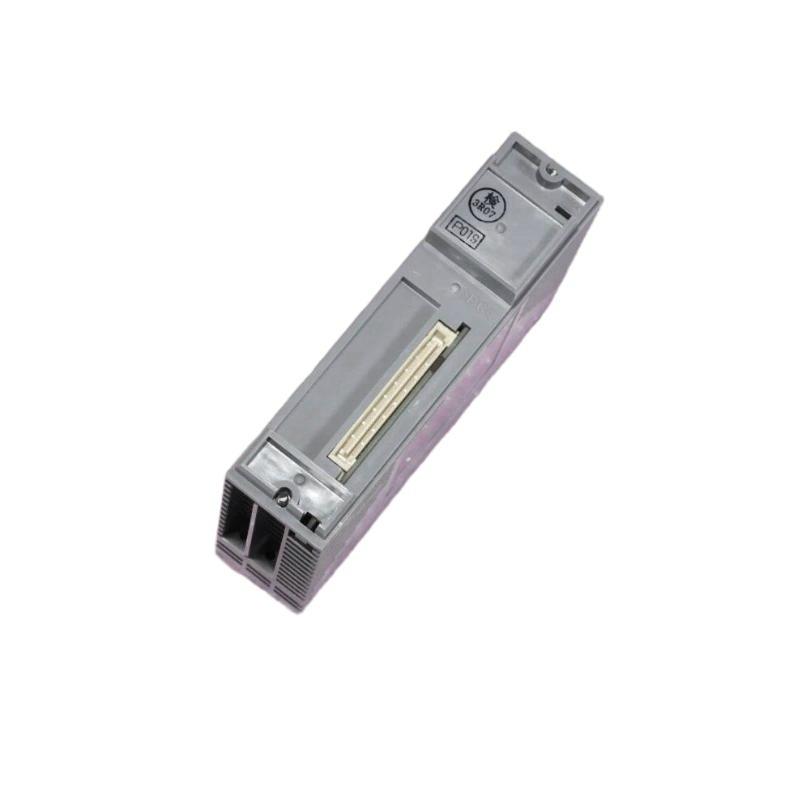

The Yokogawa ADV142-P12 is an analog output module developed for precise signal transmission in industrial control systems. It provides high-accuracy analog output to field devices like actuators and controllers, ensuring dependable performance in process automation environments.
General Information
Model: ADV142-P12
Manufacturer: Yokogawa
Type: Analog Output Module
Application: Analog output for distributed control systems (DCS)
Power Specifications
Supply Voltage: 24 V DC (via control system backplane)
Power Consumption: Engineered for low power draw
Isolation: Galvanically isolated channels to enhance signal reliability
Communication & Interface
Output Signal: Supports industry-standard analog outputs such as 4–20 mA
Channel Configuration: Multi-channel design for flexible deployment

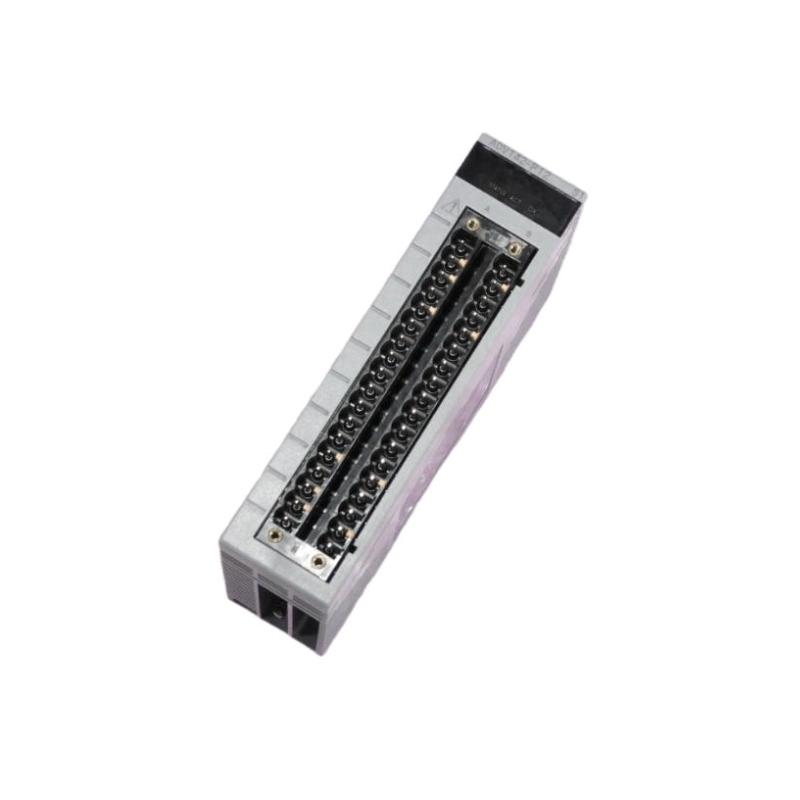

Connection Interface: Terminal block for easy wiring
Compatibility: Integrates with Yokogawa CENTUM series and field control stations
Environmental
Operating Temperature: 0°C to +55°C
Humidity: 5% to 95% RH (non-condensing)
Installation: Suitable for mounting in an industrial control cabinet or rack
Dimensions & Weight
Dimensions: 107.5 × 130 × 32.8 mm
Weight: 0.3 kg
