Overview

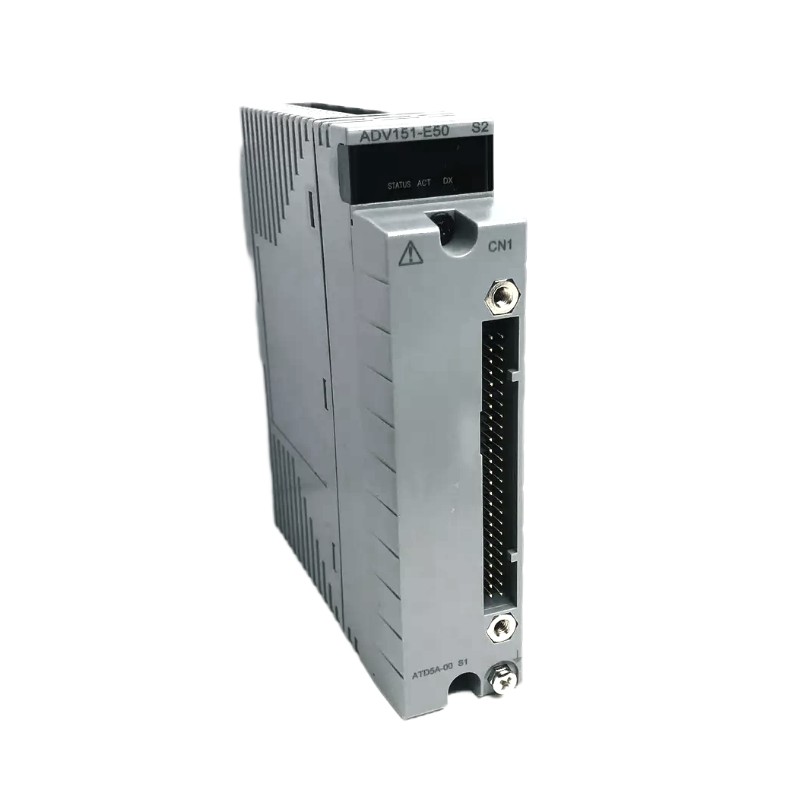

The Yokogawa ADV151-E50 is a digital output module engineered for use in Yokogawa’s distributed control systems (DCS). It delivers reliable switching control for digital signals to external devices, making it ideal for automation applications requiring precise and stable output control.
General Information
Part Number: ADV151-E50
Brand / Country of Origin: Yokogawa / Japan
Series: ADV Series
Type: Digital Output Module
Mounting: Installed in a compatible I/O rack
Technology: High-speed digital signal output with electrical isolation
Power Specifications
Supply Voltage: Provided via system backplane
Power Consumption: Low power for continuous operation
Output Channels: Supports multiple digital output points
Protection: Overcurrent and short-circuit protection
Indicators: LED indicators for power and signal status
Communication & Interface
Output Type: Digital output to field devices (e.g., relays, solenoids)
Control Role: Provides binary control signals to external equipment
Configuration: Configured via system software tools
Diagnostics: Status monitoring and fault detection
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 90% RH, non-condensing
Protection Rating: Suitable for industrial control environments
Dimensions & Weight
Dimensions (L × W × H): 107.5 × 130 × 32.8 mm
Weight: ~ 0.3 kg
