Overview

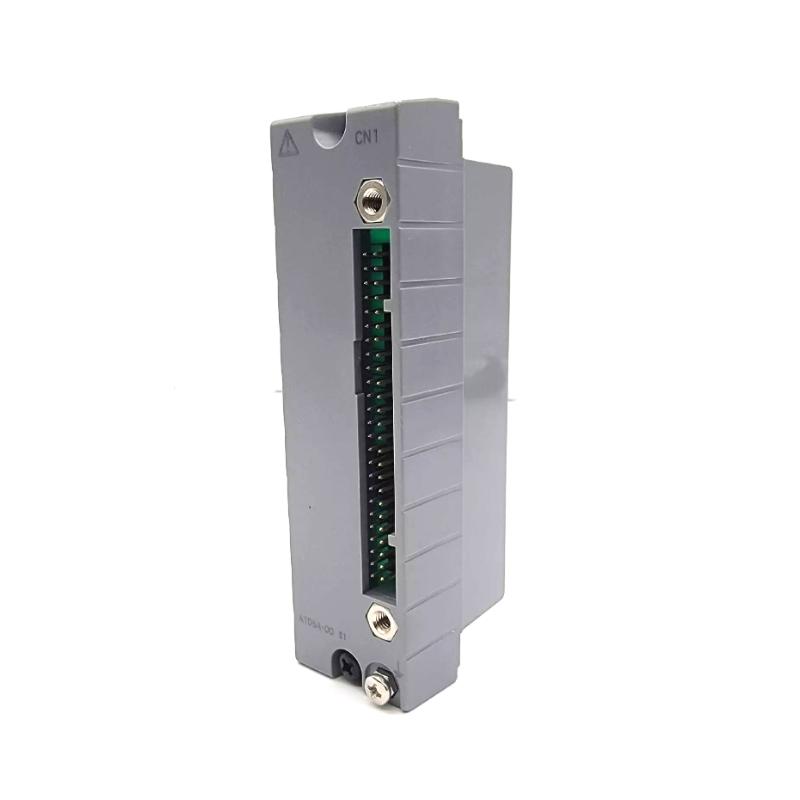

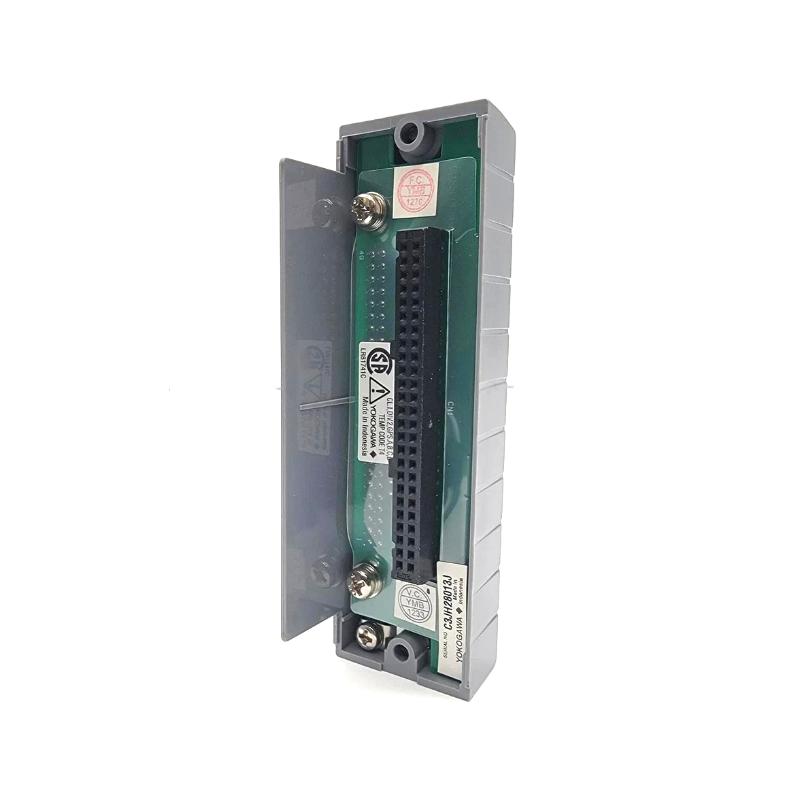

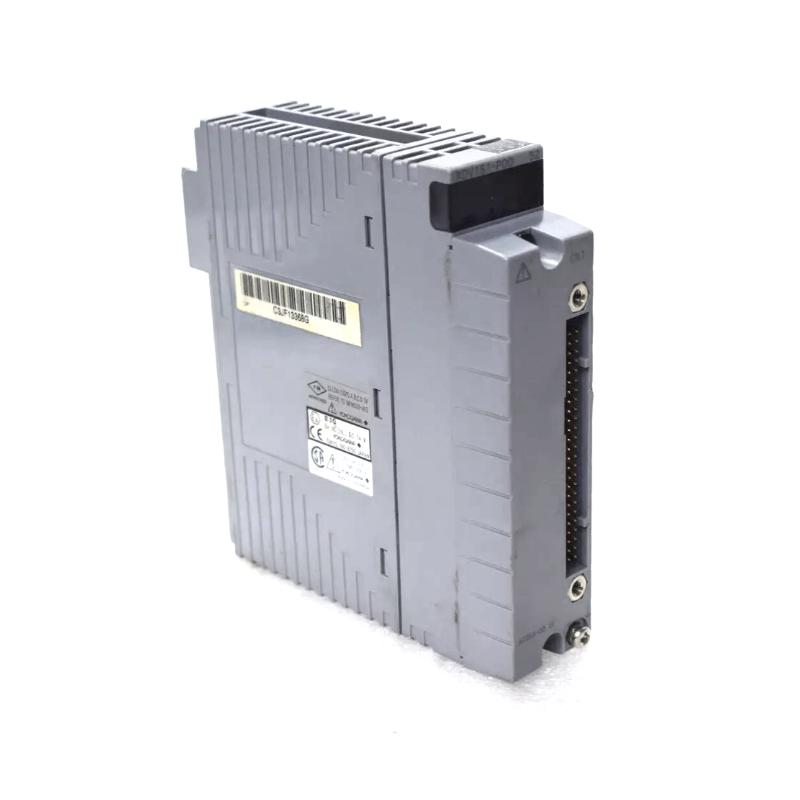

The Yokogawa ADV151-P00 S2 ATD5A-00 is a digital output module designed for use in Yokogawa’s control systems. It delivers reliable switching of digital signals to external devices such as relays and actuators, and is suitable for robust industrial automation applications requiring stable binary output control.
General Information
Part Number: ADV151-P00 S2 ATD5A-00
Brand / Country of Origin: Yokogawa / Japan
Series: ADV Series
Type: Digital Output Module
Mounting: Fits into system I/O rack or control cabinet slot
Technology: Isolated digital output with reliable switching control
Power Specifications
Supply Voltage: Powered via DCS system backplane
Power Consumption: Efficient low-power design
Output Channels: Supports multiple digital outputs
Protection: Integrates overload and short-circuit protection
Indicators: LED indicators for channel and system status
Communication & Interface
Output Type: Digital output signals for external actuation
Control Role: Drives binary commands for field-level devices
Configuration: System-configurable via engineering tools
Diagnostics: Built-in status and health monitoring functions
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 90% RH, non-condensing
Protection Rating: Suitable for industrial control-level installation
Dimensions & Weight
Dimensions (L × W × H): 107.5 × 130 × 32.8 mm
Weight: ~ 0.3 kg
