Overview

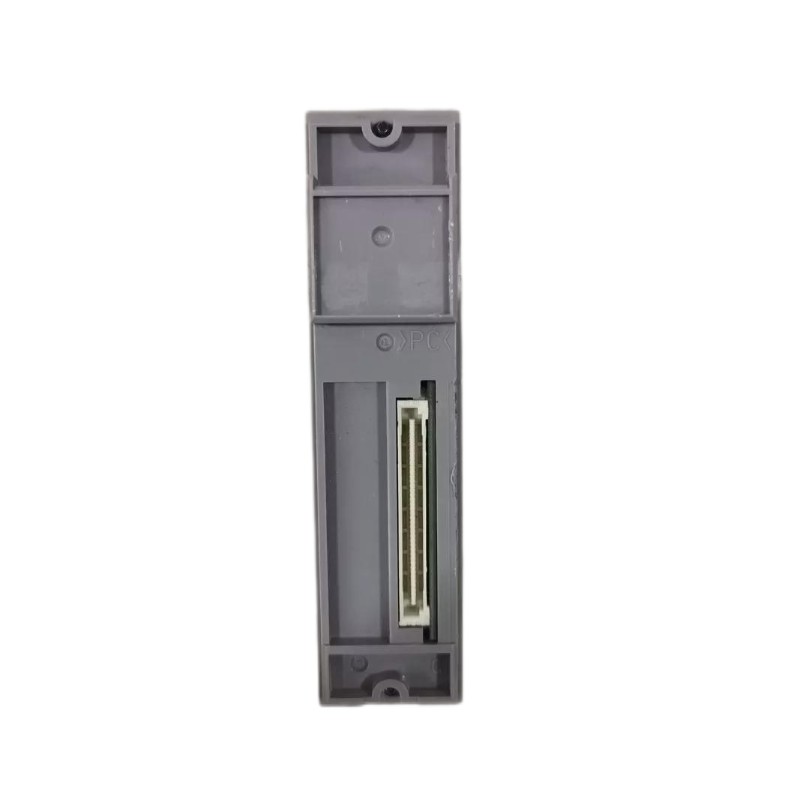

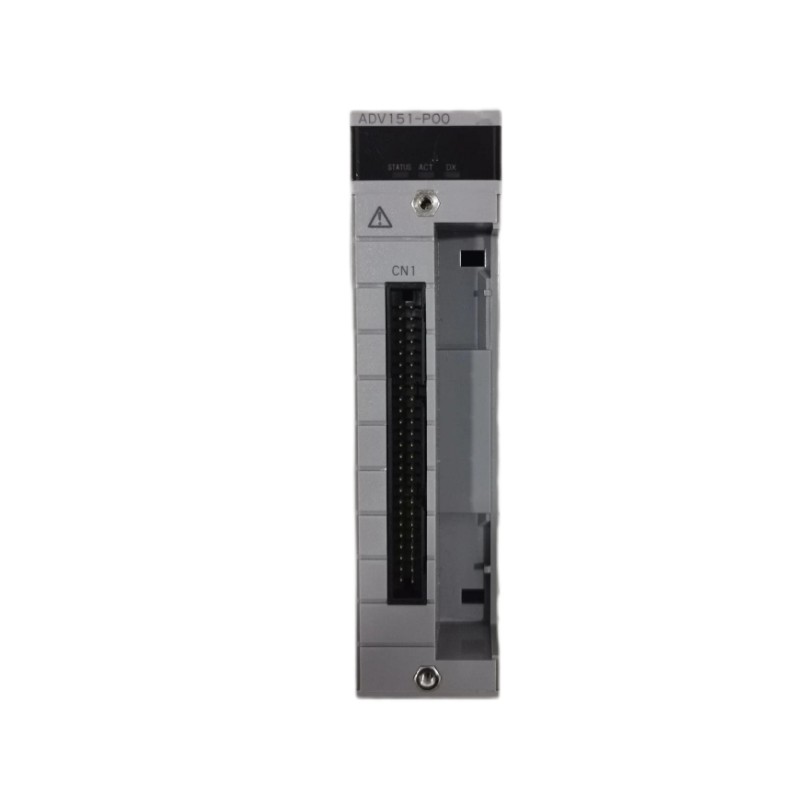

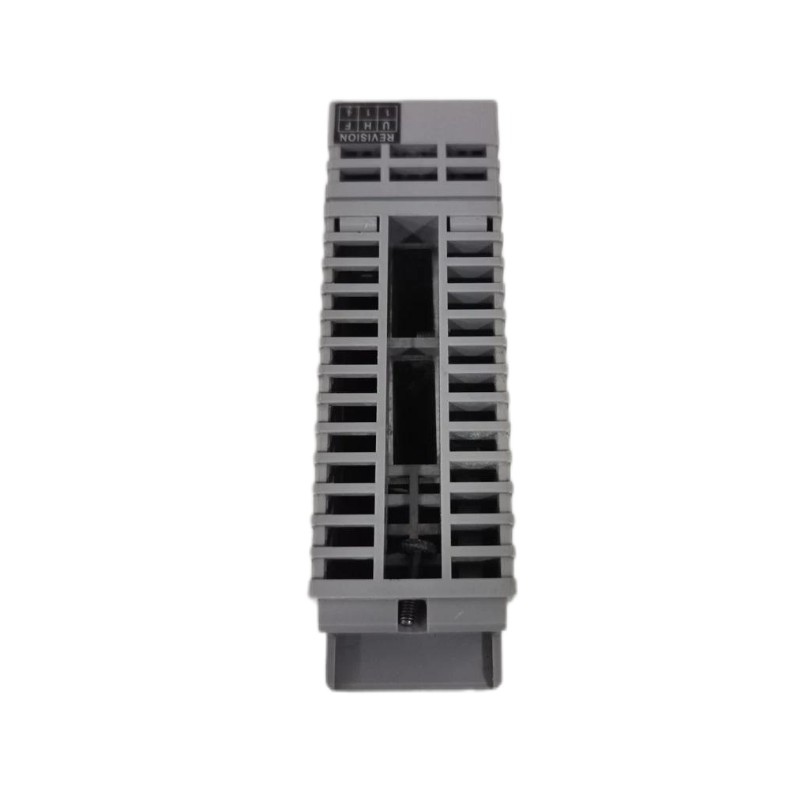

The Yokogawa ADV151-P00/D5A00 is a digital output module used in Yokogawa's distributed control systems. It offers stable and reliable digital switching capabilities to control field devices such as relays, solenoids, and actuators, ensuring efficient operation in diverse industrial automation setups.
General Information
Part Number: ADV151-P00/D5A00
Brand / Country of Origin: Yokogawa / Japan
Series: ADV Series
Type: Digital Output Module
Mounting: Installs in dedicated system I/O rack
Technology: Optimized for isolated and reliable signal switching
Power Specifications
Supply Voltage: Supplied through DCS backplane
Power Consumption: Low power usage for continuous operation
Output Channels: Multiple digital outputs supported
Protection: Short-circuit and overload protection included
Indicators: LEDs for status and output activity monitoring
Communication & Interface
Output Type: Digital control signals to field devices
Control Role: Enables binary output for industrial control systems
Configuration: Supports configuration via system software tools
Diagnostics: Self-monitoring and fault detection features
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 90% RH, non-condensing
Protection Rating: Suitable for controlled industrial environments
Dimensions & Weight
Dimensions (L × W × H): 107.5 × 130 × 32.8 mm
Weight: ~ 0.3 kg
