Overview

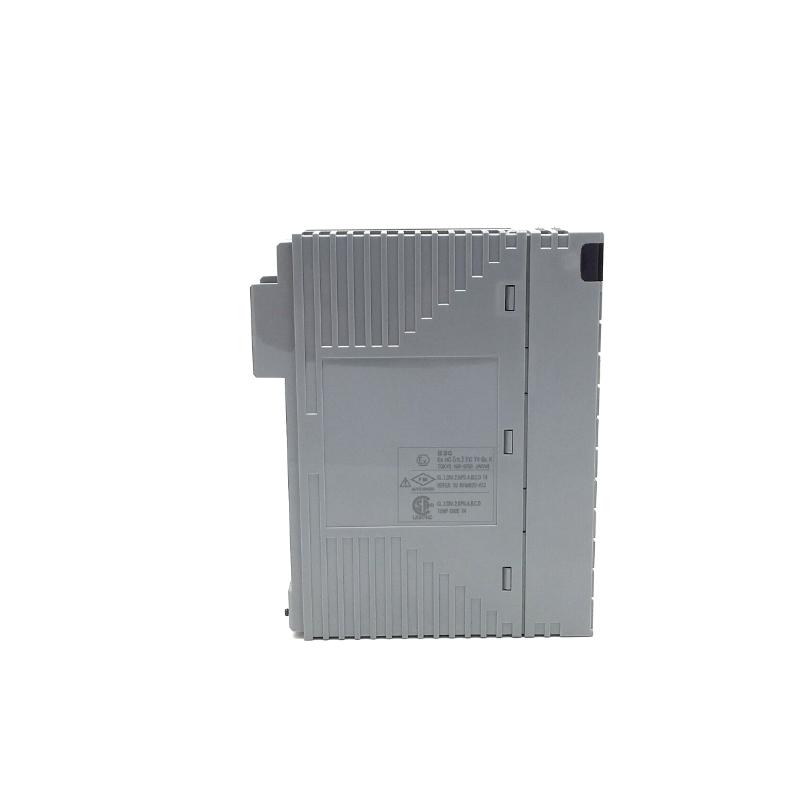

The Yokogawa ADV151-P50 S2 is an analog input module designed for accurate and stable signal acquisition within Yokogawa DCS/PLC control systems. It supports reliable measurement processing for various industrial automation environments.
General Information
Part Number: ADV151-P50 S2
Brand / Country of Origin: Yokogawa / Japan
Manufacturer: Yokogawa Electric Corporation
Series: ADV Series
Type: Analog Input Module
Mounting: Installed on a system baseplate inside the I/O rack
Function: Receives and conditions analog field signals for the controller
Power Specifications
Supply Voltage: Provided through the system backplane
Power Consumption: Low-power design for efficient operation
Input Power Source: Internal I/O power distribution bus
Protection: Built-in isolation and overvoltage protection
Indicators: LED indicators for status and fault display
Communication & Interface
Interface Type: Yokogawa proprietary I/O bus
Signal Processing: Multi-channel analog input conversion and filtering
Diagnostics: Self-monitoring, signal integrity checking, status reporting
Operator Interaction: Front LEDs showing operating and alarm conditions
Environmental
Operating Temperature: Suitable for standard industrial temperature ranges
Humidity: Up to 95% RH, non-condensing
Installation Environment: Installed in a controlled industrial cabinet
Protection Rating: Designed for protected indoor control environments
Dimensions & Weight
Dimensions (L × W × H): 107.5 × 130 × 32.8 mm
Weight: ~0.3 kg
