Overview

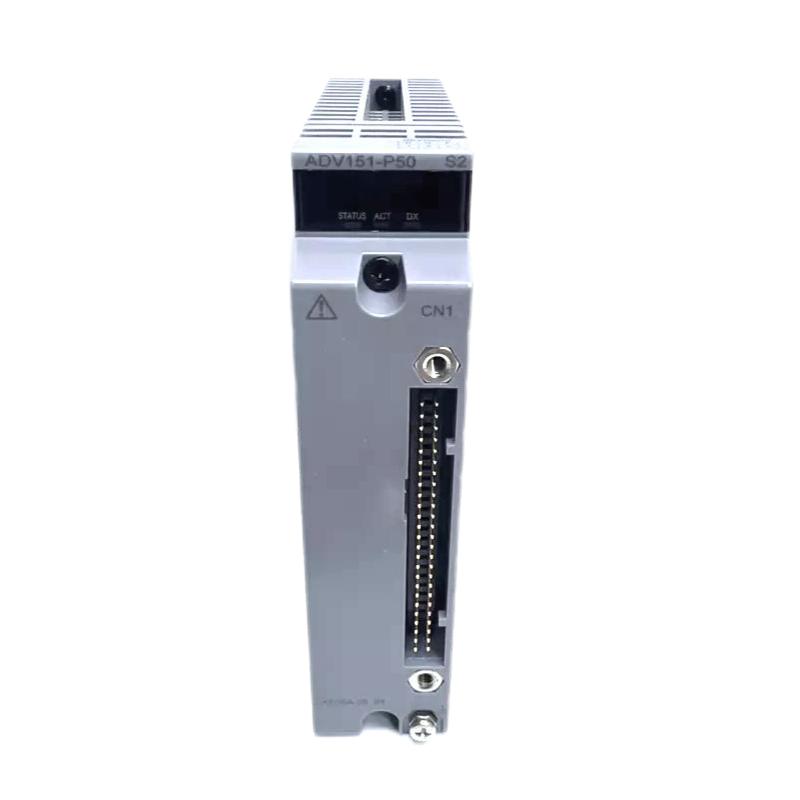

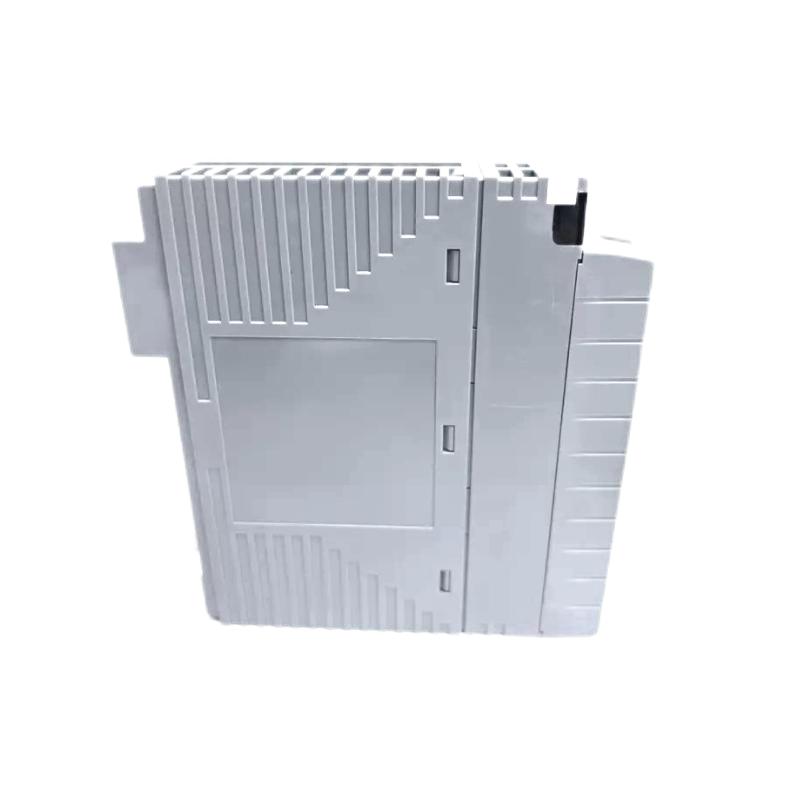

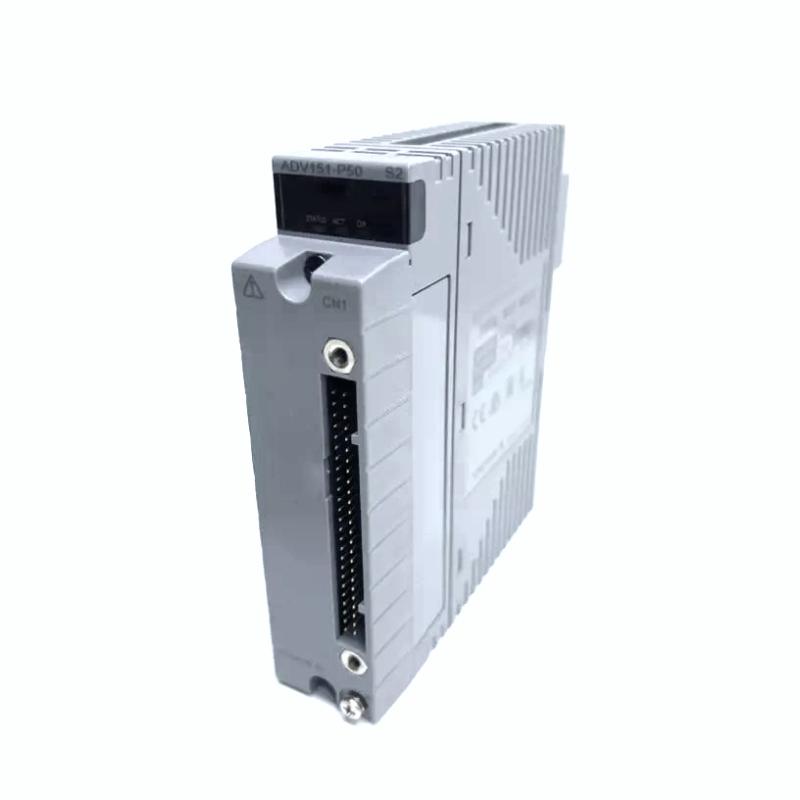

The Yokogawa ADV151-P50/D5A00 is an analog input module engineered for stable and accurate signal acquisition within Yokogawa control systems. It processes field analog inputs and delivers reliable data to the main controller for automation and monitoring tasks.
General Information
Part Number: ADV151-P50/D5A00
Brand / Country of Origin: Yokogawa / Japan
Manufacturer: Yokogawa Electric Corporation
Series: ADV Series
Type: Analog Input Module
Mounting: Rack-mounted on the system baseplate
Function: Converts and conditions analog field signals for the DCS/PLC system
Power Specifications
Supply Voltage: Delivered through the I/O backplane
Power Consumption: Low-power module optimized for efficient operation
Input Power Source: Internal system power bus
Protection: Integrated isolation and overvoltage protection
Indicators: LED lights for module health and signal status
Communication & Interface
Interface Type: Yokogawa proprietary I/O communication bus
Signal Handling: Multi-channel analog signal conversion with filtering
Diagnostics: Supports self-diagnosis, input integrity monitoring, and status reporting
Operator Interaction: LED indicators visible on the front panel
Environmental
Operating Temperature: Suitable for industry-standard ambient conditions
Humidity: Up to 95% RH, non-condensing
Installation Environment: Enclosed industrial control cabinet
Protection Rating: Designed for protected indoor use
Dimensions & Weight
Dimensions (L × W × H): 107.5 × 130 × 32.8 mm
Weight: ~0.3 kg
