Overview

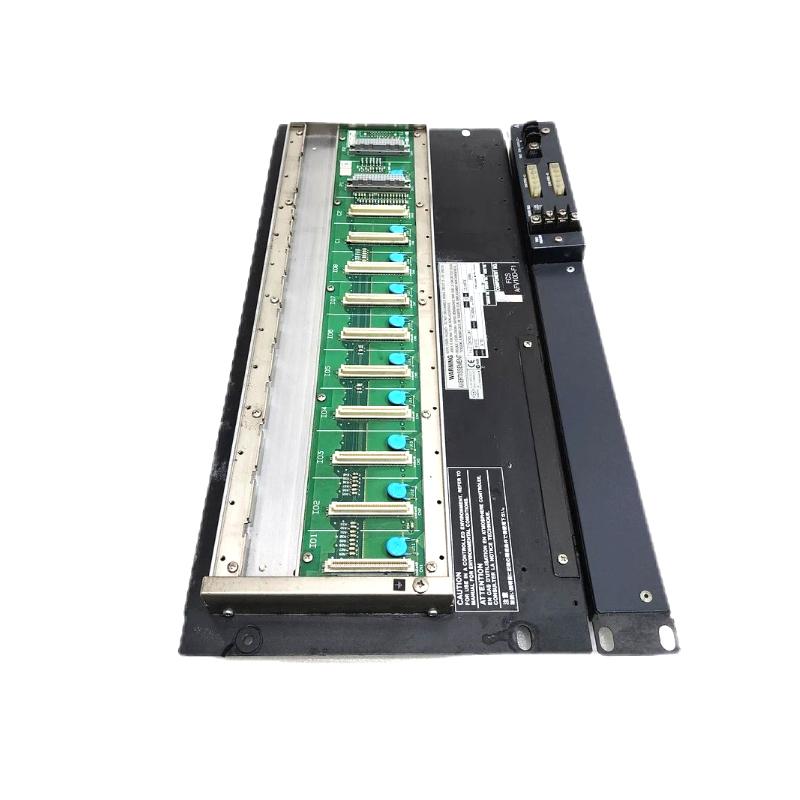

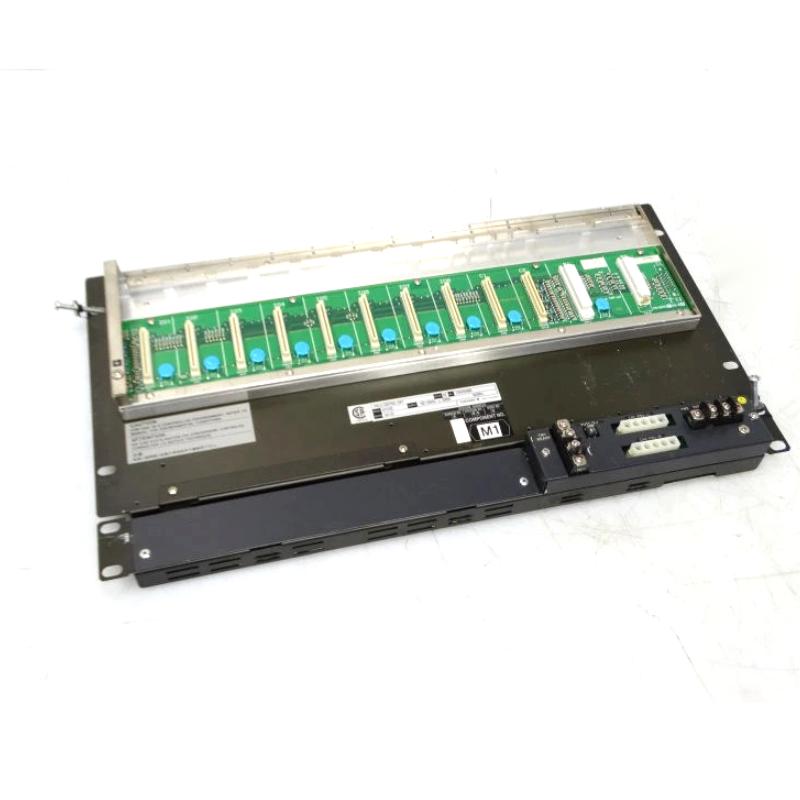

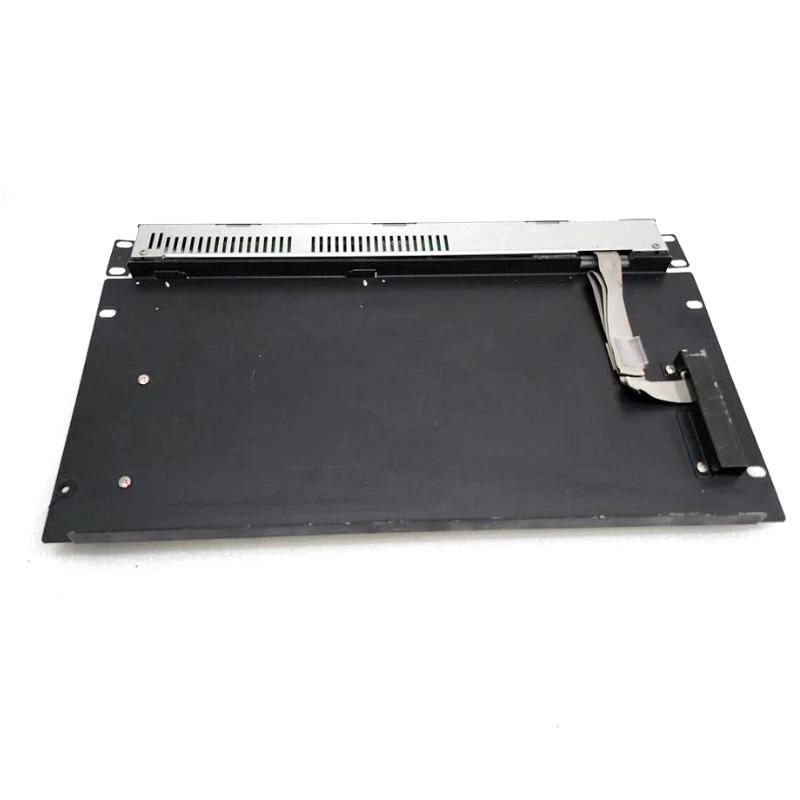

The Yokogawa AFG10D is an industrial-grade processor unit used in control and monitoring systems within the CENTUM and related Yokogawa platforms. It provides stable computational performance, reliable communication handling, and robust hardware architecture suitable for continuous 24/7 operation in demanding industrial plants.
General Information
Part Number: AFG10D
Manufacturer: Yokogawa
Series: AFG
Type: Processor / Control Unit
Mounting: Installed in system rack or cabinet
Function: Executes control logic, manages I/O communication, and handles application processing
Power Specifications
Supply Voltage: Standard system backplane supply
Power Consumption: Low to moderate depending on load
Input Power Source: Provided via rack backplane
Protection: Overcurrent and thermal safeguards integrated
Communication & Interface
System Interface: High-speed backplane communication
External Links: Supports fieldbus and supervisory communication via associated modules
Diagnostics: Status LEDs and internal self-diagnostics
Configuration: Performed through Yokogawa engineering tools
Environmental
Operating Temperature: 0 to +50 °C (typical for system processors)
Humidity: 10–90% RH, non-condensing
Installation: Requires clean, controlled industrial cabinet environment
Dimensions & Weight
Dimensions (H × W × D): 207 × 265.9 × 482.6 mm
Weight: ~ 8 kg
