Overview

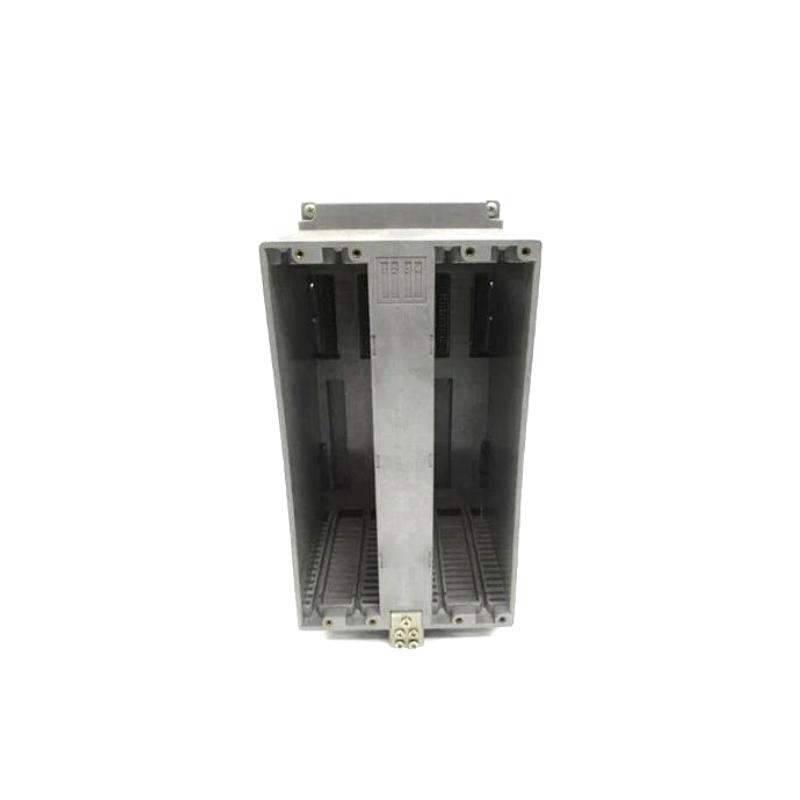

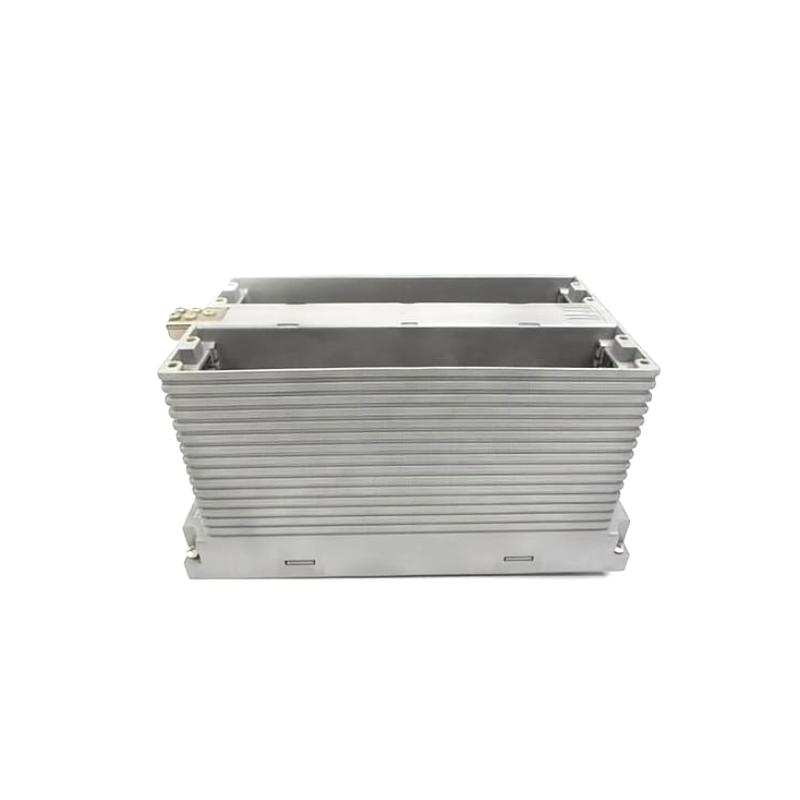

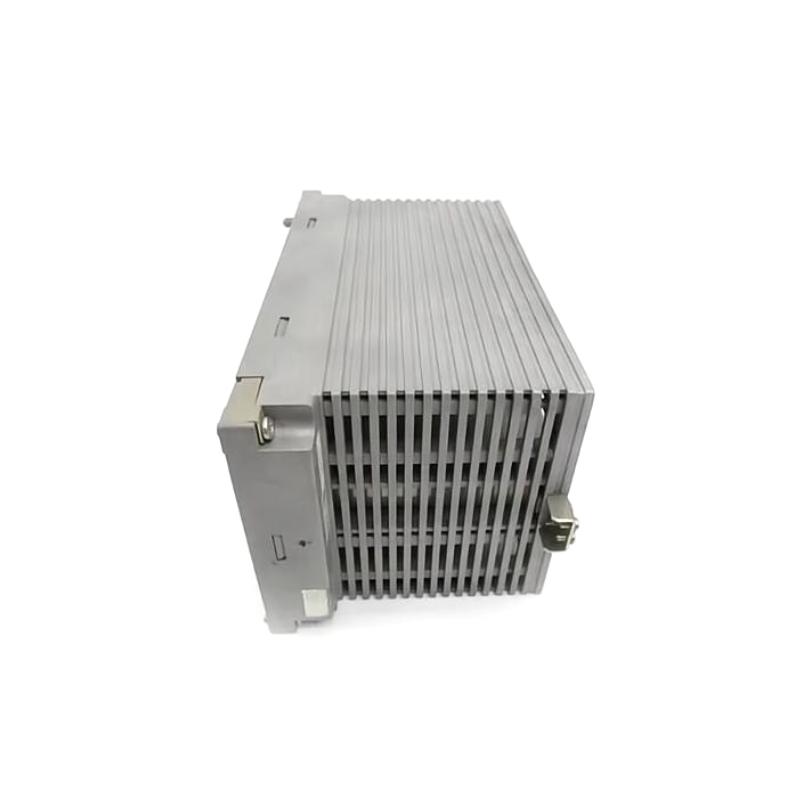

The Yokogawa AFS30D-H4113 is a high-performance field control unit (FCU) used in CENTUM VP and RIO control systems. It offers advanced processing capability, robust system diagnostics, and integrated I/O communication for continuous industrial control environments.
General Information
Part Number: AFS30D-H4113
Manufacturer: Yokogawa
Country of Origin: Japan
Series: AFS / Field Control Station
Type: Field Control Unit
Mounting: Cabinet-mount installation in control systems
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Estimated 300 VA, depending on system load
Protection: Over-current protection and system-level voltage regulation
Communication & Interface
Bus Support: V-net, RIO communication protocols
Diagnostics: On-board self-monitoring, memory integrity check, watchdog timer
Reset Features: Supports both hardware and software reset
Processing & Memory
Function: Executes control logic, sequences, safety routines, and I/O handling
Memory: Includes non-volatile memory with battery-backed retention
Environmental
Operating Temperature: 0 to +50 °C
Humidity: 10–90% RH, non-condensing
Protection Rating: IP20 (requires installation in ventilated cabinet)
Dimensions & Weight
Dimensions (L × W × H): 207 × 265.9 × 482.6 mm
Weight: ~ 8 kg
