Overview

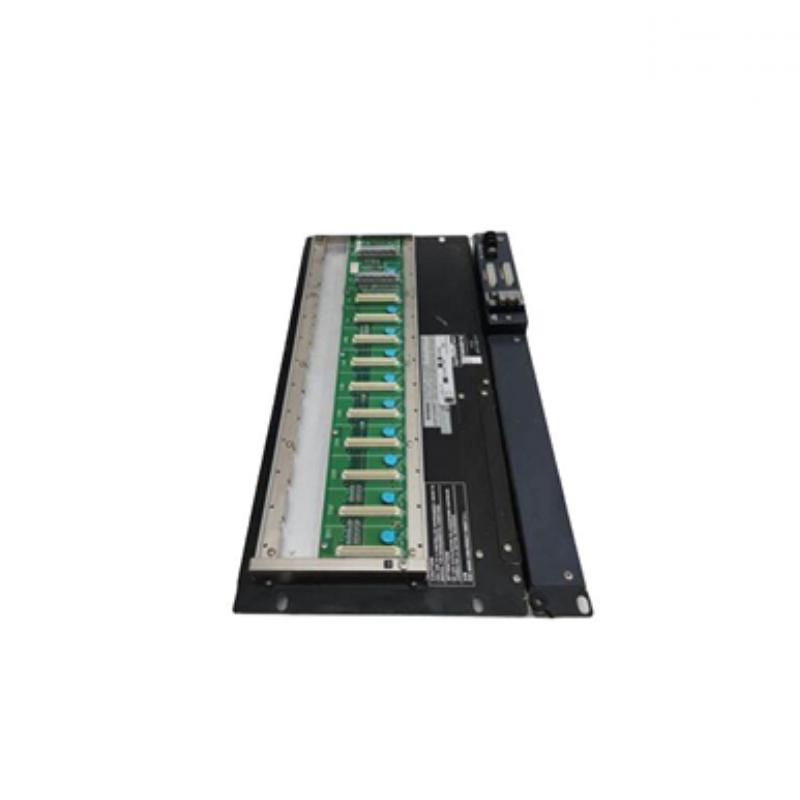

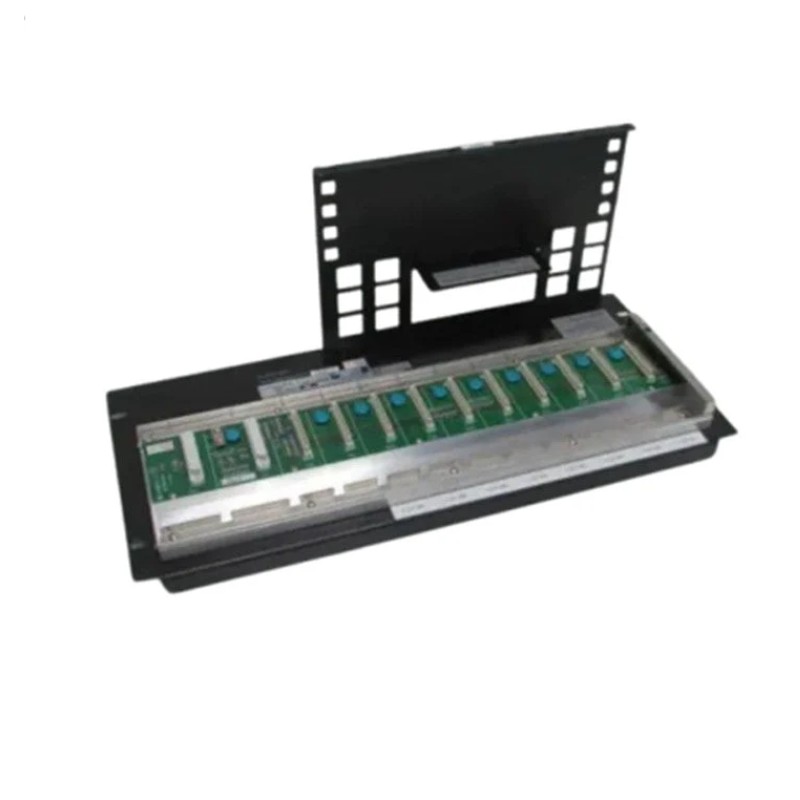

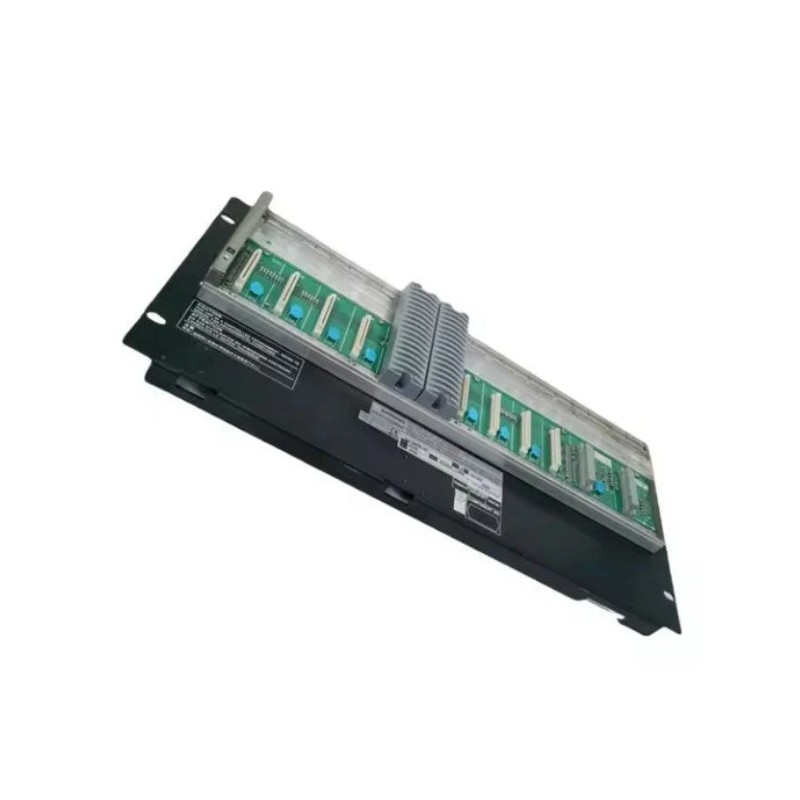

The Yokogawa AFV10D-S4115 is a Vnet/IP communication module used in CENTUM VP and ProSafe-RS systems. It provides high-speed data exchange, stable network communication, and reliable integration between controllers and plant networks.
General Information
Part Number: AFV10D-S4115
Manufacturer: Yokogawa
Series: AFV10D
Type: Vnet/IP Communication Module
Application: Distributed control systems, safety systems, plant network communication
Mounting: Installed in system node/rack units
Technology: High-speed Vnet/IP redundant communication, industrial-grade network processing
Power Specifications
Supply Voltage: Provided through system backplane
Power Consumption: Standard low-power communication module design
Protection: Built-in surge and isolation protection
Indicators: Status LEDs for power, communication, and fault
Communication & Interface
Network Type: Vnet/IP real-time Ethernet
Role: Connects field control stations to system networks
Diagnostics: Self-diagnostics, communication monitoring, fault logging
Interface: LED indicators and configuration settings
Environmental
Operating Temperature: Standard Yokogawa module operating range
Humidity: Suitable for non-condensing industrial environments
Protection Rating: Designed for enclosed control cabinets
Dimensions & Weight
Dimensions (L × W × H): 207 × 265.9 × 482.6 mm
Weight: 8 kg
