Overview

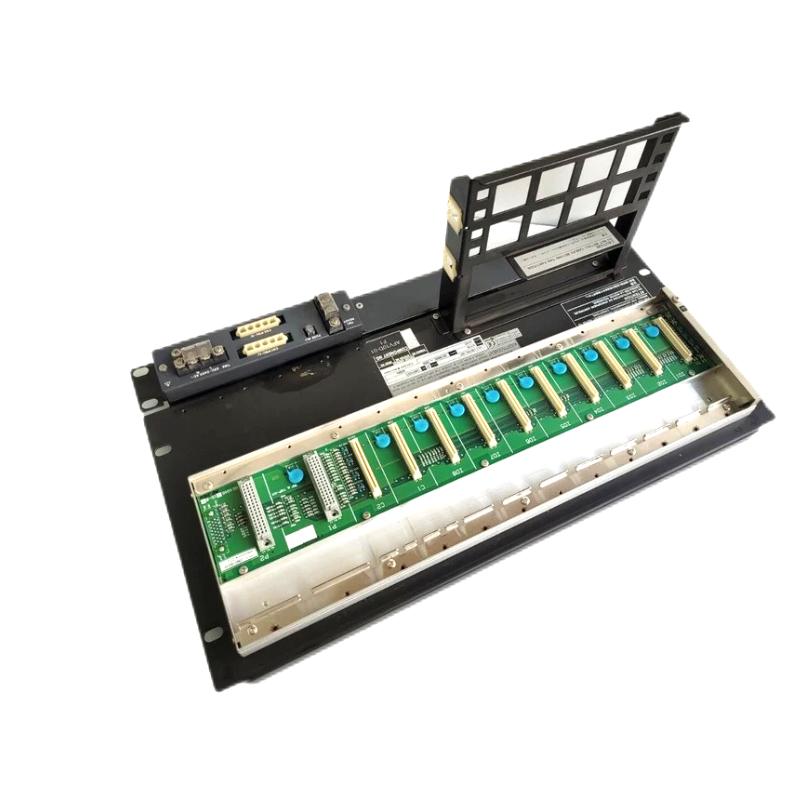

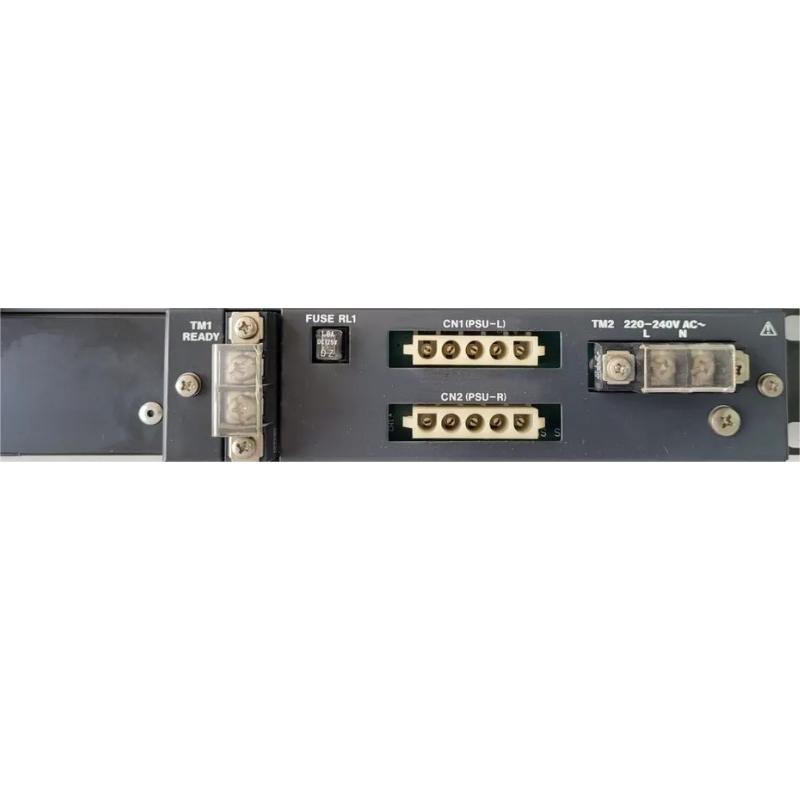

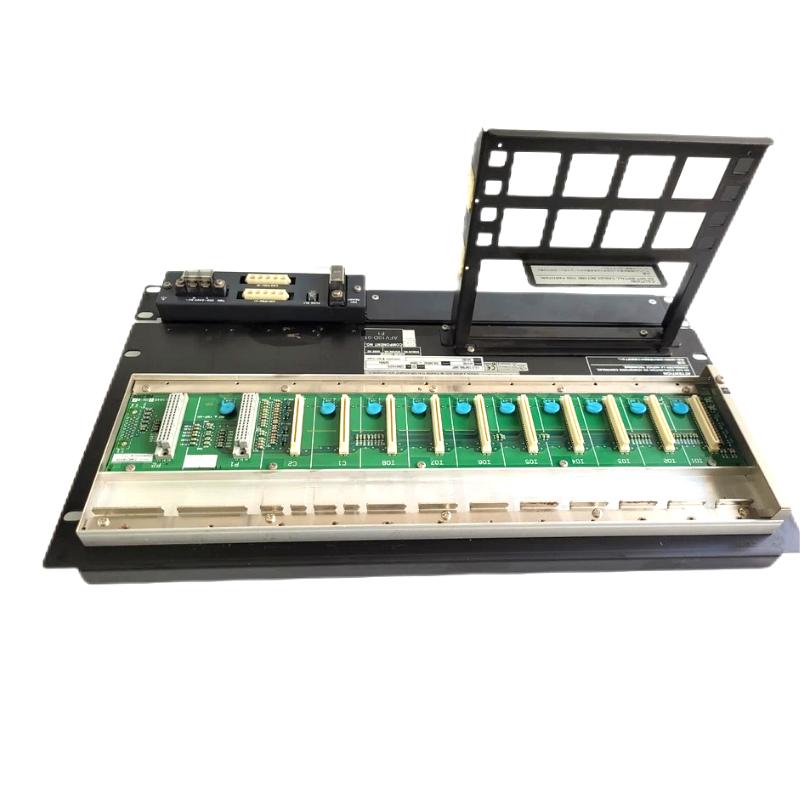

The Yokogawa AFV10D-S41201 is a Vnet/IP communication module used in CENTUM VP and ProSafe-RS systems. It enables fast and reliable data exchange between field control stations and the plant network, providing stable real-time communication within distributed control system architectures.
General Information
Part Number: AFV10D-S41201
Manufacturer: Yokogawa
Series: AFV10D
Type: Vnet/IP Communication Module
Application: Process control systems, plant networking, redundant communication systems
Mounting: Installed in system node/rack assemblies
Technology: High-speed Vnet/IP communication with redundancy and robust diagnostics
Power Specifications
Supply Voltage: Delivered through system backplane
Power Consumption: Standard AFV10D low-power design
Protection: Surge protection, network isolation, module self-protection features
Indicators: LEDs for power, module status, link activity, and fault conditions
Communication & Interface
Network Type: Vnet/IP real-time industrial Ethernet
Function: Provides network communication for distributed controllers
Diagnostics: Built-in self-diagnostics, communication integrity monitoring
Interface: LED indicators and configuration settings
Environmental
Operating Temperature: Suitable for Yokogawa DCS control cabinet environments
Humidity: Non-condensing industrial humidity range
Protection Rating: Designed for protected control system enclosures
Dimensions & Weight
Dimensions (L × W × H): 207 × 265.9 × 482.6 mm
Weight: 8 kg
