Overview

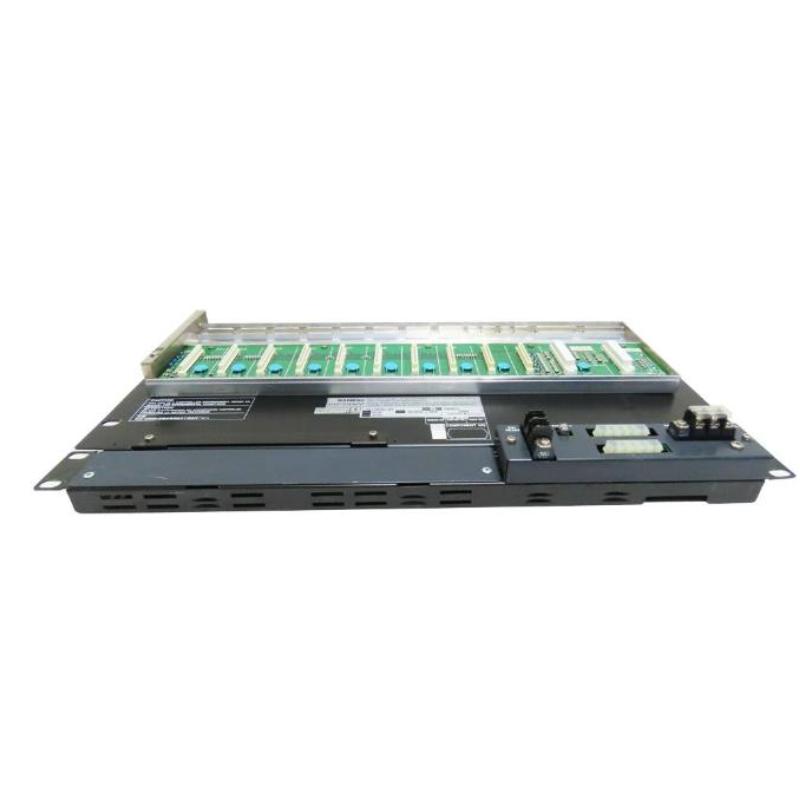

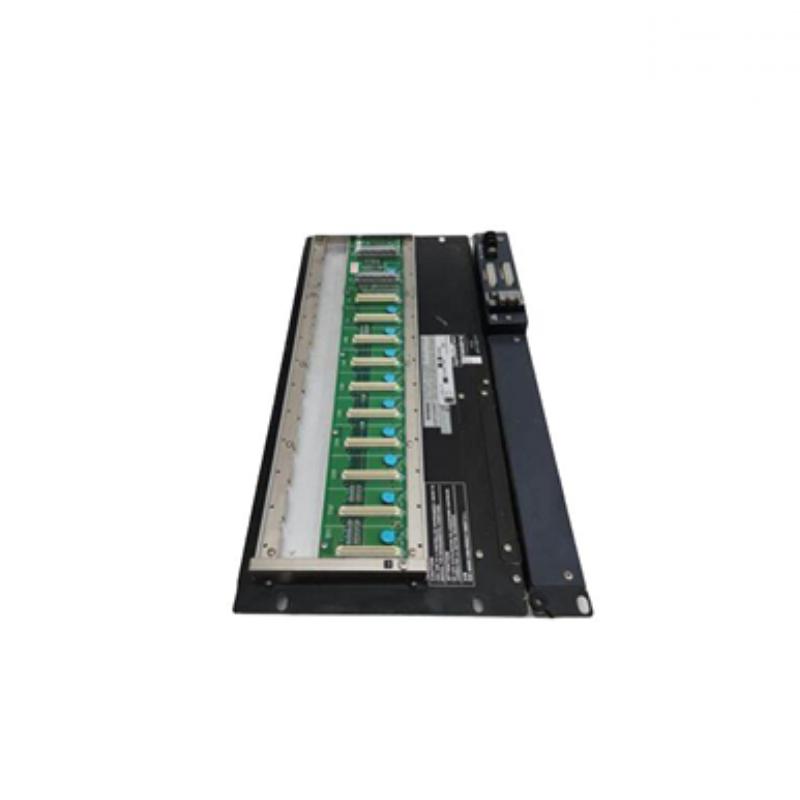

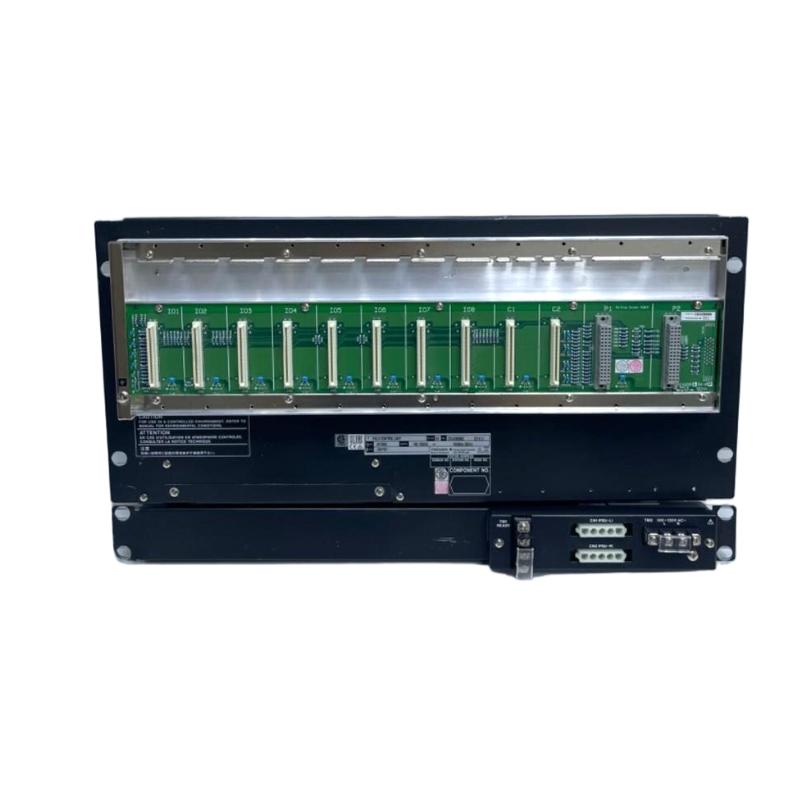

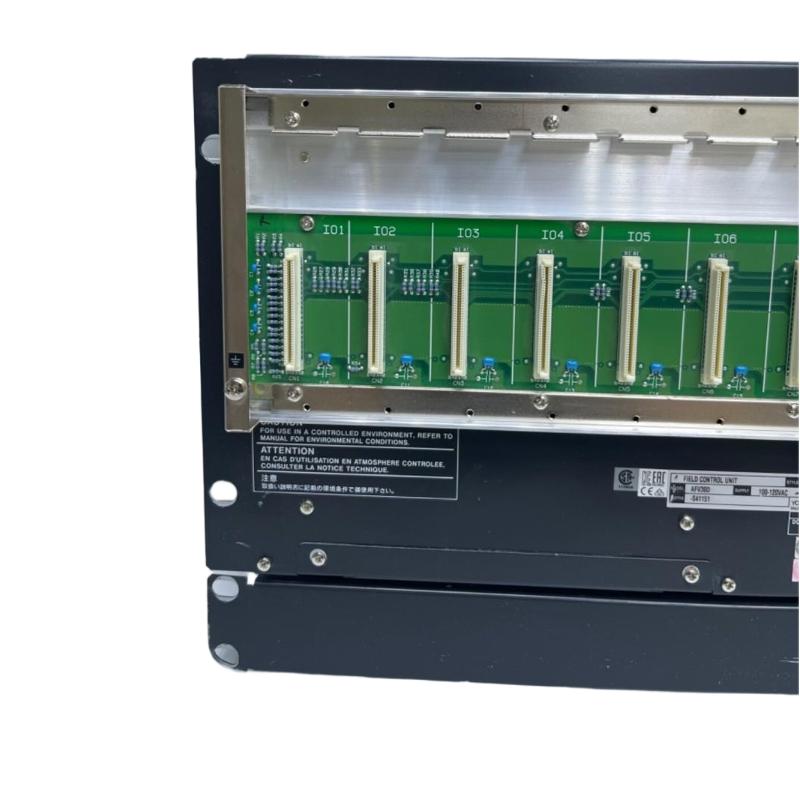

The Yokogawa AFV30D-A400 is an advanced I/O and signal-conditioning module designed for use in Yokogawa control platforms. It manages system-level data processing, internal bus communication, and stable signal interfacing to ensure reliable plant operation.
General Information
Part Number: AFV30D-A400
Manufacturer: Yokogawa
Series: AFV30D
Type: Signal Conditioning / I/O Module
Mounting: Rack or chassis installation
Technology: High-reliability internal bus communication and isolated processing circuits
Power Specifications
Supply Voltage: Powered via system backplane
Power Consumption: Low internal power draw
Input Source: Backplane power feed
Protection: Integrated surge and noise filtering
Indicators: LED indicators for status and module activity
Communication & Interface
System Interface: Yokogawa proprietary system bus
Function: Routes and conditions signals between field devices and the controller
Diagnostics: Continuous self-monitoring and module status reporting
Operator Interface: LED status indicators
Reset Features: Supports system-initiated reset
I/O & Channels
Channel Type: Signal-processing interface
Relay Channels: None
External Load Support: Not applicable
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial installation
Dimensions & Weight
Dimensions (W × H × D): 207 × 265.9 × 482.6 mm
Weight: 8 kg
