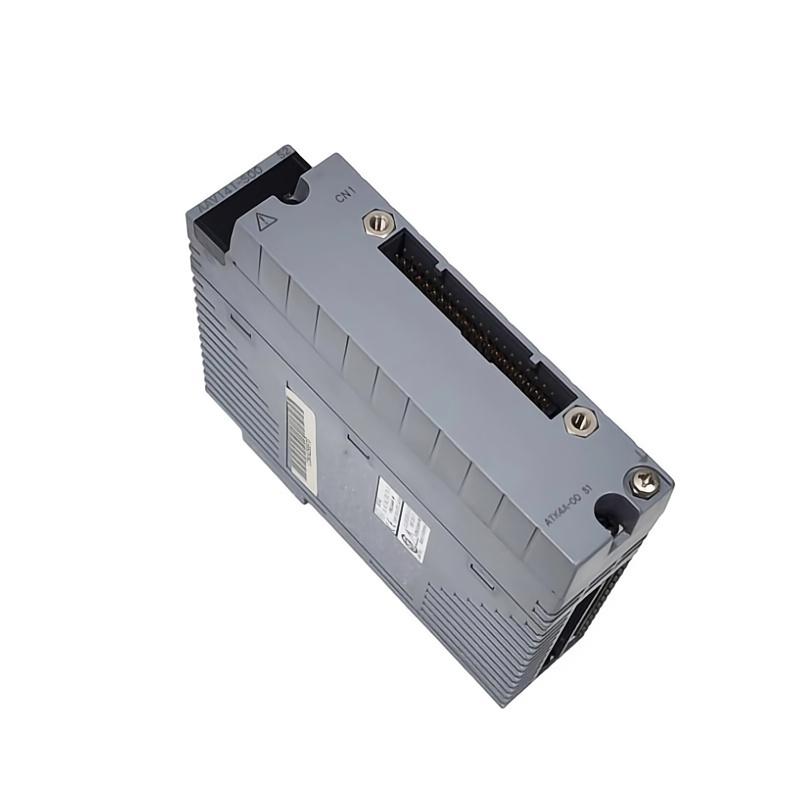

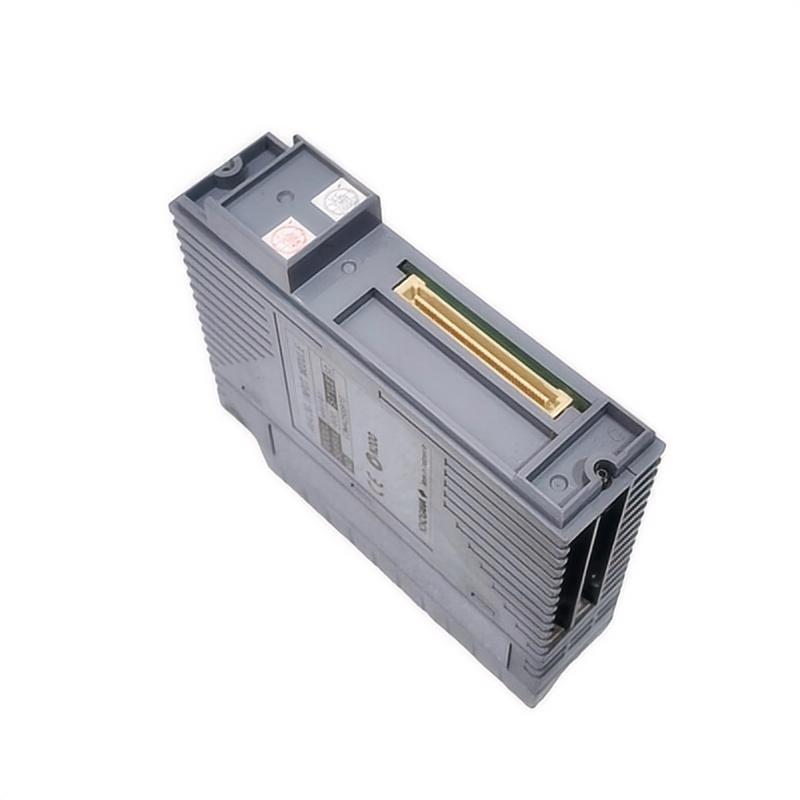

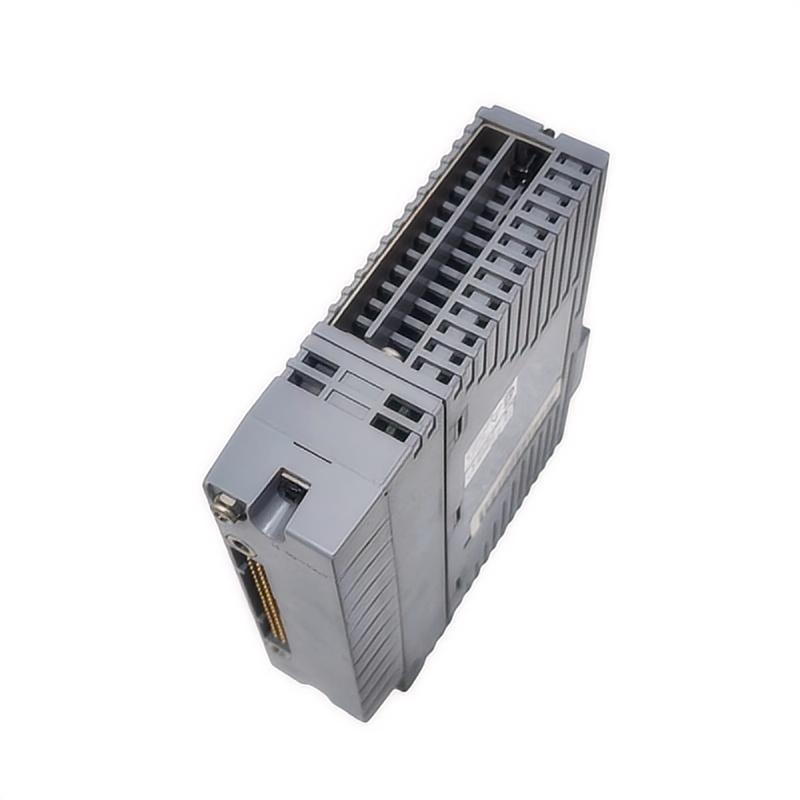

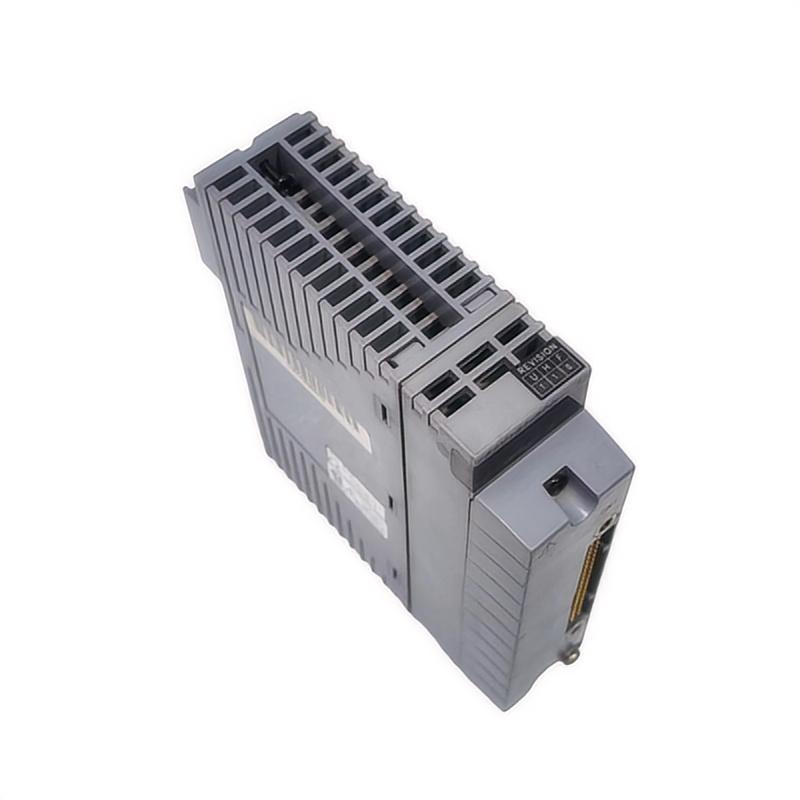

Yokogawa AAV544-S50 Voltage Output Module (Isolated)

Overview
The Yokogawa AAV544-S50 Voltage Output Module (Isolated) is a high-precision analog output module designed for industrial automation systems. Its isolation ensures safe and interference-free voltage output, providing reliable performance for process control and monitoring applications.

General Information

• Part Number: AAV544-S50

• Manufacturer: Yokogawa

• Country of Origin: Japan

• Series: AAV

• Type: Voltage Output Module (Isolated)

• Mounting: Installed within control cabinets or racks

• Technology: Isolated analog voltage output, industrial-grade signal control

Power Specifications

• Supply Voltage: 24 V DC

• Power Consumption: ≤ 5 W

• Input: Powered through the system backplane

• Protection: Surge and reverse-polarity protection

• Indicators: LEDs for power and channel status

Communication & Interface

• Ethernet / Fieldbus Port: Not applicable (Voltage output only)

• Bus Coupler Role: Outputs isolated voltage signals to external devices

• Diagnostics: Real-time monitoring of output channels and fault detection

• Operator Interface: LED indicators for channel status

• Reset Features: Supports soft and hardware reset

Environmental

• Operating Temperature: 0 to +55 °C

• Humidity: Up to 95% RH, non-condensing

• Protection Rating: IP20 or suitable for indoor industrial environments

Dimensions & Weight

• Dimensions (L × W × H): 107.5 × 130 × 32.8 mm

• Weight: ~ 0.2 kg
