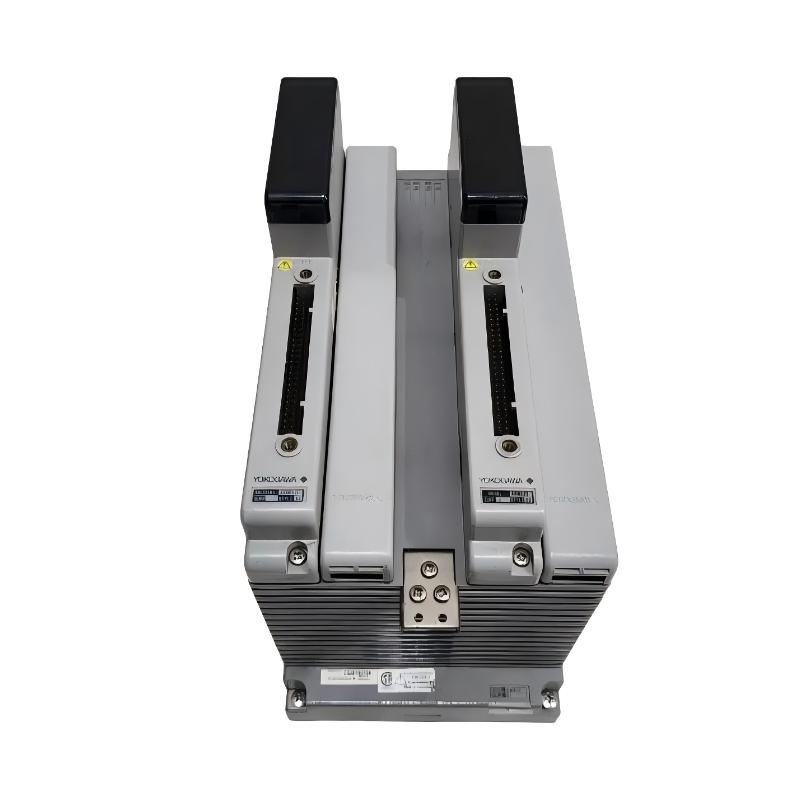

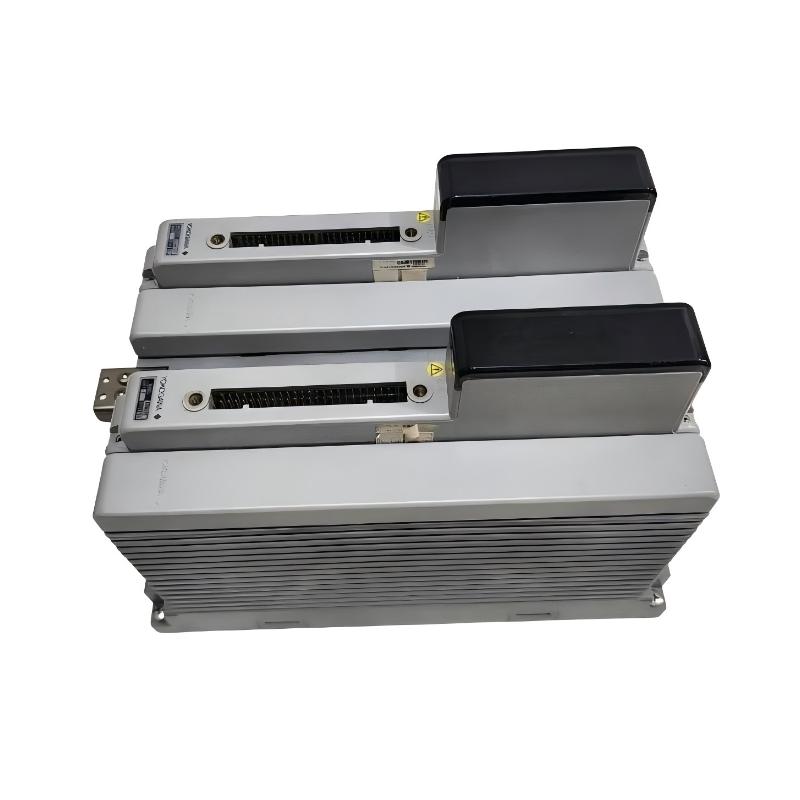

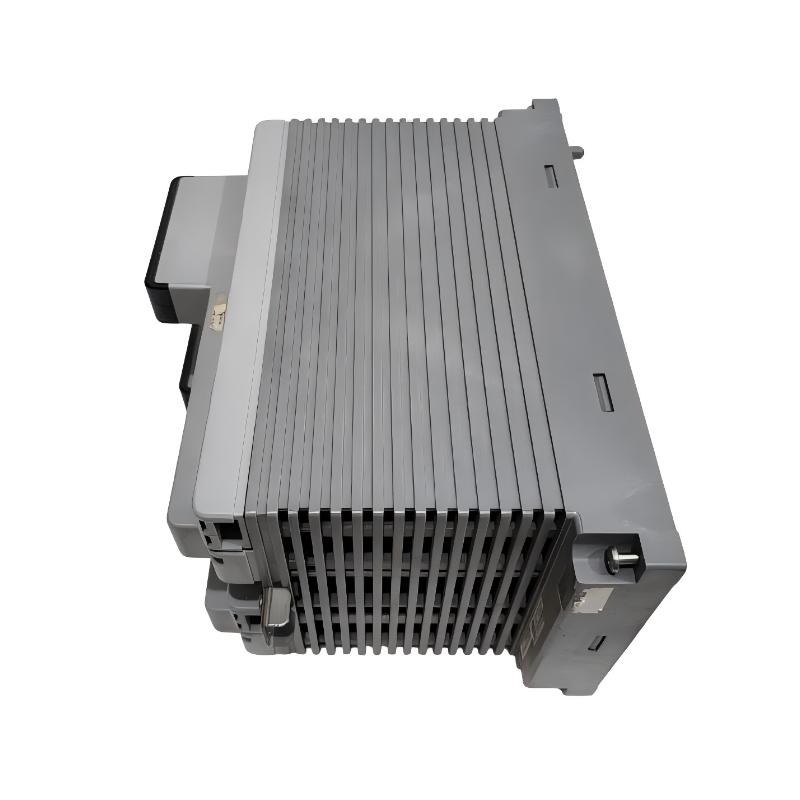

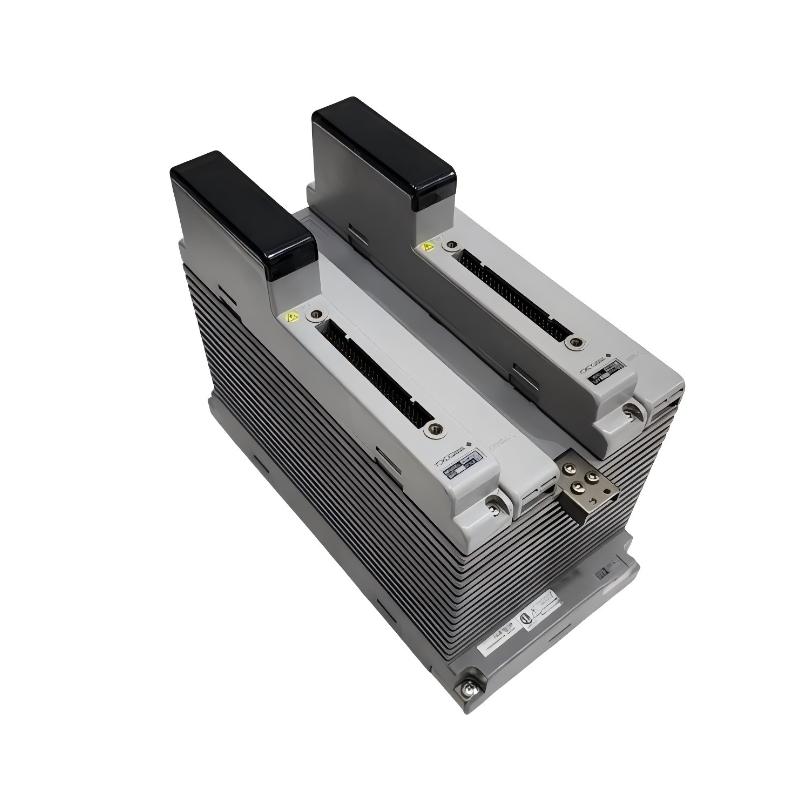

Yokogawa ADM12C S3 Contact Input Module

Overview
The Yokogawa ADM12C S3 is a contact input module designed for Yokogawa DCS (Distributed Control System) applications. It provides accurate and reliable signal acquisition from field contact devices, ensuring stable operation and monitoring in industrial automation systems.

General Information

Part Number: ADM12C S3

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Type: Contact Input Module

Application: Industrial automation, process control, and monitoring

Mounting: Rack or panel installation within control cabinets

Technology: Digital contact input, diagnostic monitoring, fault detection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered via system backplane

Protection: Overvoltage and short-circuit protection

Indicators: LEDs for power and input status

Communication & Interface

Interface: Connects to Yokogawa DCS input bus

Diagnostics: Input signal supervision, fault reporting

Operator Interface: LED indicators

Reset Features: Supports soft and hardware reset

I/O & Channels

Input Channels: Multiple contact inputs (as per module specification)

External Load Support: Provides signal interface only; does not drive loads

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 200 × 130 × 30 mm

Weight: 1 kg
