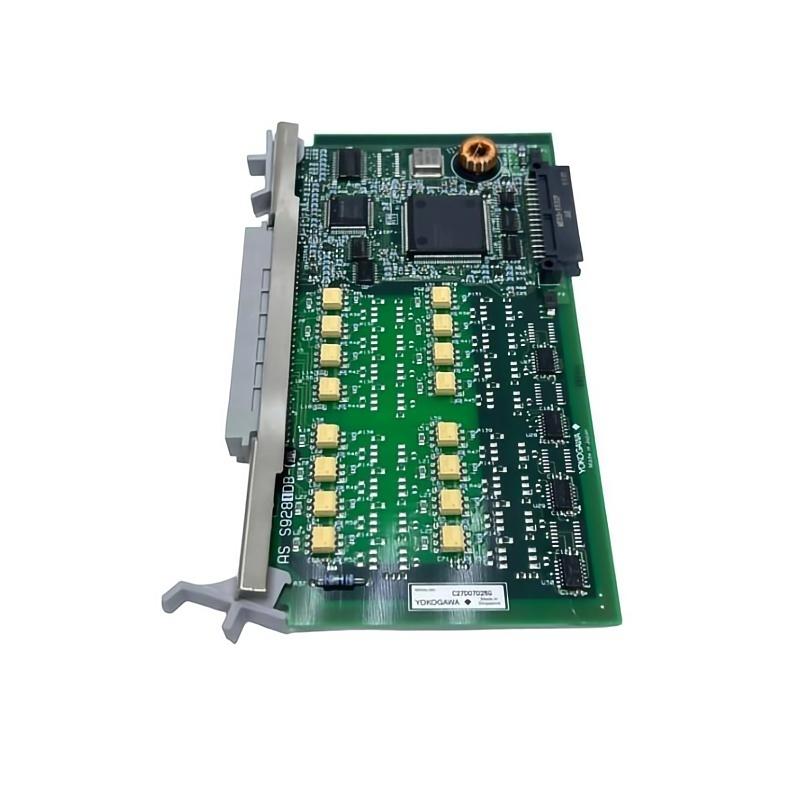

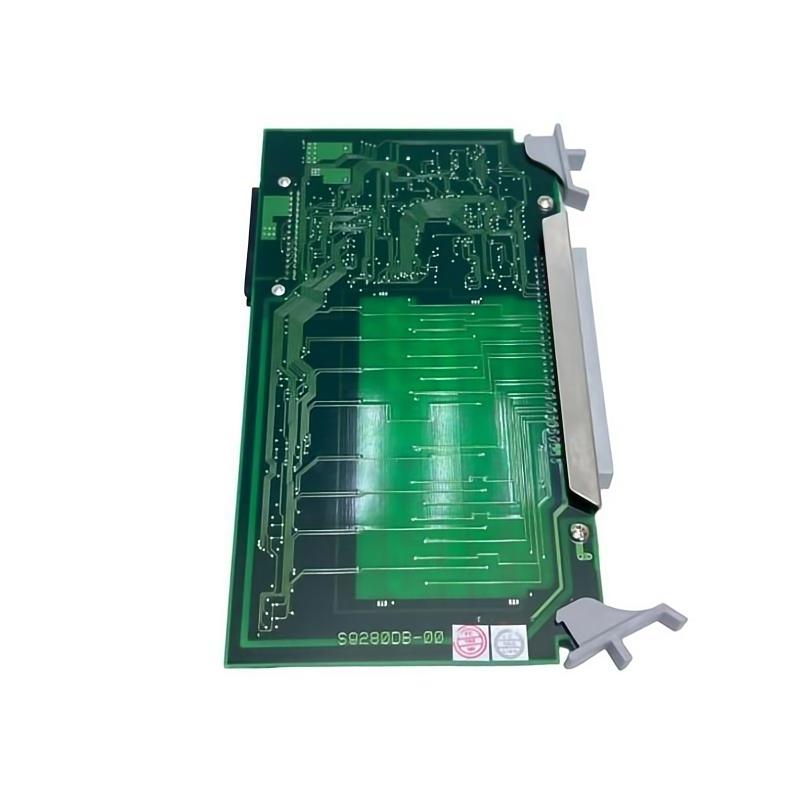

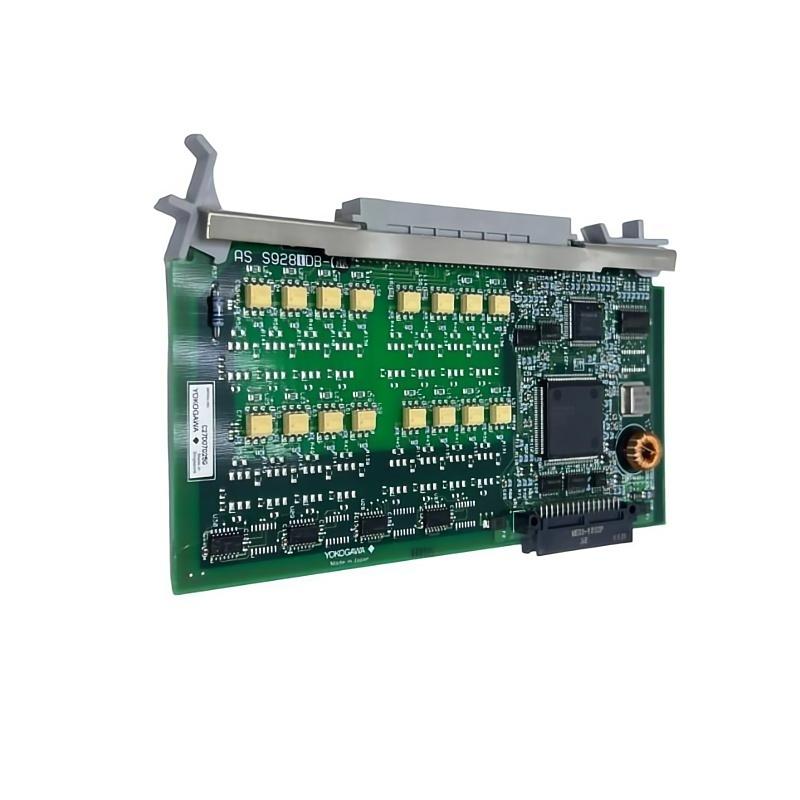

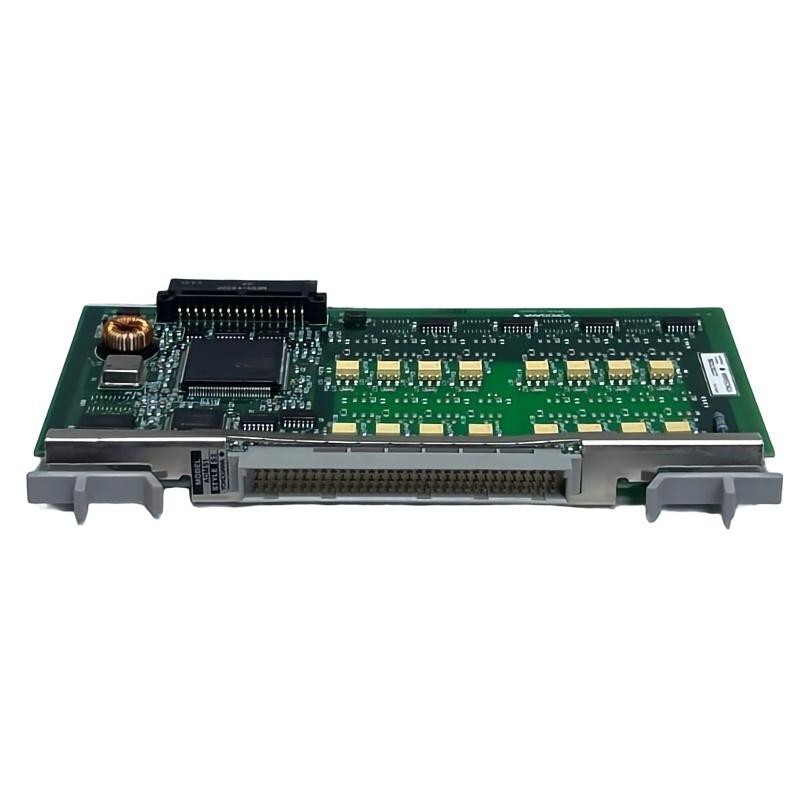

Yokogawa ADM51 Contact Output Module

Overview
The Yokogawa ADM51 is a contact output module designed for Yokogawa DCS (Distributed Control System) applications. It provides reliable switching of field devices, enabling precise control and automation of industrial processes.

General Information

Part Number: ADM51

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Type: Contact Output Module

Application: Industrial automation, process control, and monitoring

Mounting: Rack or panel installation within control cabinets

Technology: Electromechanical relay outputs, diagnostic monitoring, fault detection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered via system backplane

Protection: Overvoltage, short-circuit, and surge protection

Indicators: LEDs for power, output status, and fault

Communication & Interface

Interface: Connects to Yokogawa DCS output bus

Diagnostics: Output channel supervision, fault reporting

Operator Interface: LED indicators

Reset Features: Supports soft and hardware reset

I/O & Channels

Output Channels: Multiple relay outputs (as per module specification)

External Load Support: Provides switching interface only; does not power high loads directly

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 125 × 130 × 248 mm

Weight: 2 kg

✅ New In Stock – Reliable Contact Output Modules!
