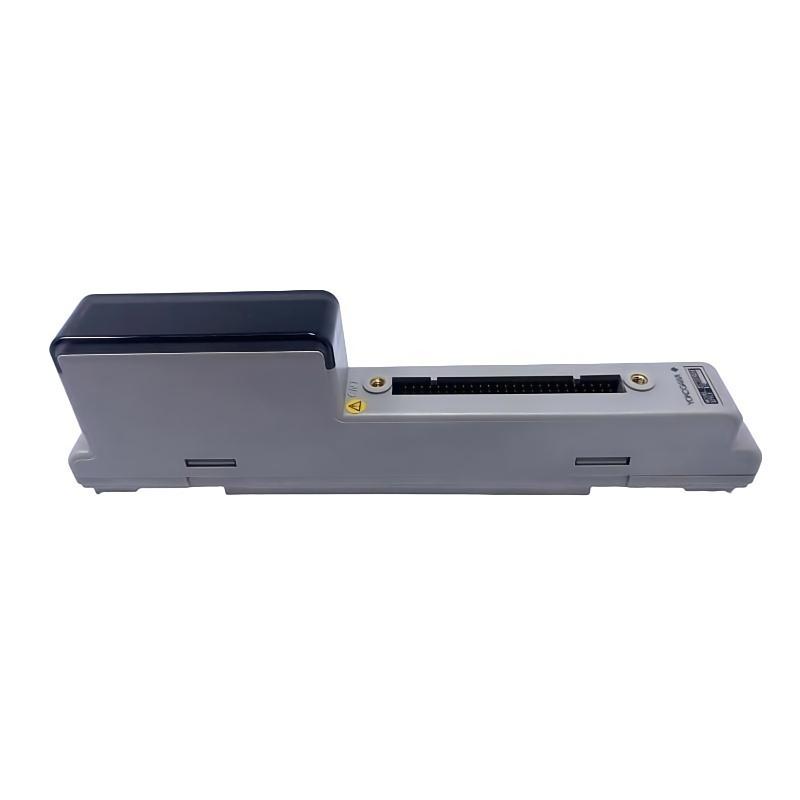

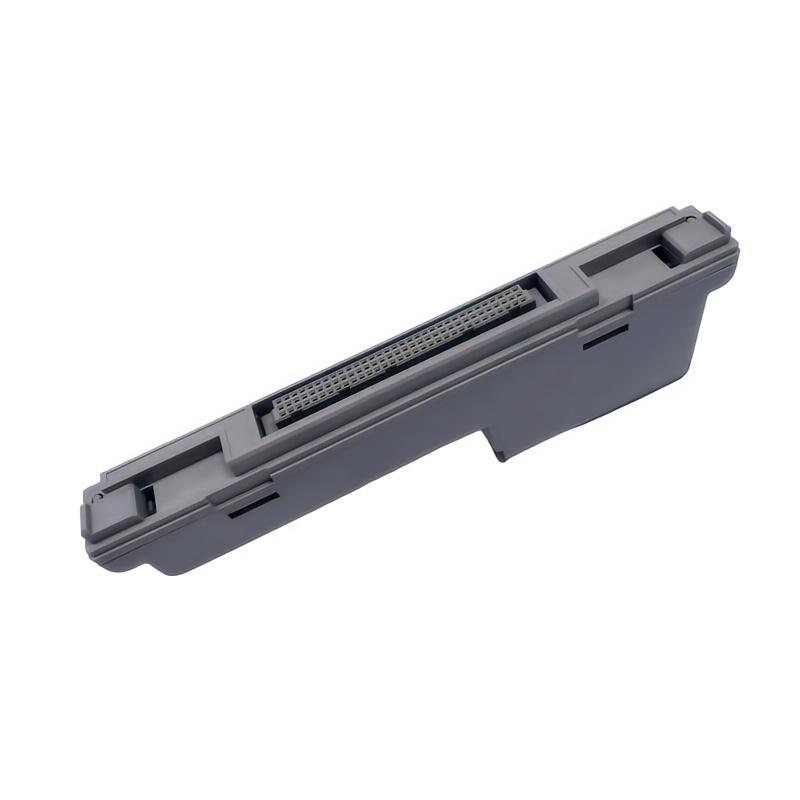

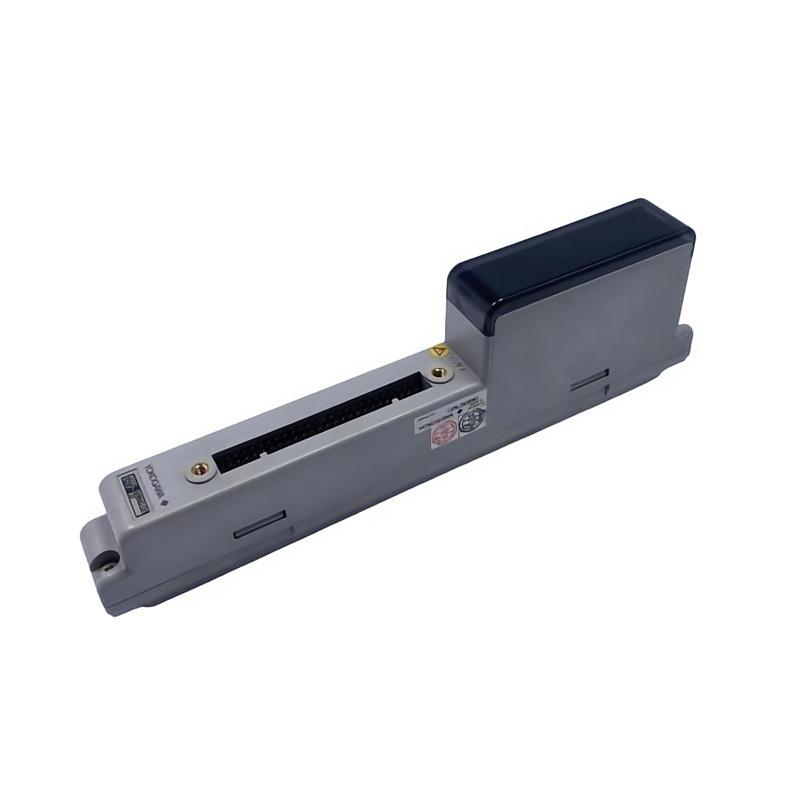

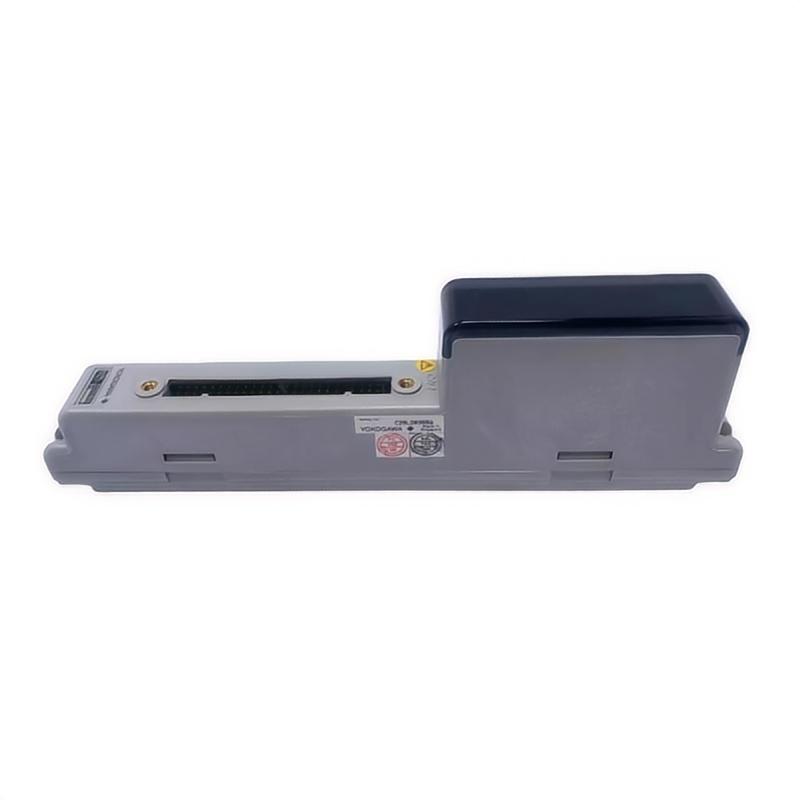

Yokogawa ADM52C/CE1 S2 Contact Output Module

Overview
The Yokogawa ADM52C/CE1 S2 is a compact contact output module designed for Yokogawa DCS (Distributed Control System) applications. It provides reliable and precise switching of field devices, ensuring stable operation and efficient automation in industrial systems.

General Information

Part Number: ADM52C/CE1 S2

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Type: Contact Output Module

Application: Industrial automation, process control, and monitoring

Mounting: Rack or panel installation within control cabinets

Technology: Electromechanical relay outputs, diagnostic monitoring, fault detection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered via system backplane

Protection: Overvoltage, short-circuit, and surge protection

Indicators: LEDs for power, output status, and fault

Communication & Interface

Interface: Connects to Yokogawa DCS output bus

Diagnostics: Output channel supervision, fault reporting

Operator Interface: LED indicators

Reset Features: Supports soft and hardware reset

I/O & Channels

Output Channels: Multiple relay outputs (as per module specification)

External Load Support: Provides switching interface only; does not drive high loads

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 130 × 100 × 30 mm

Weight: 1.5 kg
