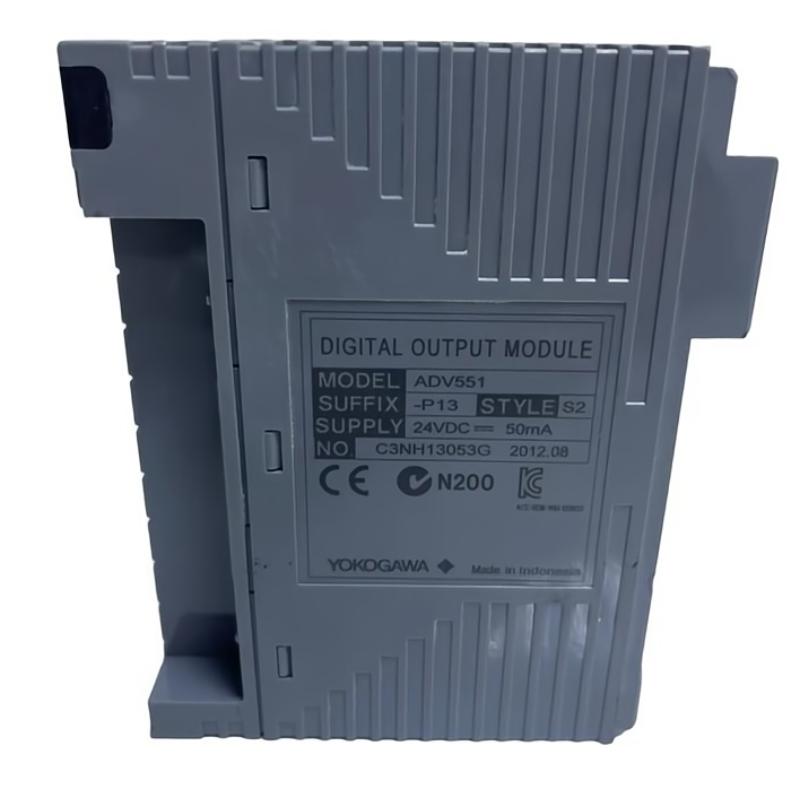

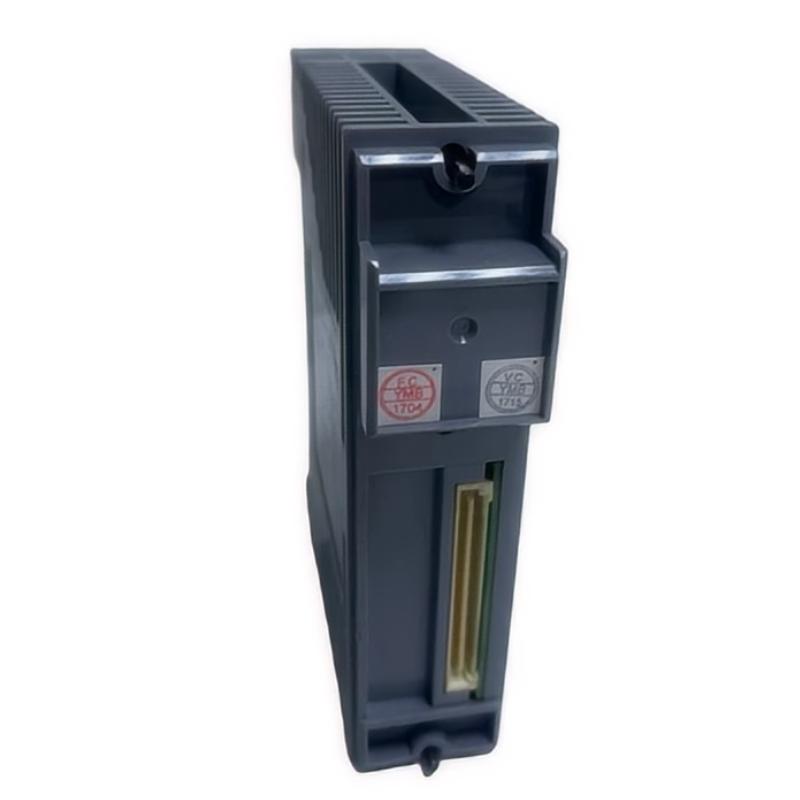

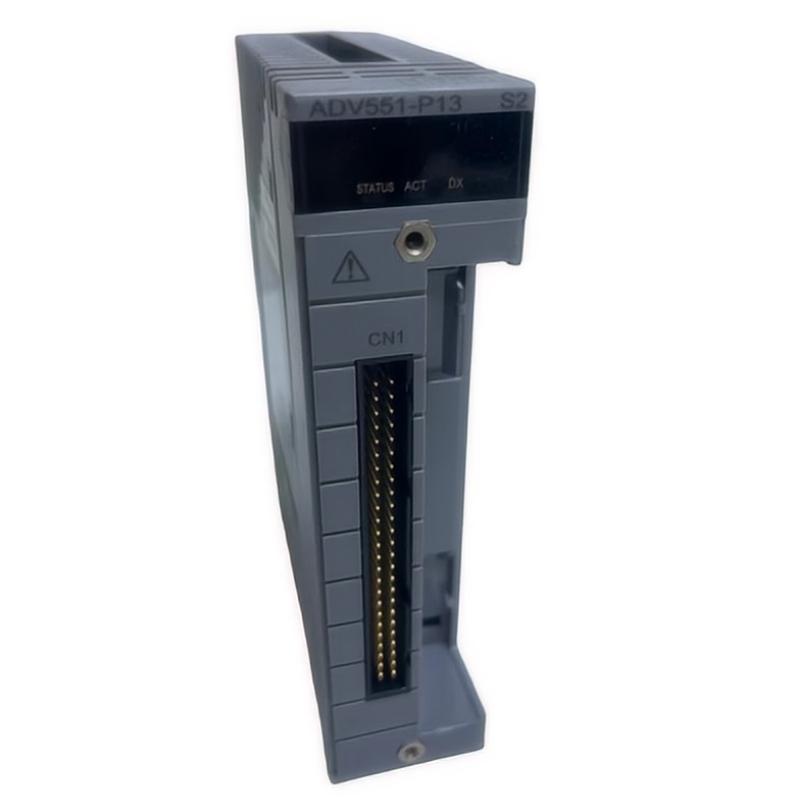

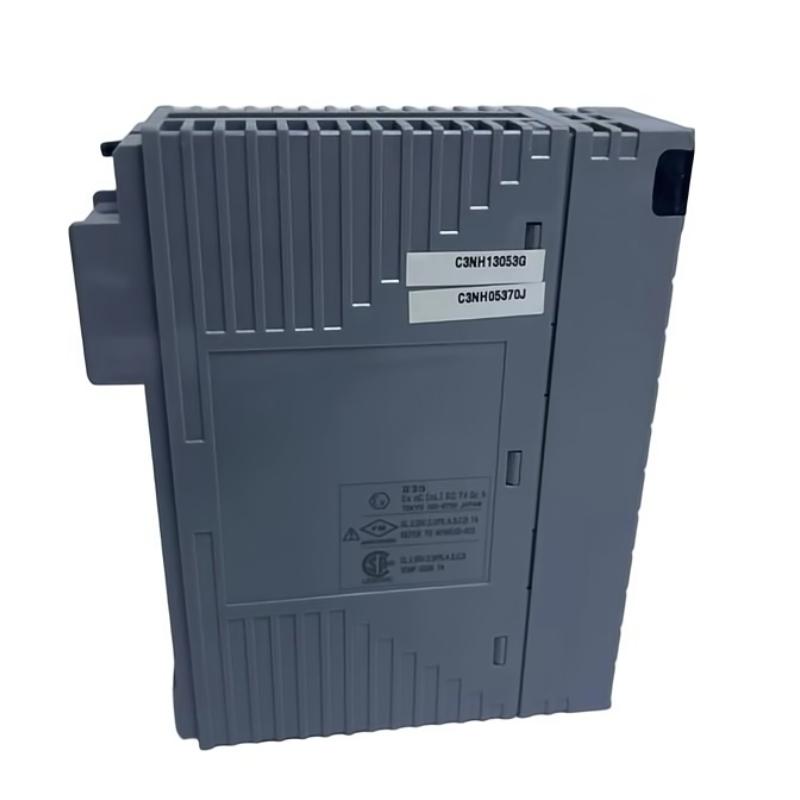

Yokogawa ADV551-P13 Digital Output Module

Overview

The Yokogawa ADV551-P13 is a high-performance digital output module designed for Yokogawa DCS systems. It delivers reliable digital signals to field devices, enabling precise process control and seamless automation. The module ensures stable performance in demanding industrial environments.

General Information

Part Number: ADV551-P13

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Series: ADV (Advanced Digital Module)

Type: Digital Output Module

Mounting: DIN rail or rack installation within control cabinets

Technology: Isolated digital output with fault detection and protection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via backplane connection

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for power and channel status

Communication & Interface

Output Channels: Multiple digital outputs (configurable)

Signal Type: DC digital signals for field devices

Diagnostics: Output validation, fault detection, and channel status reporting

Operator Interface: LED indicators for each channel

Reset Features: Supports soft and hardware reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 90% RH, non-condensing

Protection Rating: IP20, suitable for standard industrial cabinets

Dimensions & Weight

Dimensions (L × W × H): 107.5 × 130 × 32.8 mm

Weight: 0.2 kg

Reliable and Compact – Perfect for Efficient Automation!
