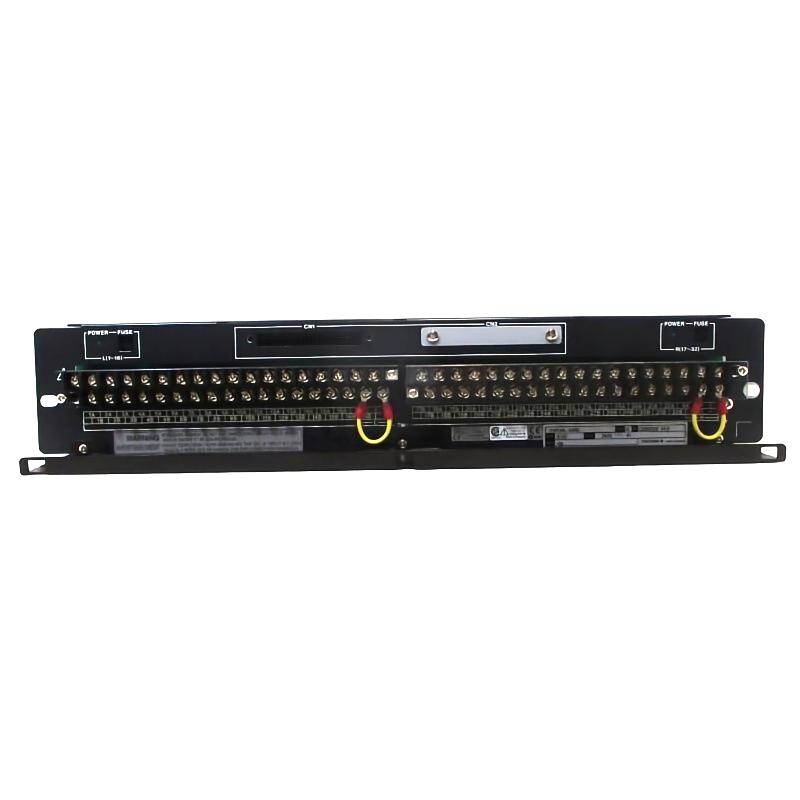

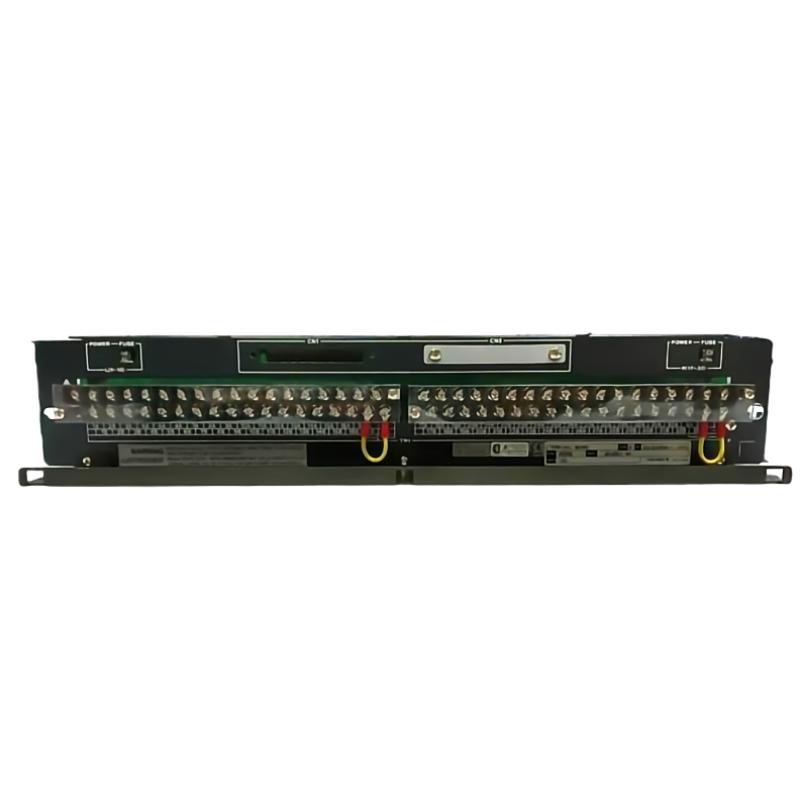

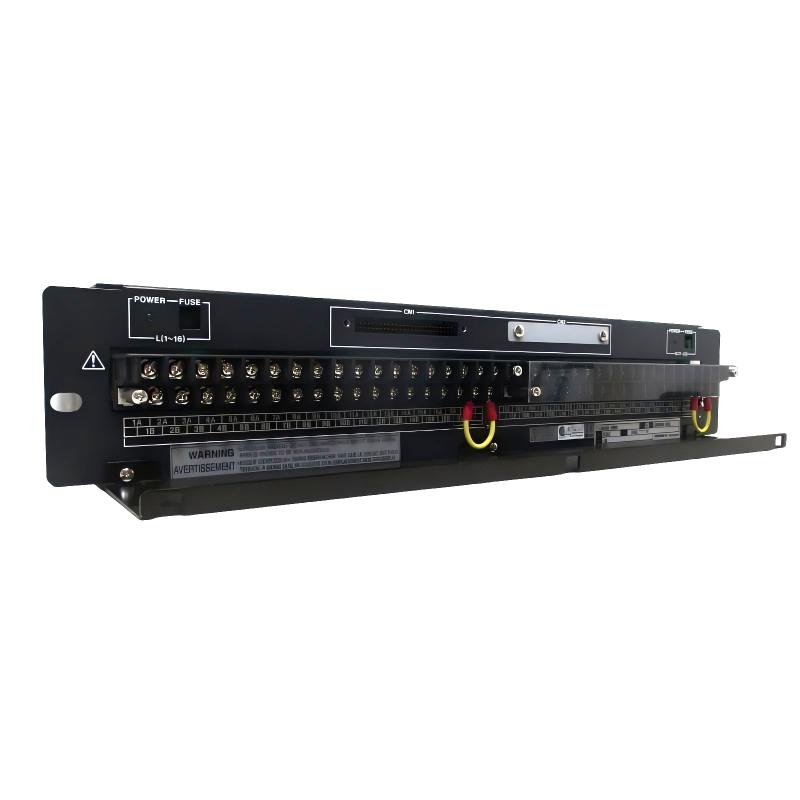

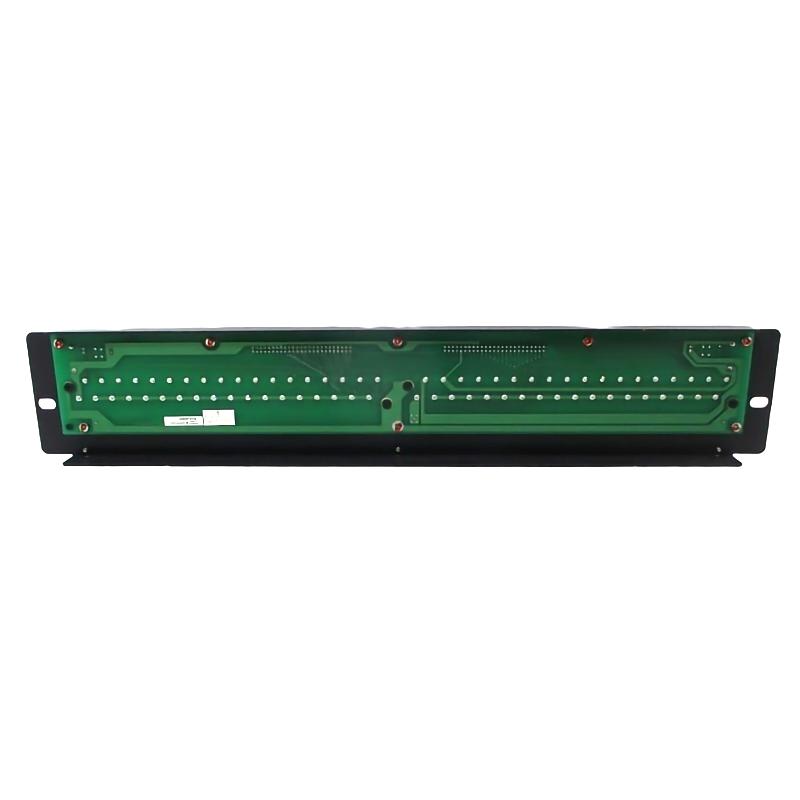

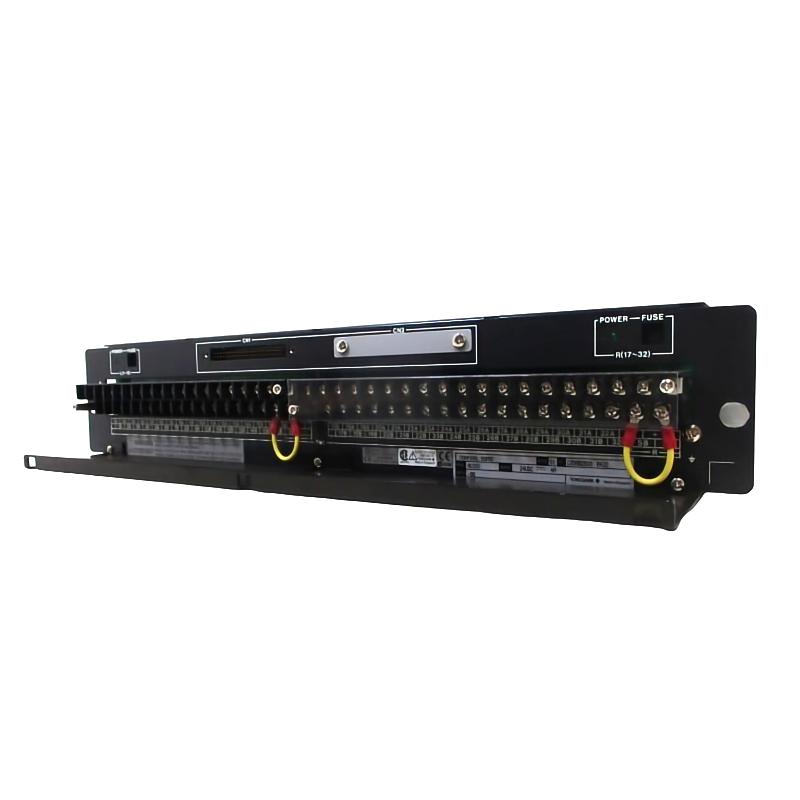

Yokogawa AED5D-05 Terminal Board
| Release time | Mar 17, 2026 |
|---|---|
| Brand | Yokogawa Electric |
| Product Numbe | AED5D-05 |
| Country Of Origin | Japan |
| Dimensions | 482.6 x 88.1 x 85 mm |
| Weight | 1.5 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Yokogawa AED5D-05 terminal board is designed for Yokogawa control systems, providing a centralized and secure interface for field device wiring. It ensures organized signal distribution and reliable operation in industrial automation environments.
General Information
Part Number: AED5D-05
Manufacturer: Yokogawa
Brand / Country of Origin: Yokogawa / Japan
Type: Terminal Board
Series: AED
Mounting: Panel or rack-mounted within Yokogawa control systems
Material: High-quality insulating material with durable metal contacts
Power Specifications
Supply Voltage: Not applicable (passive terminal board)
Power Handling: Supports connected device wiring and signal distribution
Protection: Grounded for safety and EMI protection
Indicators: None
Communication & Interface
Connectivity: Centralized interface for field device wiring
Terminal Points: Multiple connection points for digital and analog signals
Diagnostics Support: Signal continuity and wiring verification available via connected modules
Reset Features: Not applicable
Environmental
Operating Temperature: 0 to +55 °C
Humidity: 5–95% RH, non-condensing
Protection Rating: IP20 (installed inside enclosure)
Vibration Resistance: Suitable for standard industrial environments
Dimensions & Weight
Dimensions (L × W × H): 482.6 × 88.1 × 85 mm
Weight: 1.5 kg
