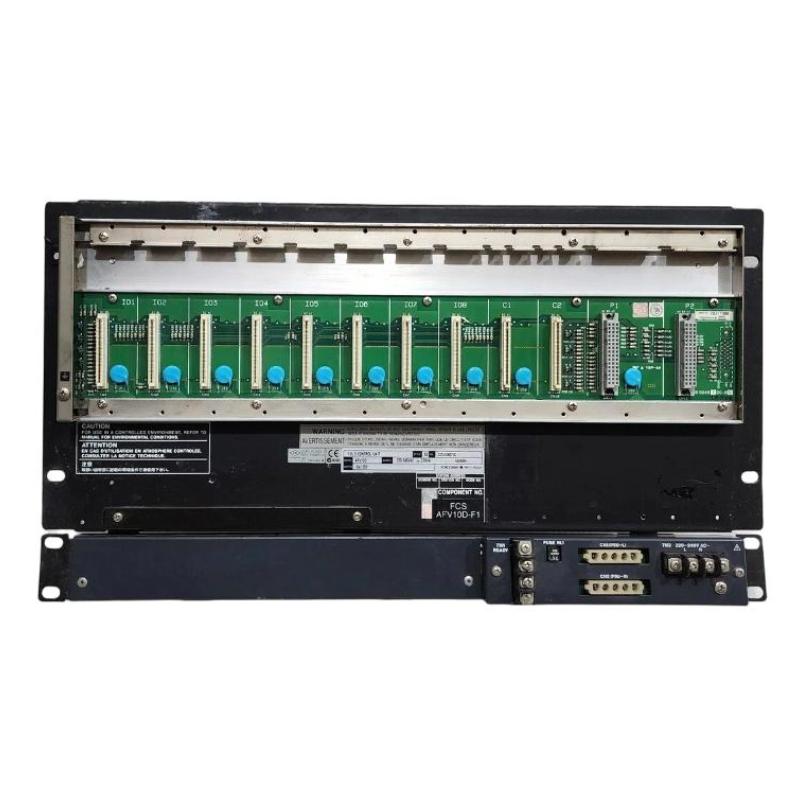

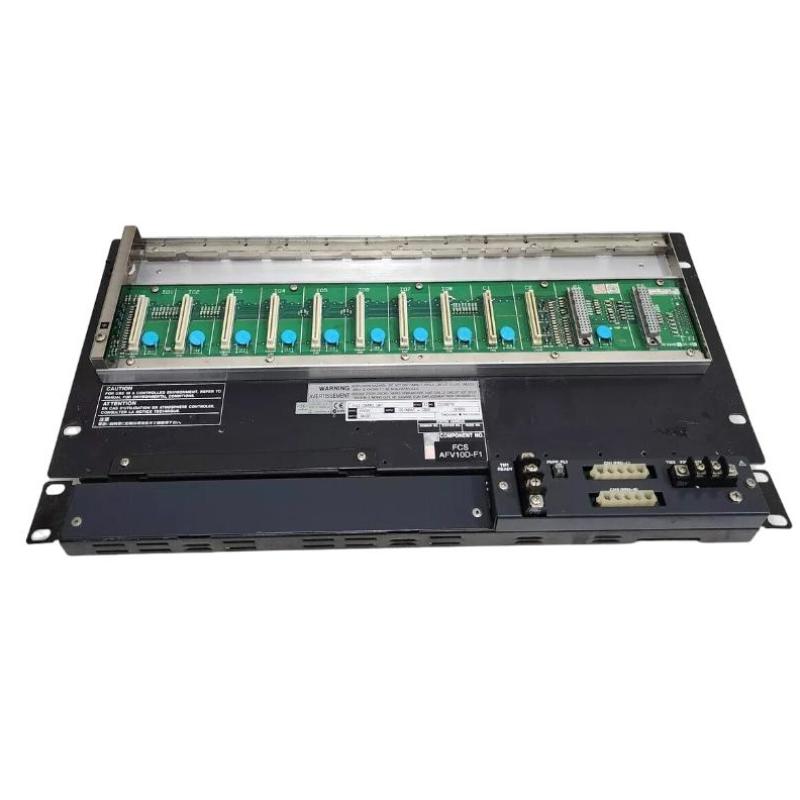

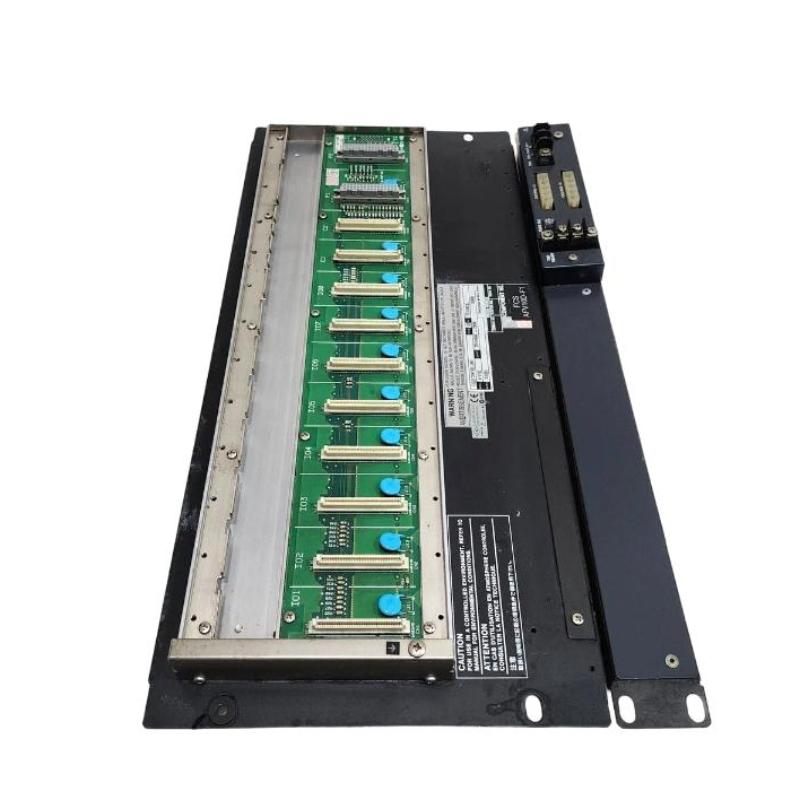

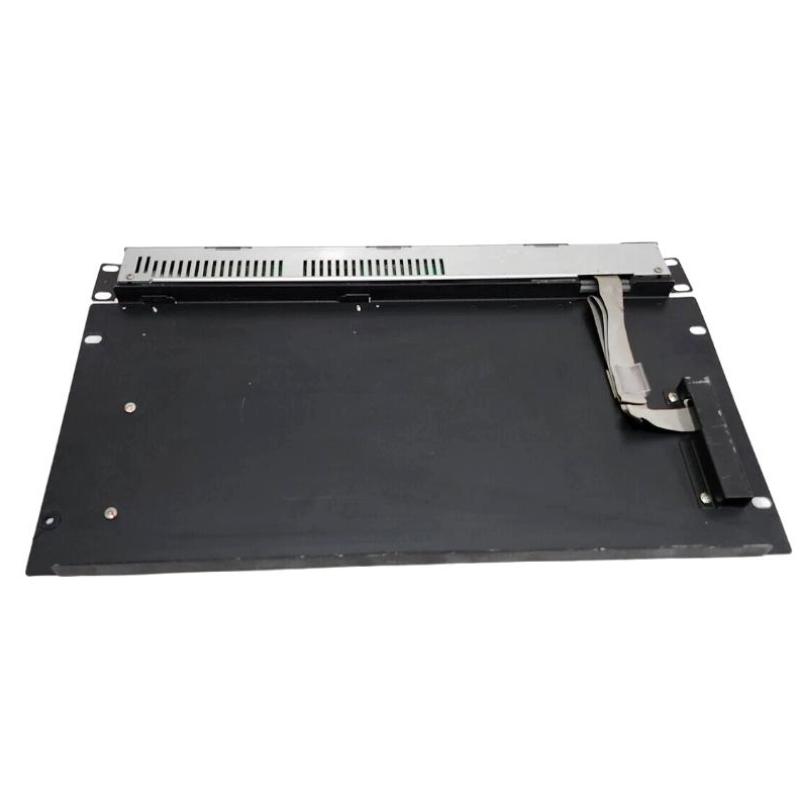

Yokogawa AFS10S Field Control Unit

Overview

The Yokogawa AFS10S is a field control unit designed for industrial automation applications. It provides robust process control, signal acquisition, and management at the field level, enabling precise operation of sensors, actuators, and other field devices. The unit ensures reliable, high-speed performance and integrates seamlessly with distributed control systems for efficient plant operation.

General Information

Part Number: AFS10S

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Series: AFS Field Control Units

Type: Field Control Unit

Mounting: Panel or rack mounting in industrial control cabinets

Technology: Field-level process control, high-speed signal processing, system integration support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 150 W

Input: Powered via field control cabinet

Protection: Short-circuit and overload protection

Indicators: LEDs for system status, communication, and fault conditions

Communication & Interface

Bus Interface: Connects to distributed control systems for data exchange

I/O Channels: Multiple digital and analog inputs/outputs configurable for field devices

Diagnostics: System and channel-level fault detection, status reporting

Operator Interface: LED indicators for unit status and system health

Reset Features: Supports system-level and field-level reset

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial cabinet mounting

Vibration & Shock: Conforms to IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 207 × 265.9 × 482.6 mm

Weight: ~ 8 kg
