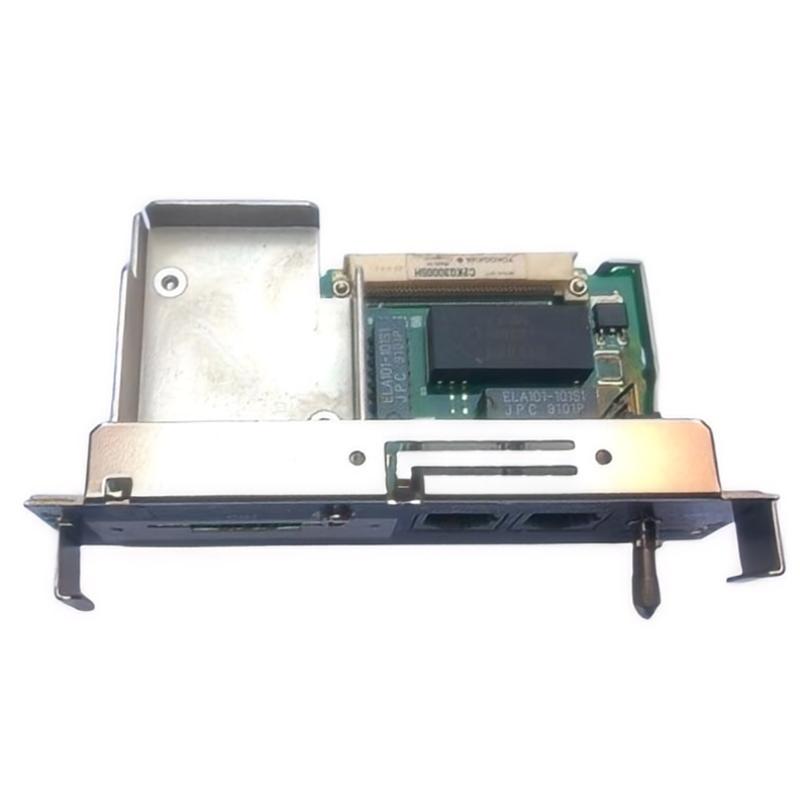

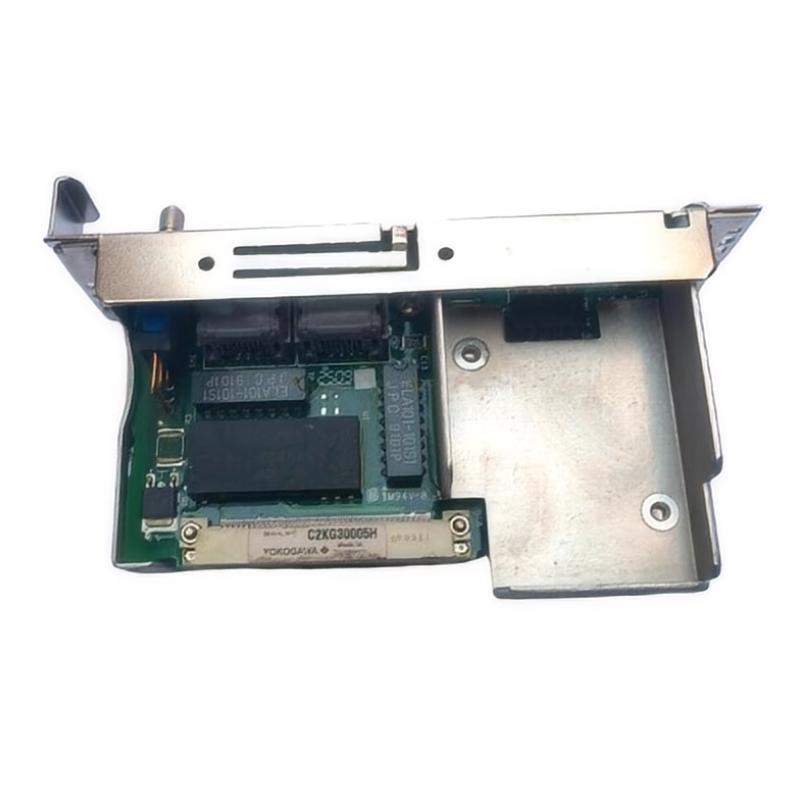

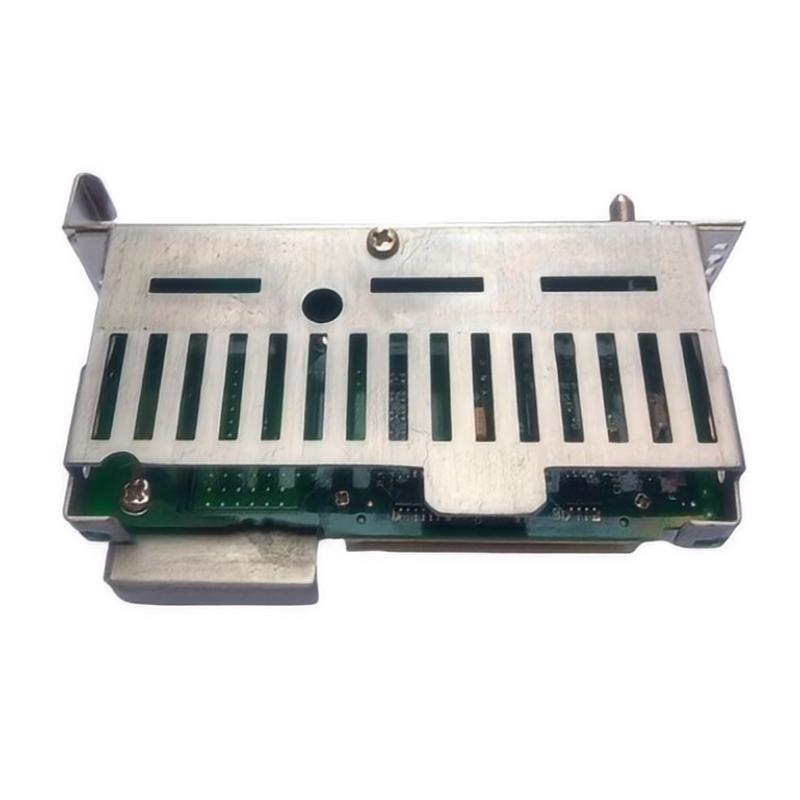

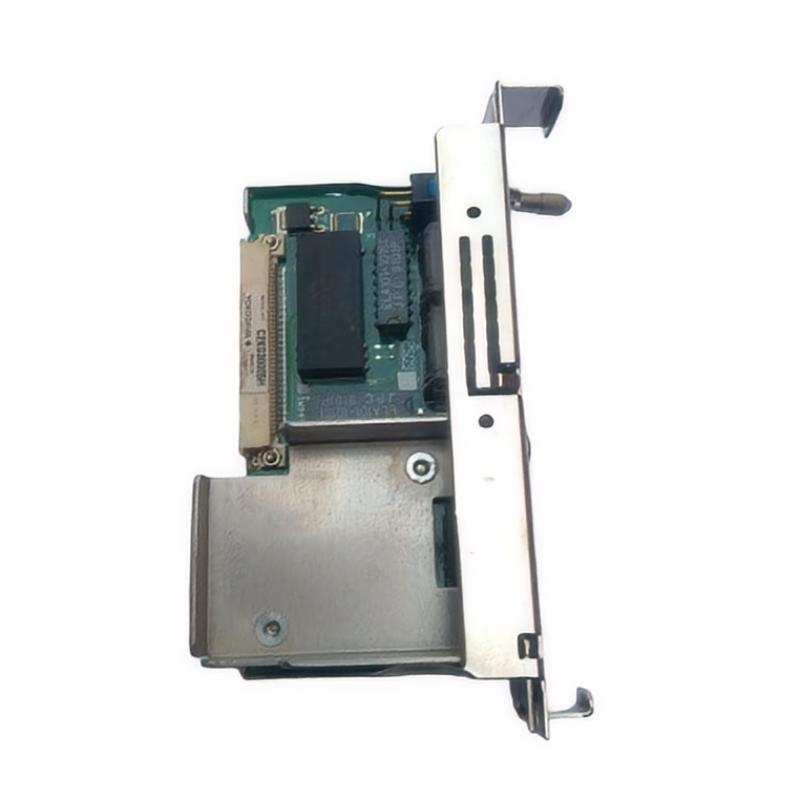

Yokogawa AIP504-11 S1 V Net Coupler Unit

Overview

The Yokogawa AIP504-11 S1 is a V Net coupler unit designed for industrial automation systems. It enables reliable and efficient communication between V Net network devices and control modules, ensuring stable data exchange and uninterrupted operation in safety-critical environments.

General Information

Part Number: AIP504-11 S1

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Series: AIP Series

Type: V Net Coupler Unit

Mounting: Rack or panel installation within control cabinet

Technology: Industrial-grade network coupling with integrated diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input Protection: Surge and reverse-polarity protection

Indicators: LED indicators for power, network status, and fault

Communication & Interface

Bus Interface: V Net network compatible

Data Handling: Facilitates communication between V Net devices and system modules

Diagnostics: Monitors network health, signal integrity, and fault status

Operator Interface: LEDs for power, communication, and fault indicators

Reset Features: Supports soft and hardware reset via the control system

Environmental

Operating Temperature: 0 to +60 °C

Humidity: 5–85% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Vibration / Shock: Compliant with industrial vibration and shock standards

Dimensions & Weight

Dimensions (L × W × H): 200 × 130 × 40 mm

Weight: ~ 0.5 kg
