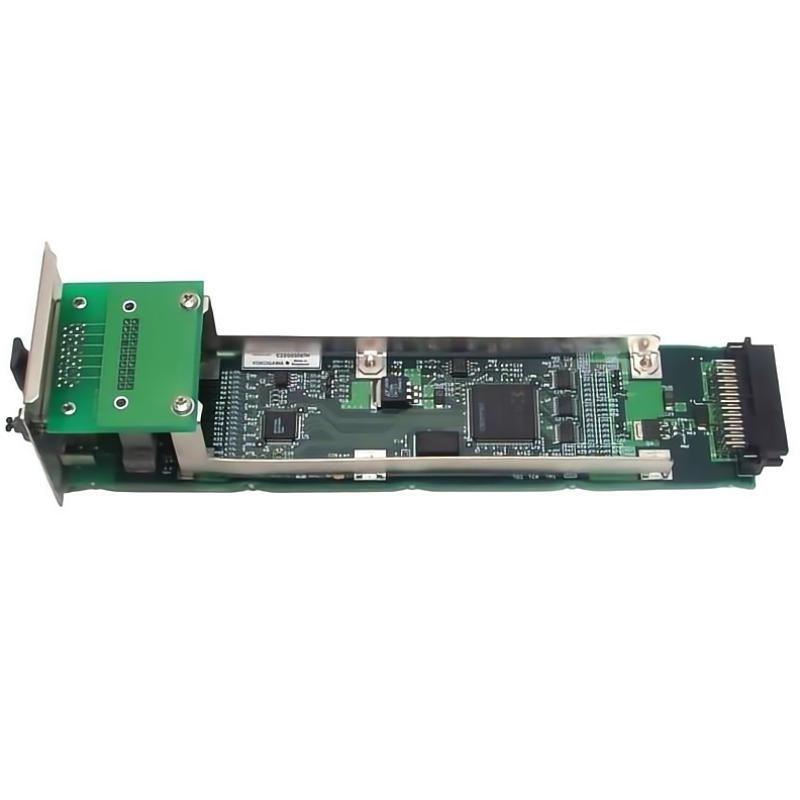

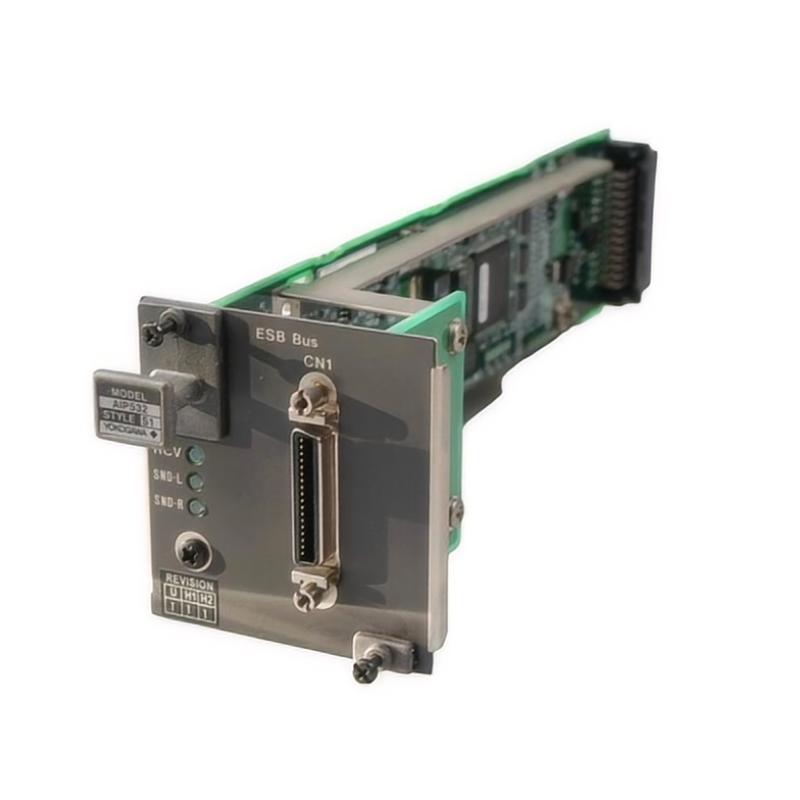

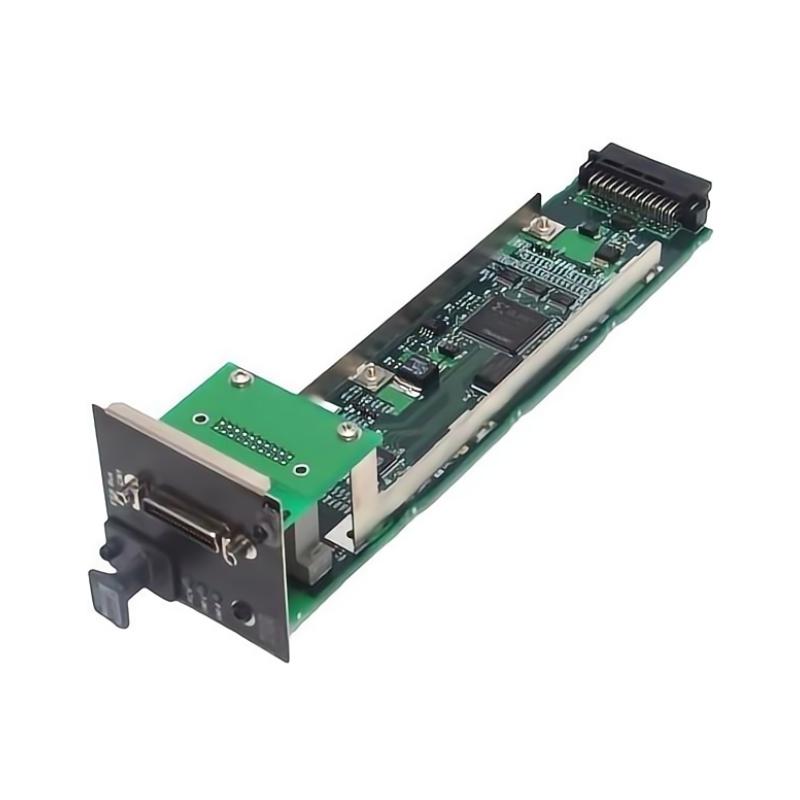

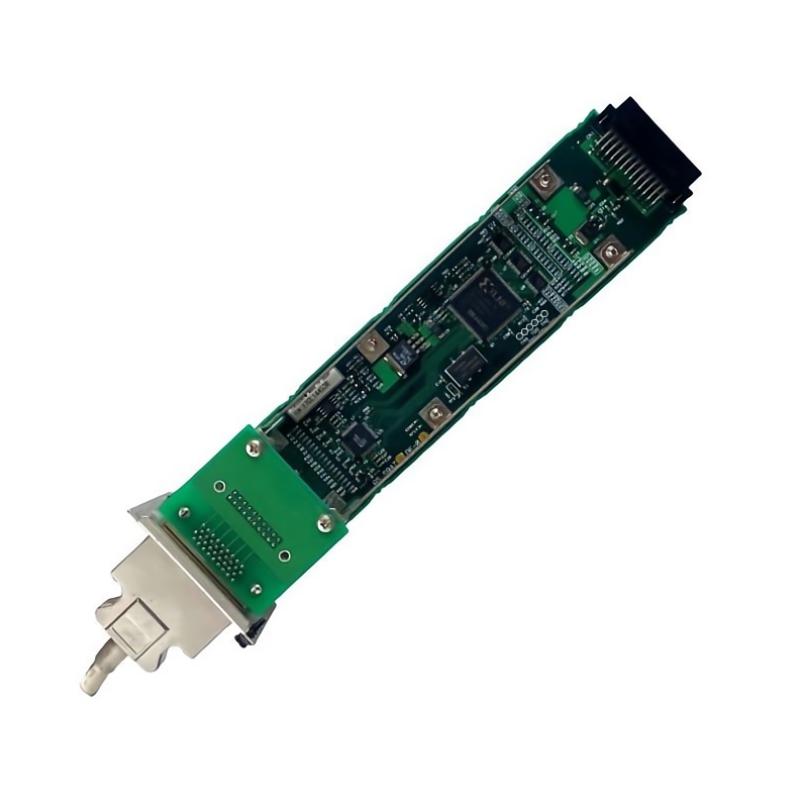

Yokogawa AIP532 ESB Bus Coupler Unit

Overview

The Yokogawa AIP532 is an ESB bus coupler unit designed for industrial automation systems. It enables efficient communication between controllers and field devices over the ESB network, ensuring reliable data transfer, system coordination, and optimized process control in complex industrial environments.

General Information

Part Number: AIP532

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Series: AIP

Type: ESB Bus Coupler Unit

Mounting: Panel or DIN rail installation within control cabinet

Technology: High-speed network coupling, bus interfacing, diagnostic support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via system backplane or external supply

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: LEDs for power, communication, and fault status

Communication & Interface

Interface Type: ESB network interface

Data Transmission: High-speed data exchange between controllers and field devices

Diagnostics: Link supervision, fault detection, and status monitoring

Operator Interface: LED indicators

Reset Features: Soft and hardware reset supported

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 130 × 28 × 130 mm

Weight: ~ 0.15 kg
