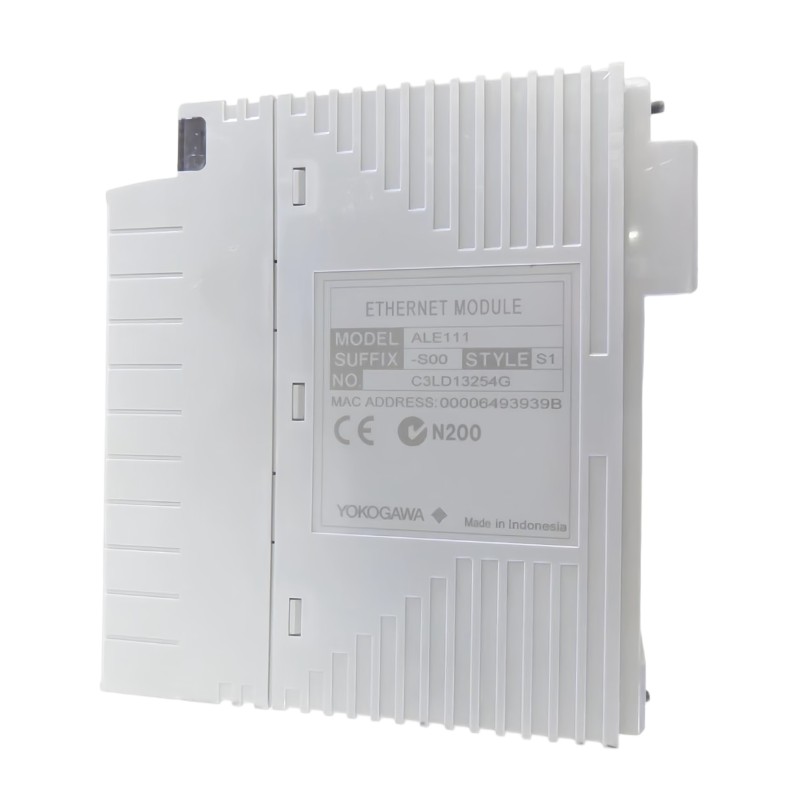

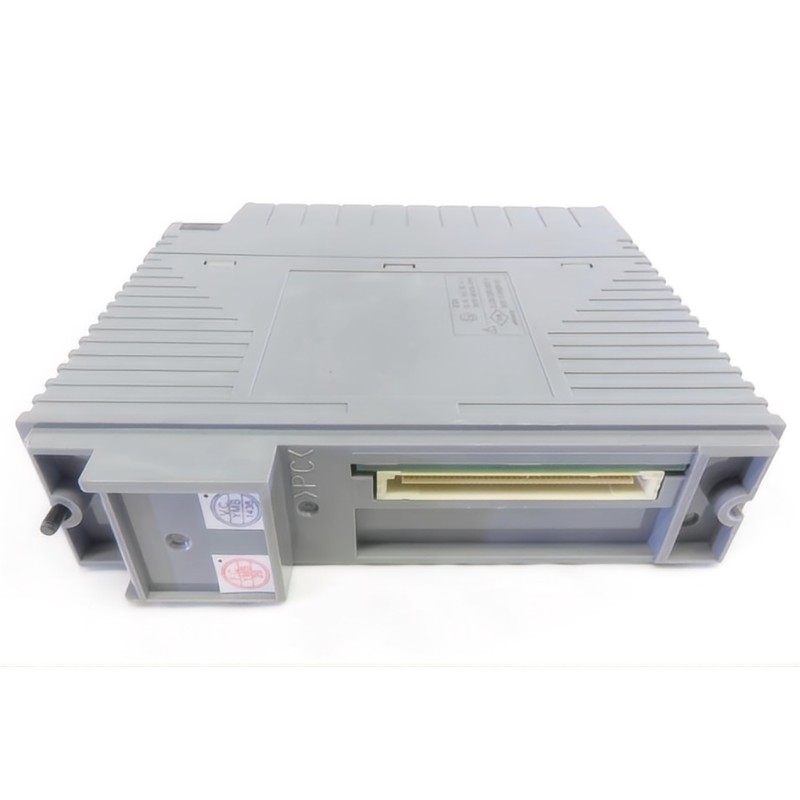

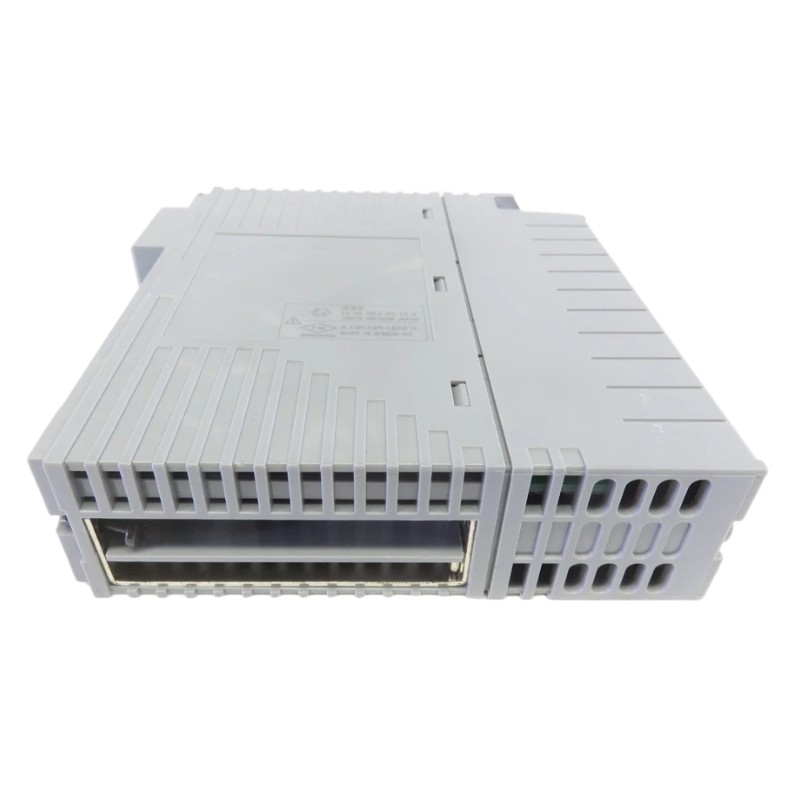

Yokogawa ALE111-S00 Ethernet Communication Module

Overview

The Yokogawa ALE111-S00 is an Ethernet communication module designed for Yokogawa’s control and automation systems. It provides high-speed network connectivity, enabling seamless data exchange between controllers and field devices.

General Information

Part Number: ALE111-S00

Manufacturer / Brand: Yokogawa

Country of Origin: Japan

Series: ALE (Ethernet Communication Module)

Type: Ethernet Communication Module

Mounting: DIN rail or panel installation within control chassis

Technology: Industrial Ethernet interface with integrated diagnostics and status monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered via controller backplane

Protection: Overvoltage, reverse-polarity, and short-circuit protection

Indicators: LEDs for power, network link, and fault status

Communication & Interface

Bus Interface: Backplane connectivity to the main controller

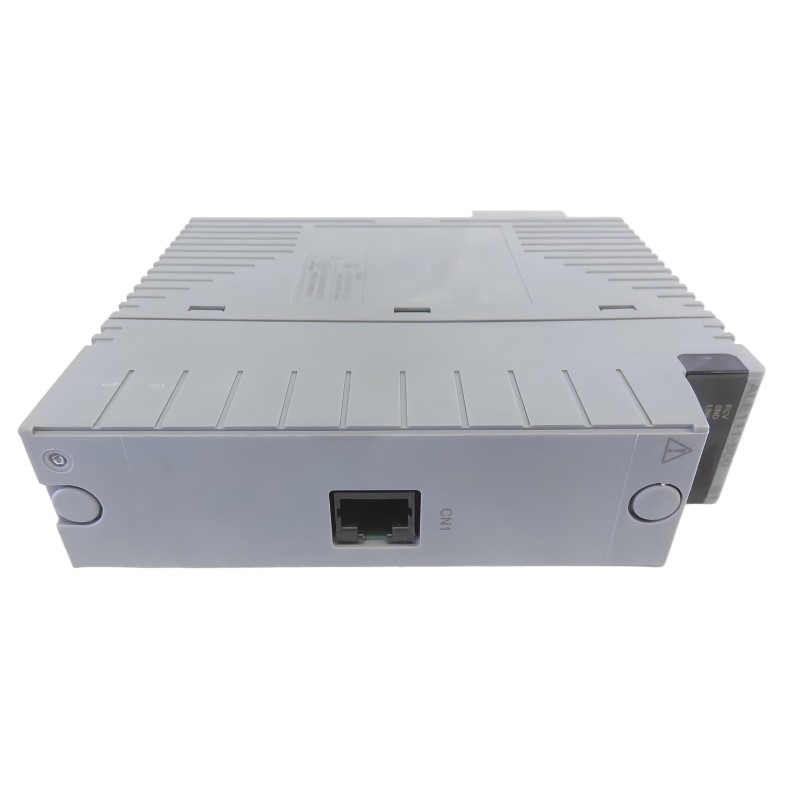

Network Interface: Ethernet port for high-speed communication

Diagnostics: Link supervision, fault detection, and status reporting

Operator Interface: Status LEDs and test points

Reset Features: Supports soft reset via system commands or hardware reset via front panel

Environmental

Operating Temperature: −25 to +70 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (standard industrial environment)

Vibration & Shock: Designed to meet IEC 60068 standards for industrial use

Dimensions & Weight

Dimensions (L × W × H): 130 × 125.5 × 32.8 mm

Weight: ~ 0.3 kg
