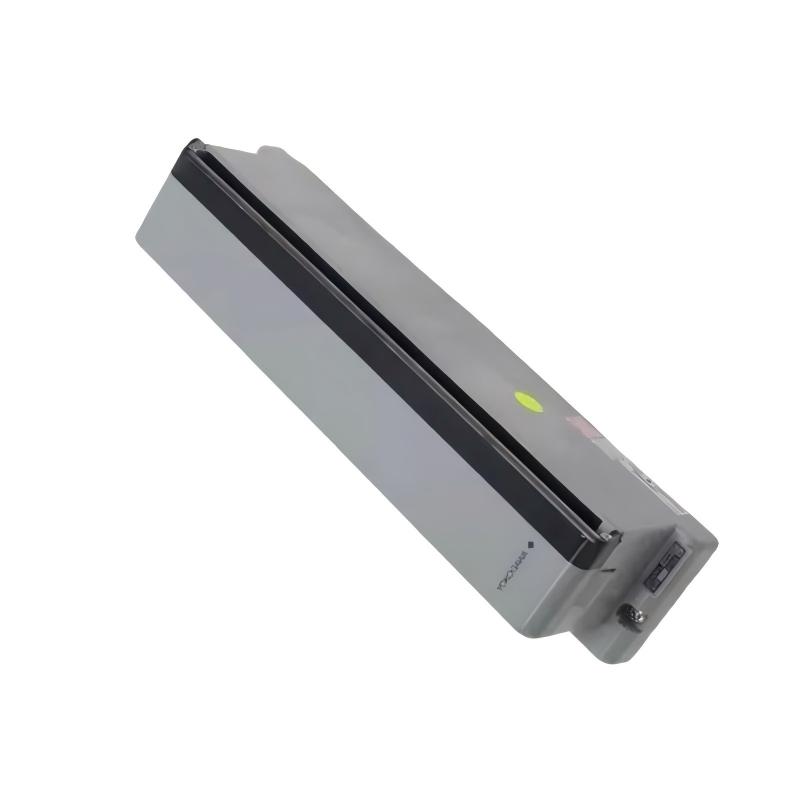

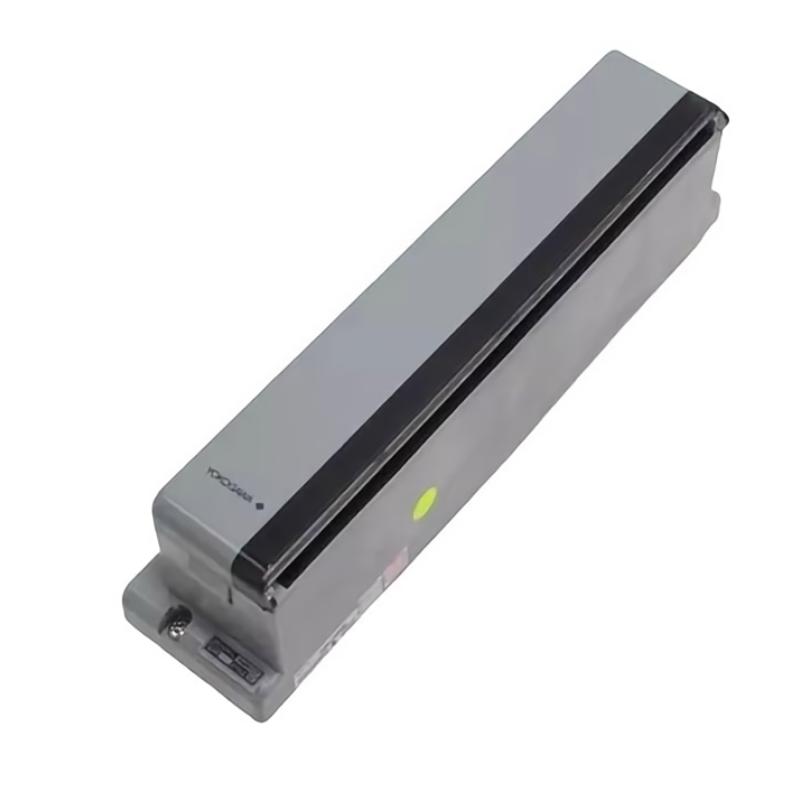

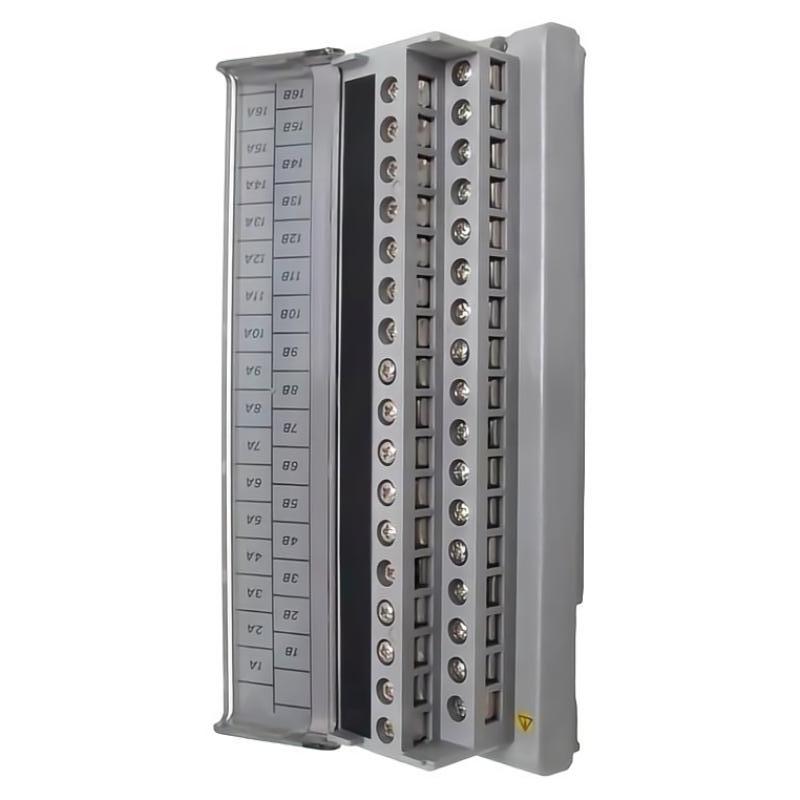

Yokogawa AMM22TJ Multiplexer Module

Overview

The Yokogawa AMM22TJ is a multiplexer module designed for industrial automation and process control systems. It efficiently consolidates multiple input signals into a single output, facilitating streamlined data acquisition and reliable signal management in complex industrial operations.

General Information

Part Number: AMM22TJ

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Series: AMM

Type: Multiplexer Module / Signal Routing

Mounting: Panel or rack installation within control cabinets

Technology: Signal multiplexing, real-time data processing, and channel management

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via system backplane

Protection: Overvoltage, reverse polarity, and short-circuit protection

Indicators: LEDs for power, channel activity, and fault detection

Communication & Interface

Data Interface: Compatible with Yokogawa process control systems

Input Channels: Multiple analog or digital signals

Output Channels: Multiplexed outputs to the controller

Diagnostics: Channel monitoring, error detection, and status reporting

Operator Interface: LED indicators for power and signal status

Reset Features: Supports hardware and software reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for standard industrial panel environments

Dimensions & Weight

Dimensions (L × W × H): 45 × 97 × 103 mm

Weight: 0.3 kg
