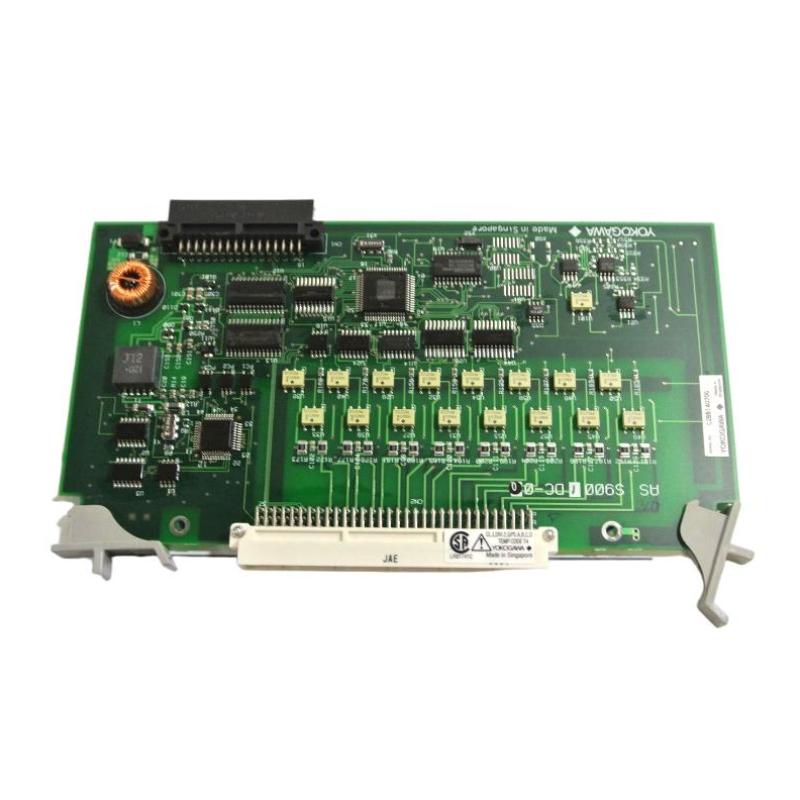

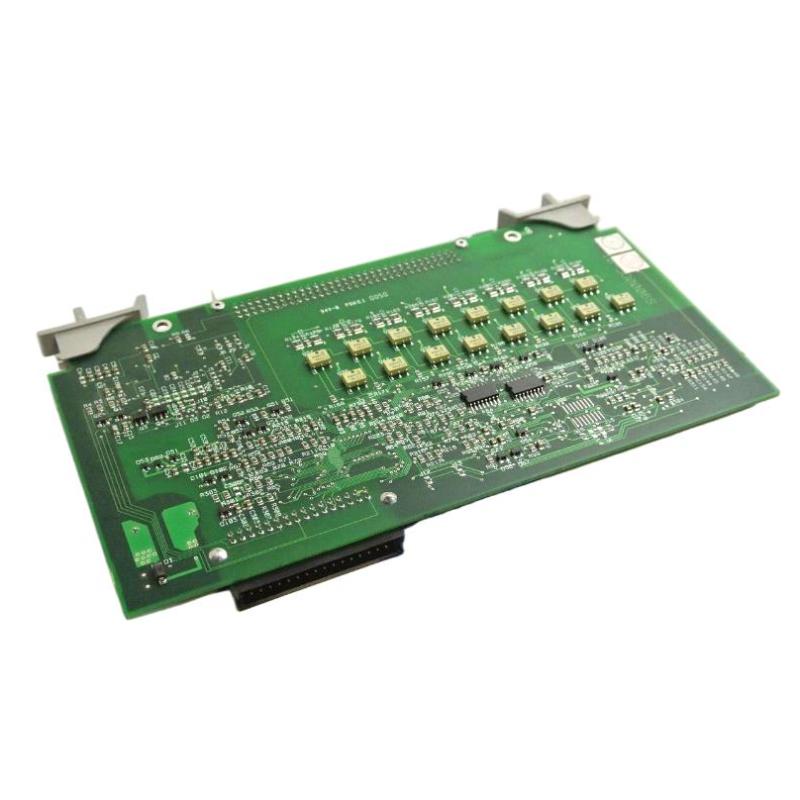

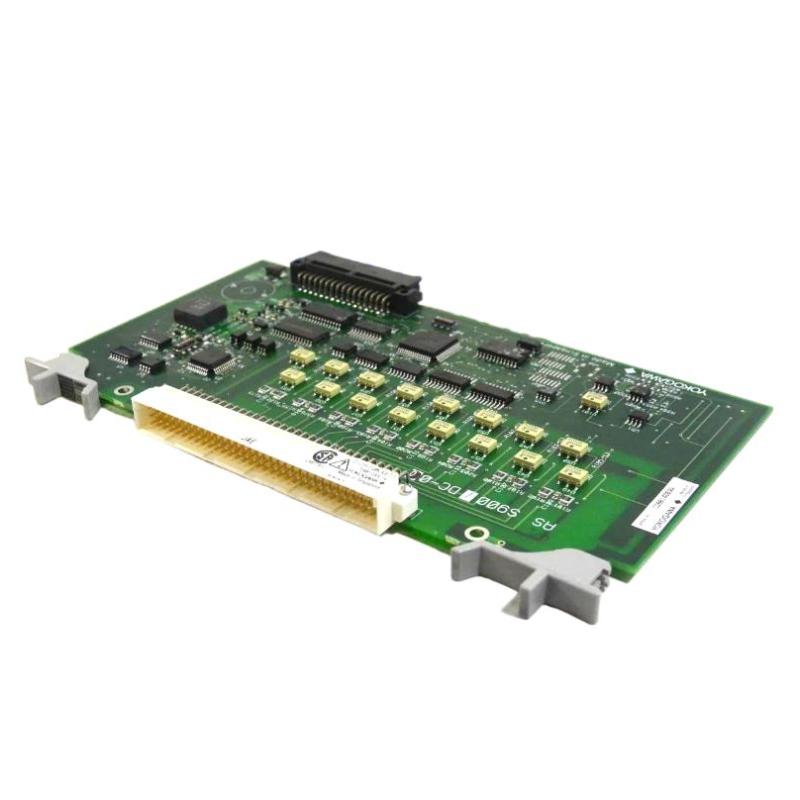

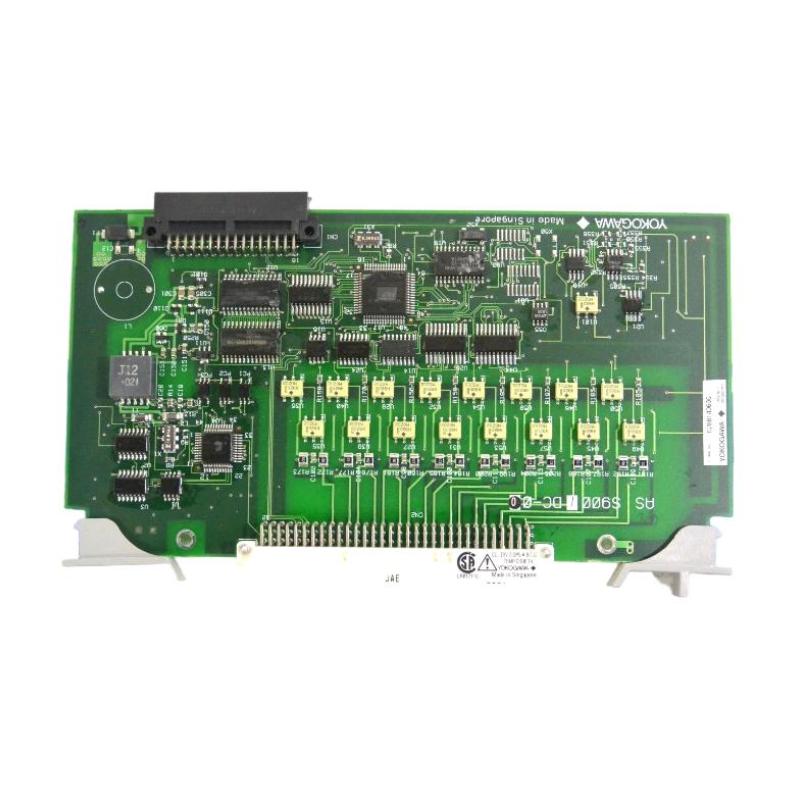

Yokogawa AMM31 Simulation Module

Overview

The Yokogawa AMM31 is a simulation module designed for industrial automation and process control systems. It enables the generation of test signals for system calibration, troubleshooting, and validation, allowing operators to verify system performance without the need for live field inputs.

General Information

Part Number: AMM31

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Series: AMM

Type: Simulation Module / Signal Generator

Mounting: Panel or card slot installation within control cabinets

Technology: Signal simulation, real-time testing, and process validation

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 3 W

Input: Powered via system backplane

Protection: Overvoltage, reverse polarity, and short-circuit protection

Indicators: LEDs for power, output activity, and fault detection

Communication & Interface

Data Interface: Compatible with Yokogawa process control systems

Input Channels: Configurable for simulation parameters

Output Channels: Simulated analog or digital signals to the control system

Diagnostics: Output monitoring, error detection, and status reporting

Operator Interface: LED indicators and configuration switches

Reset Features: Supports hardware and software reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial panel environments

Dimensions & Weight

Dimensions (L × W × H): 140 × 100 × 30 mm

Weight: 0.159 kg
