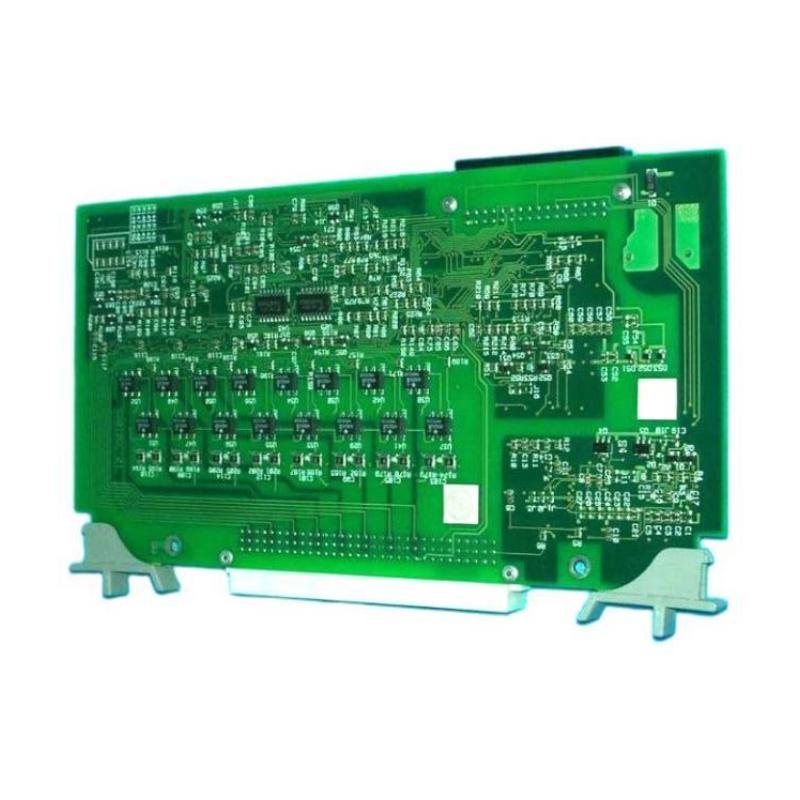

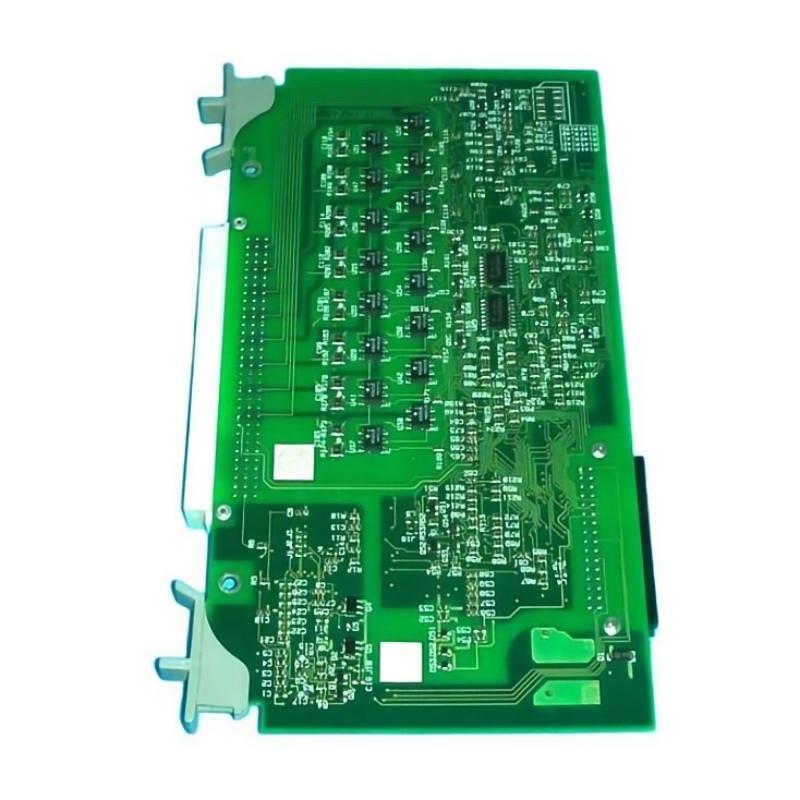

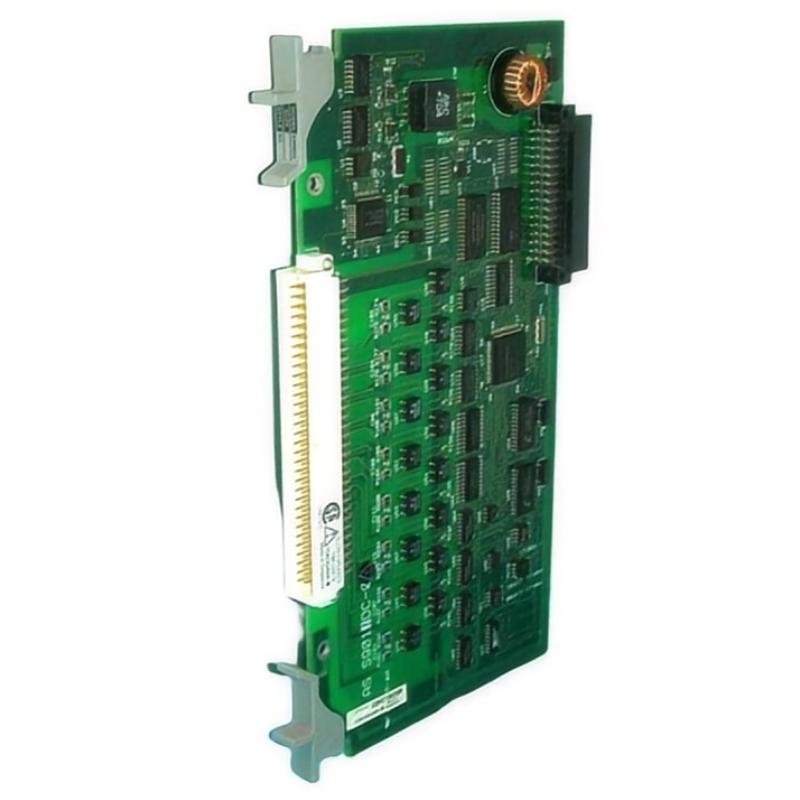

Yokogawa AMM32J S1 RTD Input Multiplexer Module

Overview

The Yokogawa AMM32J S1 is an advanced RTD input multiplexer module designed for Yokogawa process control systems. It allows multiple RTD signals to be multiplexed efficiently and transmitted to the controller, providing accurate and reliable temperature monitoring for complex industrial applications.

General Information

Part Number: AMM32J S1

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Series: AMM

Type: RTD Input Multiplexer Module

Mounting: Rack or panel installation within control system chassis

Technology: RTD signal multiplexing, analog-to-digital conversion, and diagnostic monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 22 W

Protection: Overvoltage and short-circuit protection

Indicators: LED for module status and fault detection

Communication & Interface

Input Channels: Multiple RTD inputs

Interface: Backplane or bus connection to Yokogawa controllers

Diagnostics: Signal integrity checks, fault detection, and status reporting

Operator Interface: LED indicators for channel activity and fault conditions

Reset Features: Supports system-level reset

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or installed within industrial control cabinet

Dimensions & Weight

Dimensions (L × W × H): 125 × 130 × 248 mm

Weight: 2 kg

High-Capacity Multiplexing for Accurate Temperature Control!
