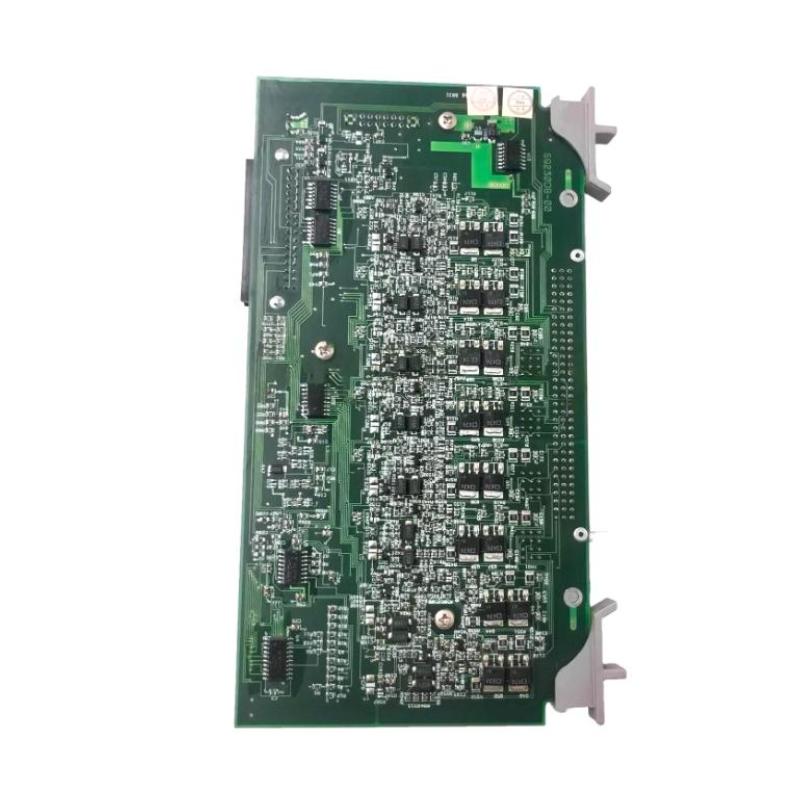

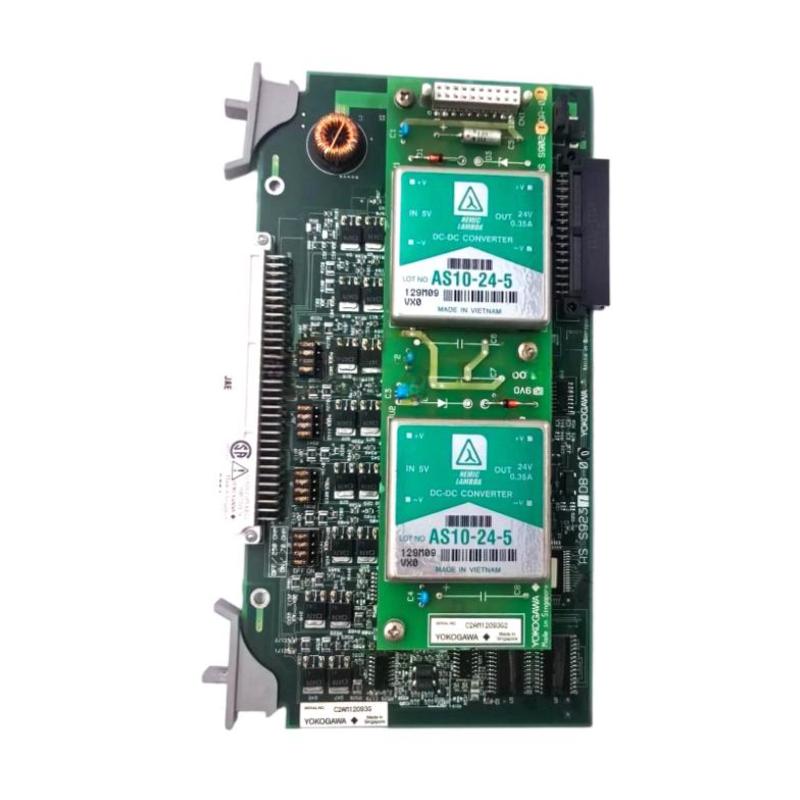

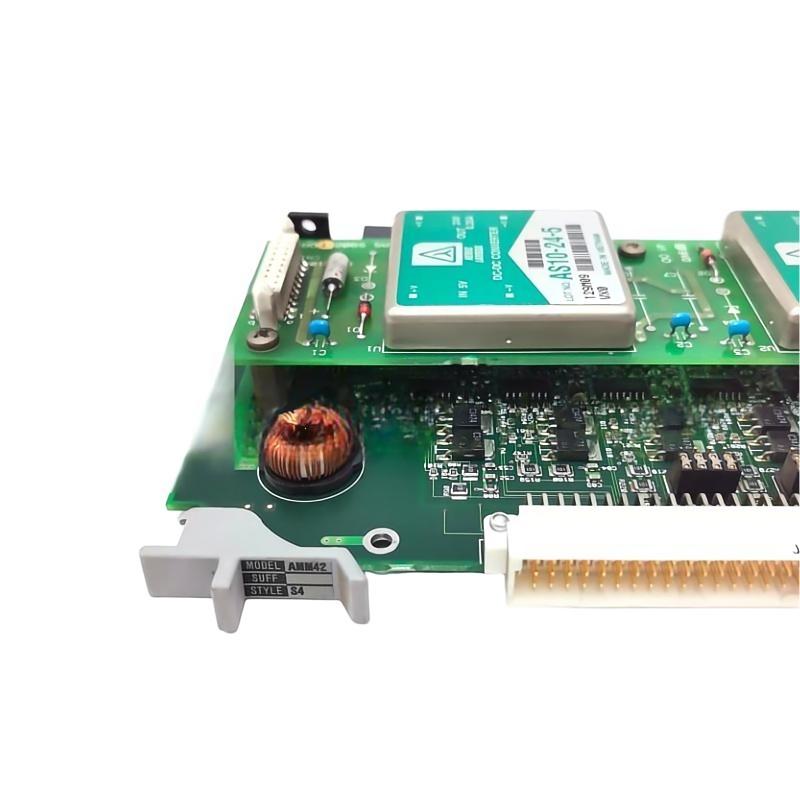

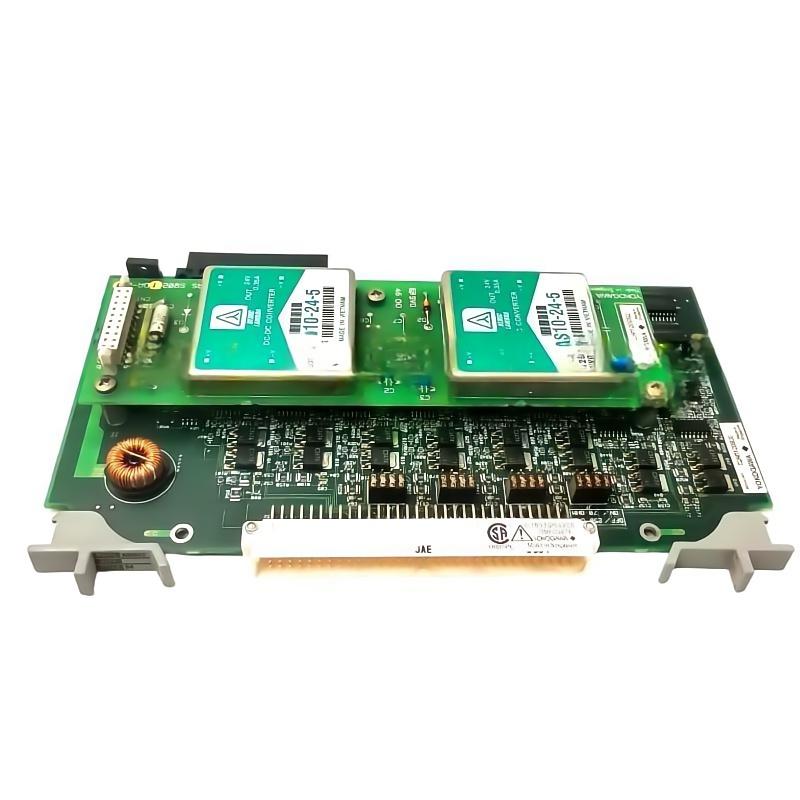

Yokogawa AMM42-S3 Multiplexer Input Module

Overview

The Yokogawa AMM42-S3 is a multiplexer input module designed for Yokogawa process control systems. It efficiently collects multiple analog or digital signals and transmits them to the controller, providing reliable data acquisition and streamlined signal management for industrial automation applications.

General Information

Part Number: AMM42-S3

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Series: AMM

Type: Multiplexer Input Module

Mounting: Rack or panel installation within control system chassis

Technology: Signal multiplexing, analog-to-digital conversion, and diagnostic monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Protection: Overvoltage and short-circuit protection

Indicators: LED for module status and fault detection

Communication & Interface

Input Channels: Multiple analog or digital inputs

Interface: Backplane or bus connection to Yokogawa controllers

Diagnostics: Signal integrity checks, fault detection, and status reporting

Operator Interface: LED indicators for input activity and fault conditions

Reset Features: Supports system-level reset

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or installed within industrial control cabinet

Dimensions & Weight

Dimensions (L × W × H): 150 × 90 × 60 mm

Weight: 0.5 kg

Streamlined Multiplexing for Reliable Control!
