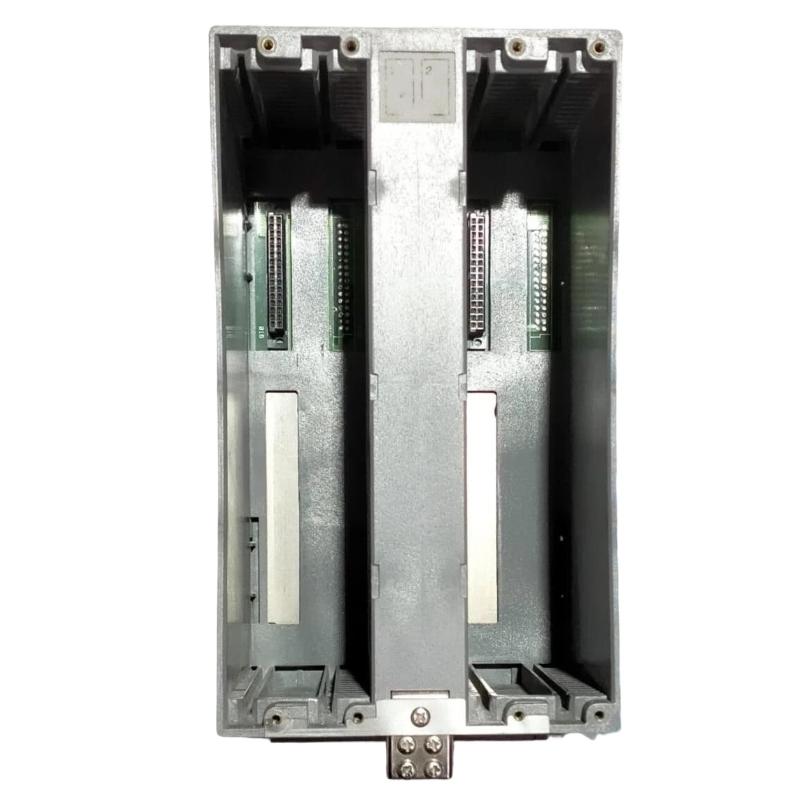

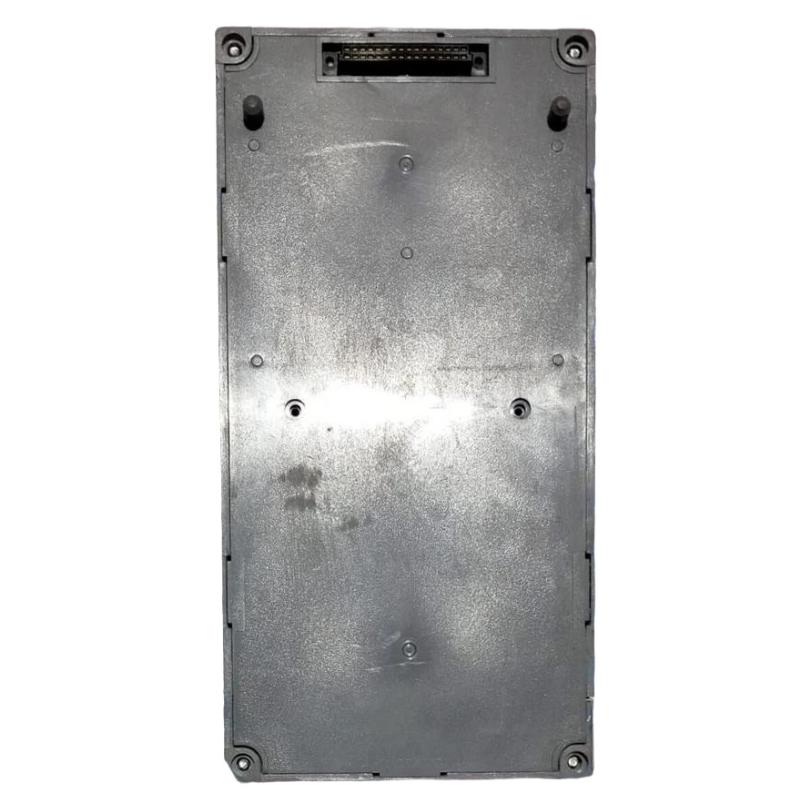

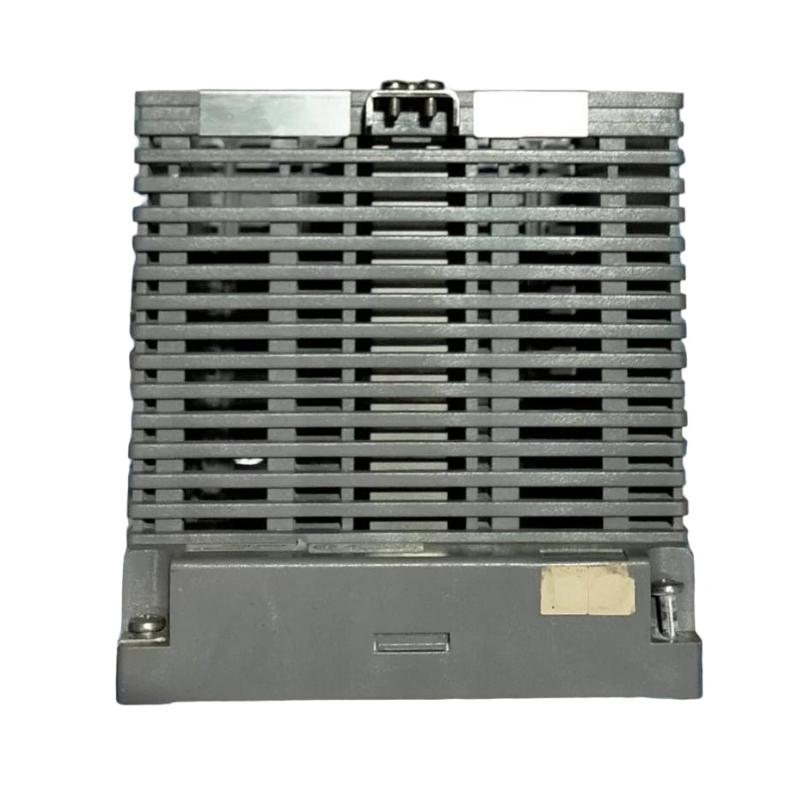

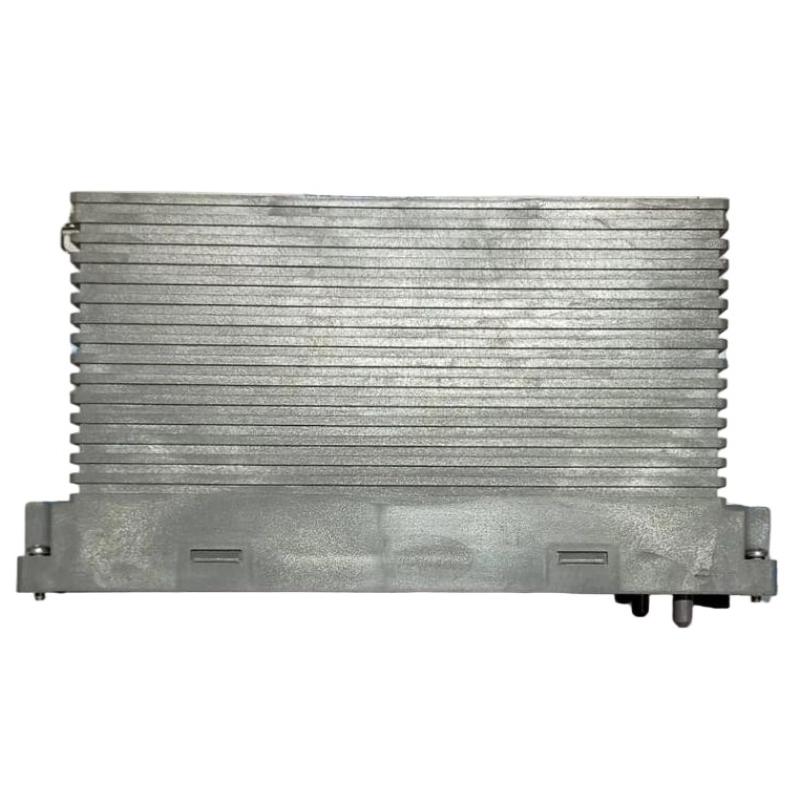

Yokogawa AMN34 Multi-Point Control Analog I/O Module Rack

Overview

The Yokogawa AMN34 is a multi-point control analog I/O module rack designed for industrial process control systems. It provides reliable analog signal acquisition and output, allowing precise control and monitoring of multiple field devices in real-time.

General Information

Model Number: AMN34

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Series: AMN Series

Type: Multi-point Analog I/O Module Rack

Application: Analog signal acquisition, output, and centralized I/O management

Mounting: Panel or cabinet installation

Technology: Modular analog I/O with integrated diagnostics and flexible configuration

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: System-dependent based on connected modules

Input Power Source: Provided via system backplane

Protection: Overvoltage and reverse polarity protection

Indicators: LED indicators for module status, power, and fault detection

Communication & Interface

Backplane Interface: Supports multiple analog I/O modules

Signal Handling: High-accuracy analog signal acquisition and output

Diagnostics: Module presence detection, connection monitoring, and fault reporting

Configuration: Flexible software configuration via host control system

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 when installed in industrial cabinet

Vibration Resistance: Designed for industrial operation environments

Dimensions & Weight

Dimensions (L × W × H): 450 × 200 × 100 mm

Weight: 2.5 kg
