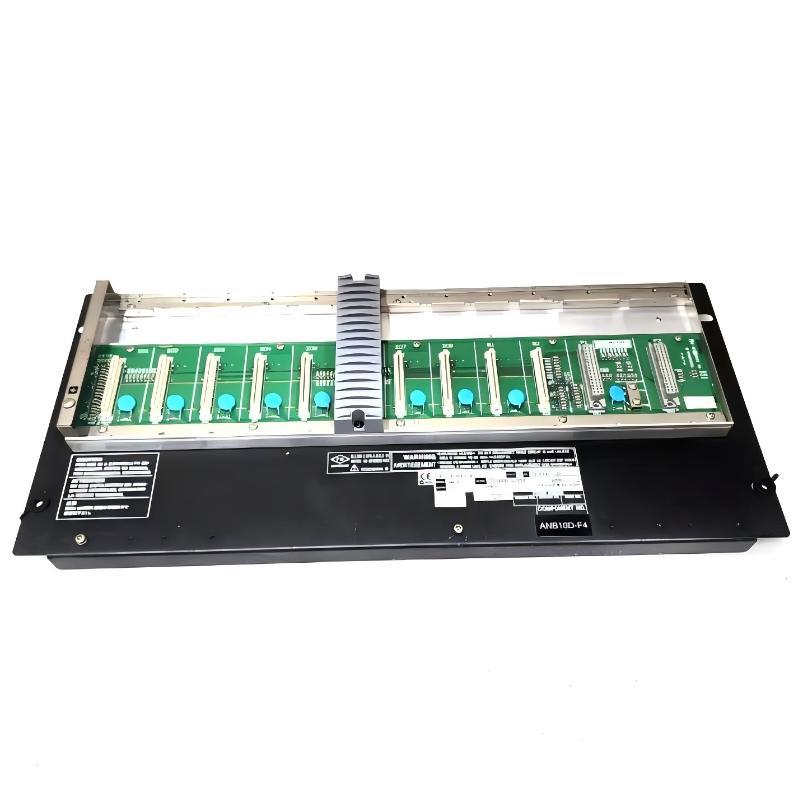

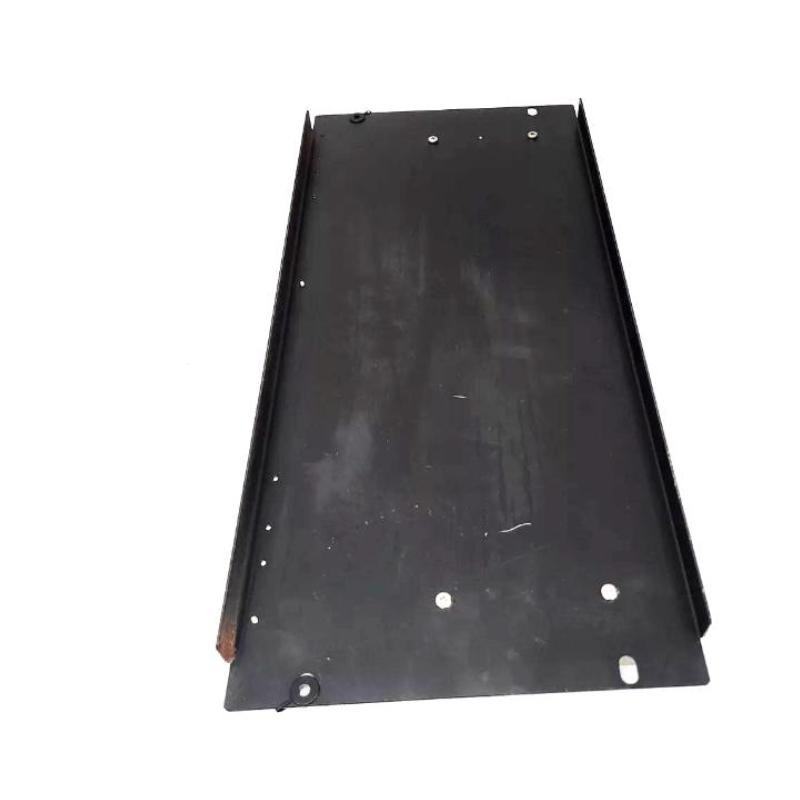

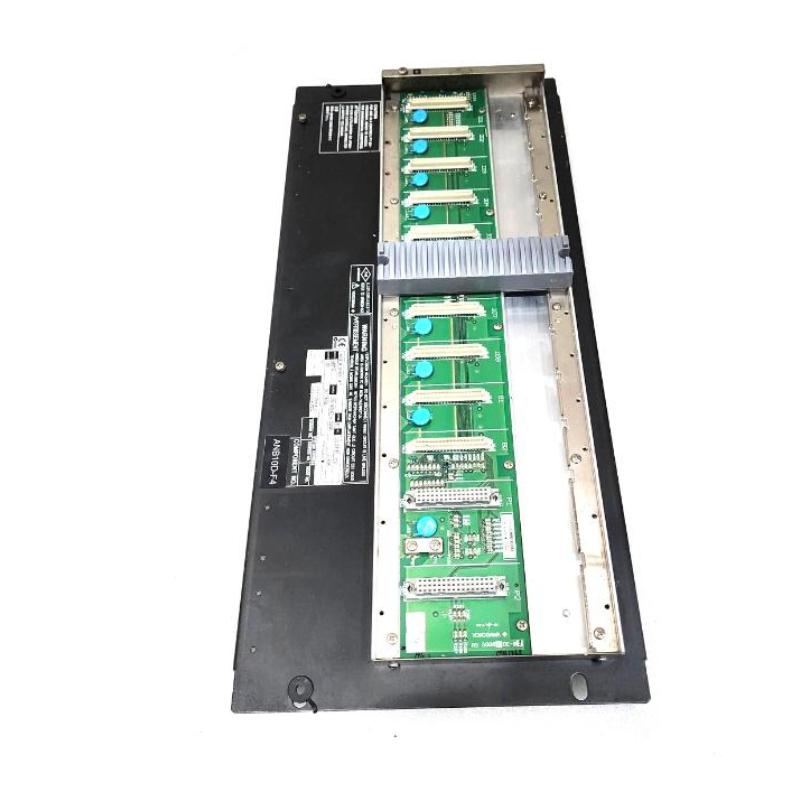

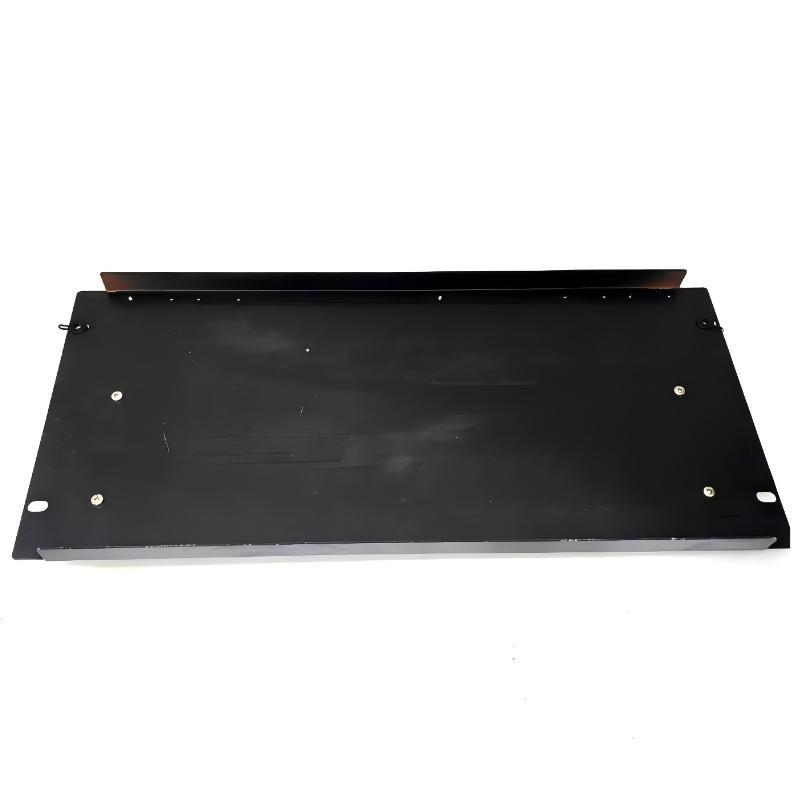

Yokogawa ANB10D-125/CU2T ESB Bus Node Unit

Overview

The Yokogawa ANB10D-125/CU2T is a robust ESB bus node unit designed for industrial automation networks. It facilitates high-speed communication and data routing between distributed I/O modules and central control systems, ensuring reliable network performance and seamless integration.

General Information

Model Number: ANB10D-125/CU2T

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Series: ANB Series

Type: ESB Bus Node Unit

Application: Network communication and data management in industrial automation

Mounting: Panel or cabinet installation

Technology: Industrial-grade bus node with secure connectivity and integrated diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: System-dependent

Input Power Source: Provided via ESB network or dedicated DC input

Protection: Overvoltage, reverse polarity, and short-circuit protection

Indicators: LED indicators for power, network activity, and fault conditions

Communication & Interface

Network Interface: ESB bus for communication with controllers and I/O modules

Signal Handling: High-speed, reliable data transmission with error checking

Diagnostics: Node health monitoring, connection verification, and fault reporting

Configuration: Configurable via Yokogawa network management software

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 when installed in industrial cabinets

Vibration Resistance: Built for rugged industrial environments

Dimensions & Weight

Dimensions (L × W × H): 482.6 × 221.5 × 205 mm

Weight: 10 kg

High-Speed Industrial Networking – Ready to Ship!
