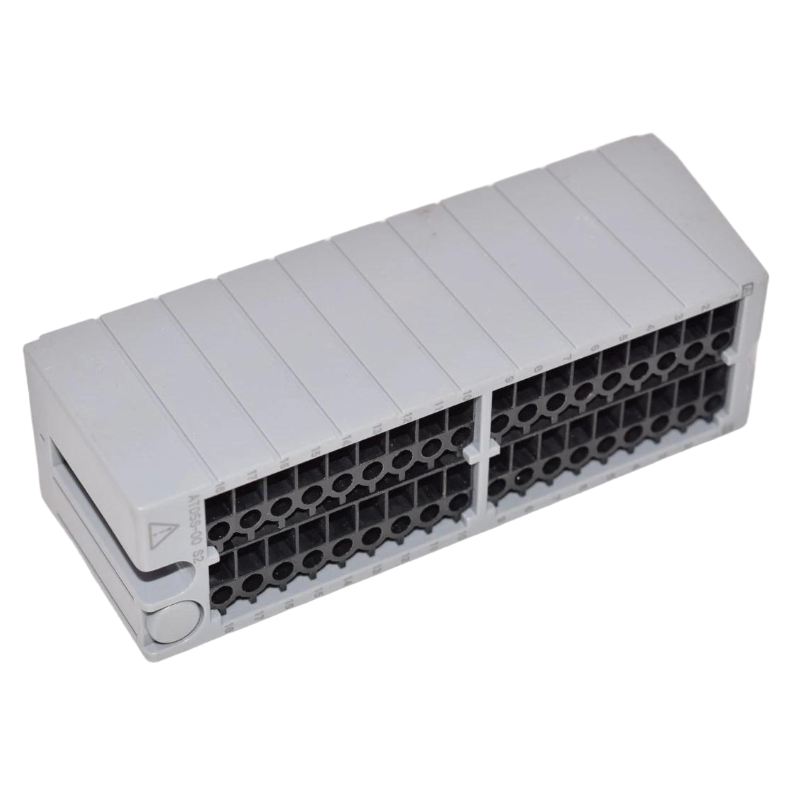

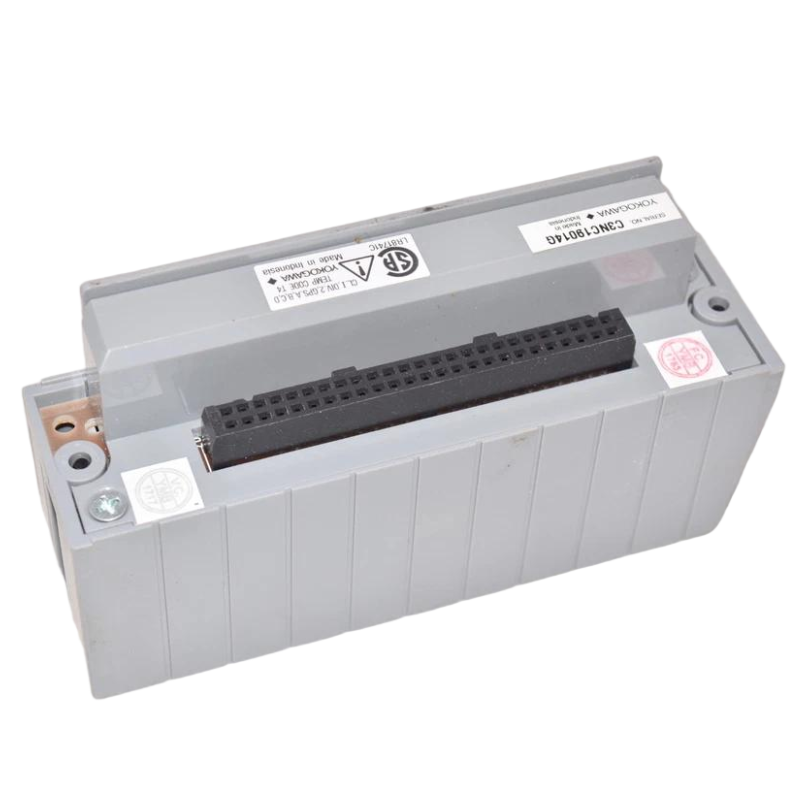

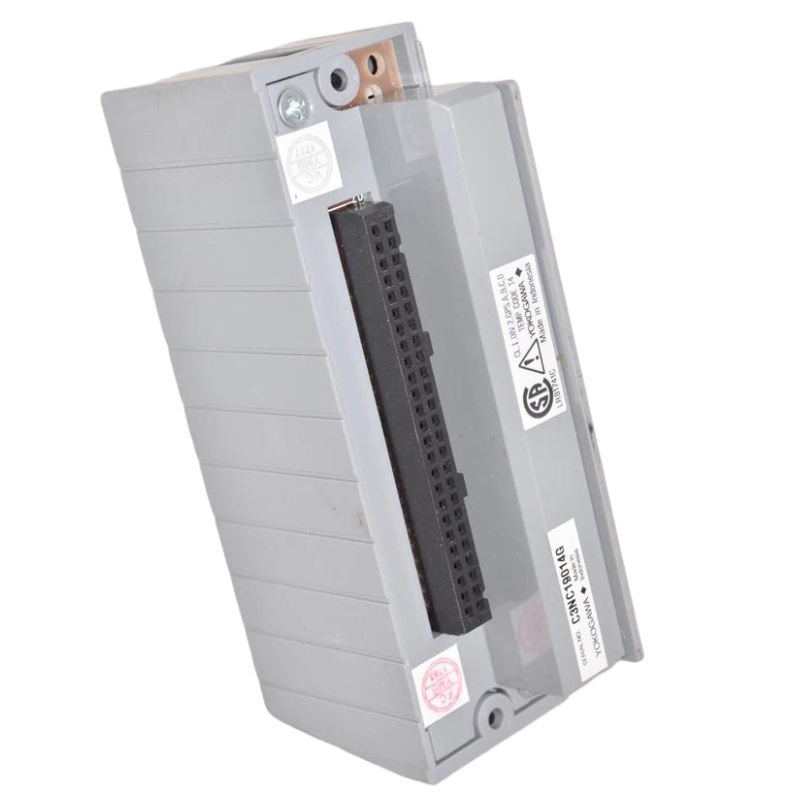

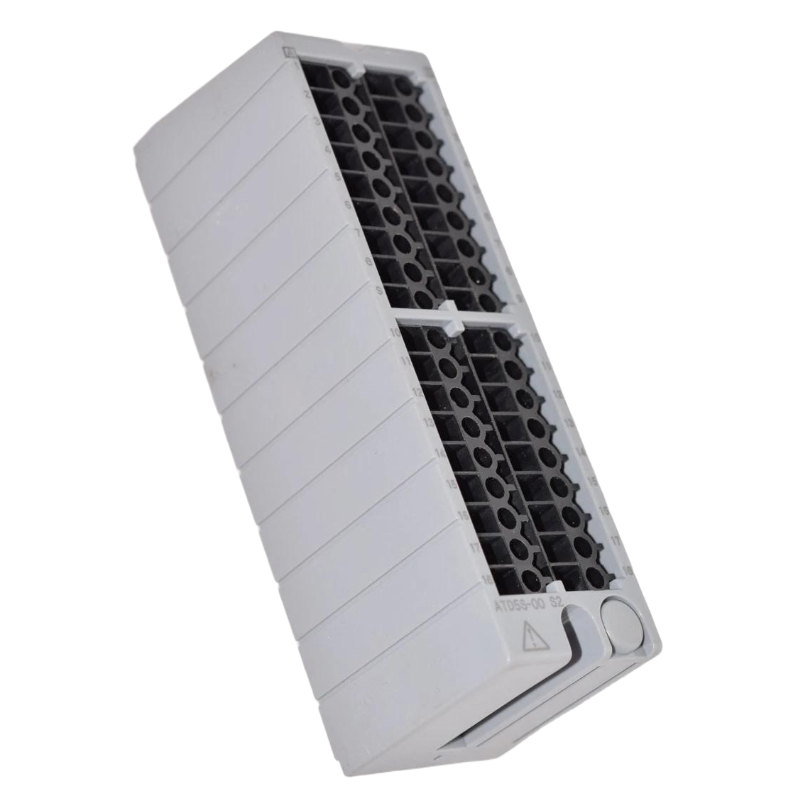

Yokogawa ATD5S-00 Pressure Clamp Terminal Blocks

Overview

The Yokogawa ATD5S-00 is a pressure clamp terminal block designed for secure and reliable electrical connections in industrial automation systems. It provides consistent contact pressure, reducing signal loss and ensuring stable operation in critical control applications.

General Information

Part Number: ATD5S-00

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Type: Pressure Clamp Terminal Blocks

Mounting: DIN rail mount or panel installation

Construction: Industrial-grade housing with durable conductive materials

Compatibility: Compatible with Yokogawa controllers, measurement devices, and field wiring systems

Power Specifications

Rated Voltage: Industry standard for control and signal circuits

Current Rating: Designed for typical control and signal wiring loads

Terminal Type: Pressure clamp for secure, maintenance-free connections

Protection: Resistant to vibration and mechanical stress

Communication & Interface

Interface Type: Electrical signal termination for field wiring

Signal Integrity: Maintains reliable and low-resistance connections

Diagnostics: Supports visual inspection of secure connections

Operator Interface: Screwless clamp for quick installation and removal

Compatibility Features: Integrates with Yokogawa automation and control systems

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Suitable for industrial environments

Durability: Resistant to mechanical wear and electrical corrosion

Dimensions & Weight

Dimensions (L × W × H): 114 × 32.6 × 60.5 mm

Weight: 0.2 kg
