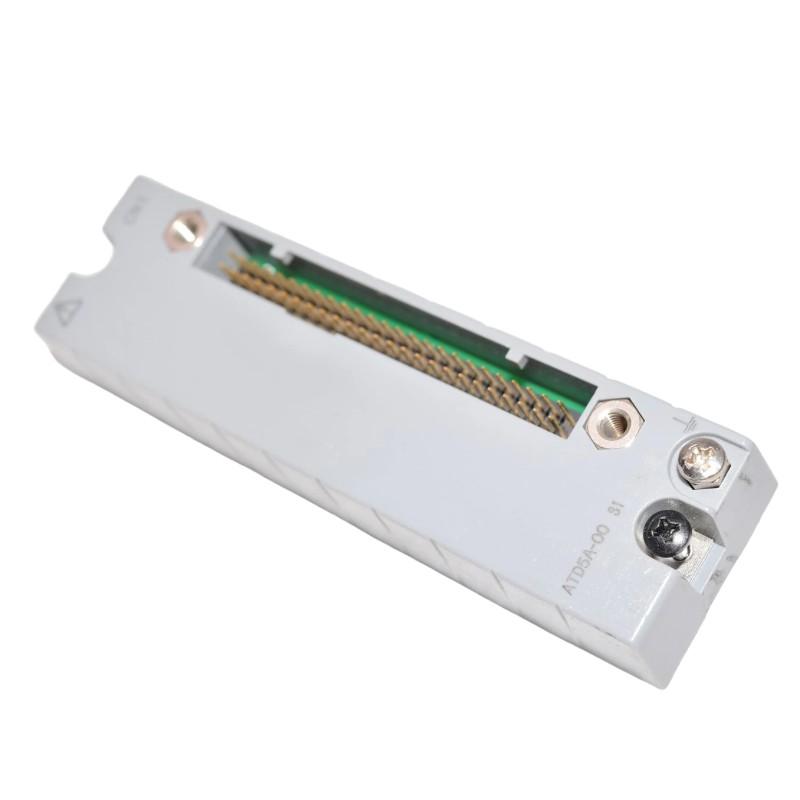

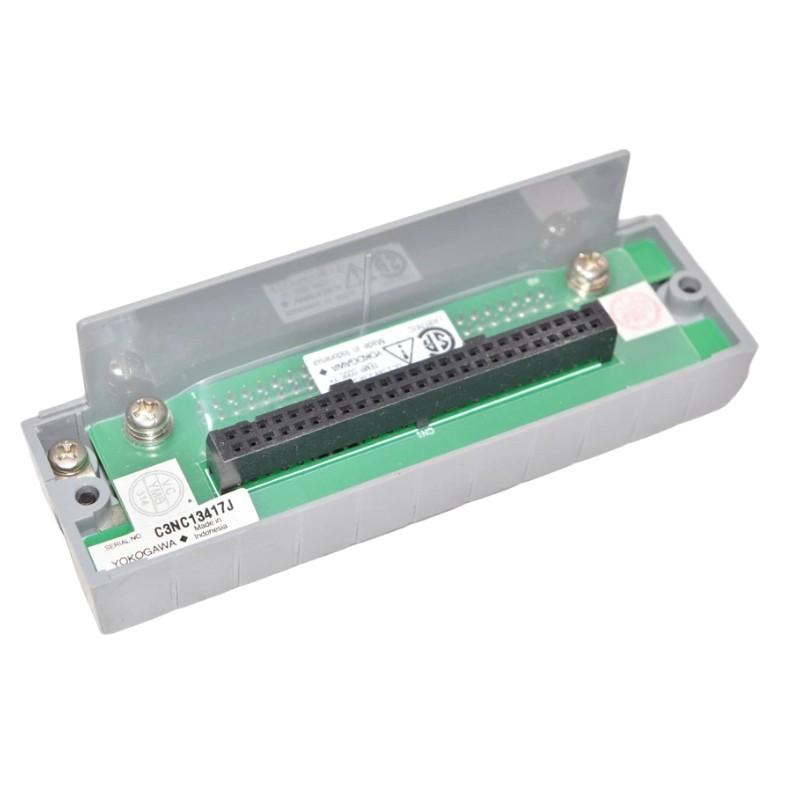

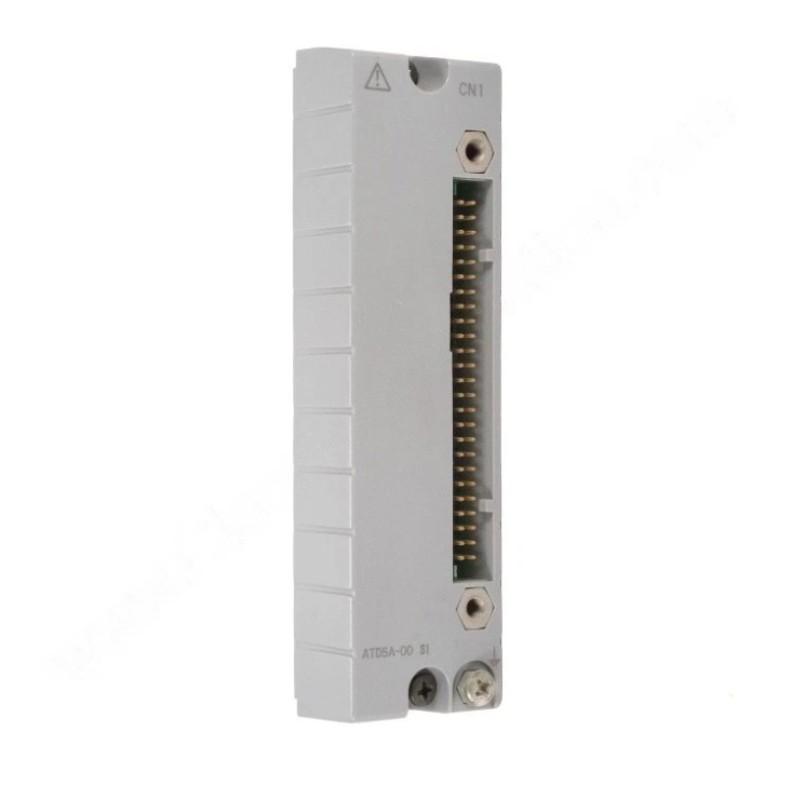

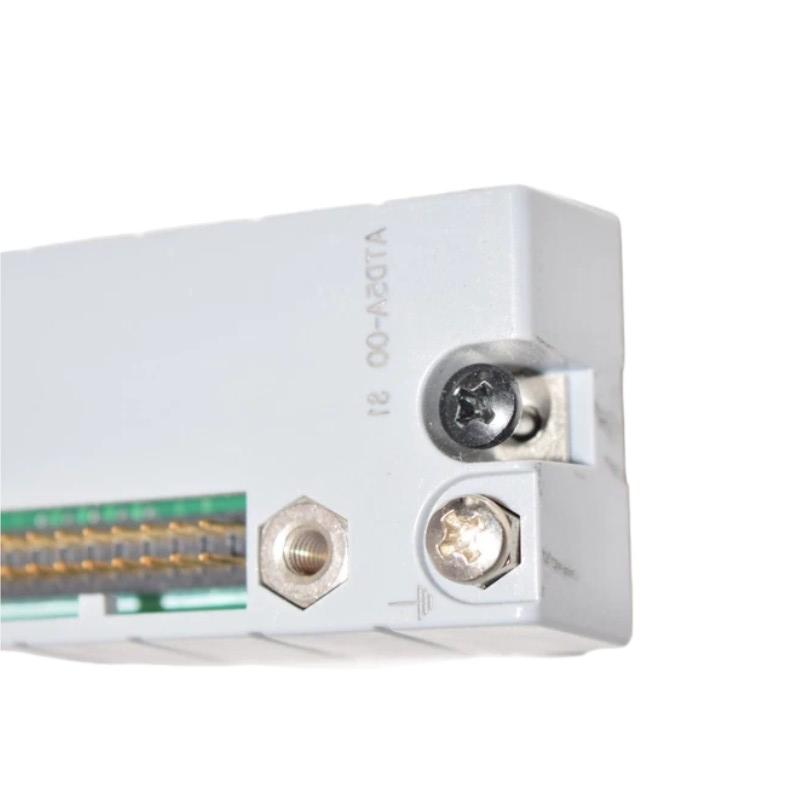

Yokogawa ATD5T-00 Pressure Clamp Terminal Blocks

Overview

The Yokogawa ATD5T-00 is a pressure clamp terminal block engineered for secure and reliable electrical connections in industrial automation systems. It provides consistent contact pressure for stable signal transmission and reduces maintenance requirements in critical control applications.

General Information

Part Number: ATD5T-00

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Type: Pressure Clamp Terminal Blocks

Mounting: DIN rail mount or panel installation

Construction: Industrial-grade housing with durable conductive materials

Compatibility: Compatible with Yokogawa controllers, field instruments, and automation wiring systems

Power Specifications

Rated Voltage: Standard control and signal circuit voltage

Current Rating: Suitable for typical control and signal wiring loads

Terminal Type: Pressure clamp for secure, maintenance-free connections

Protection: Resistant to vibration and mechanical stress

Communication & Interface

Interface Type: Electrical signal termination for field wiring

Signal Integrity: Maintains low-resistance, reliable connections

Diagnostics: Visual inspection of secure connections

Operator Interface: Screwless clamp for easy installation and removal

Compatibility Features: Integrates seamlessly with Yokogawa automation and control systems

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Industrial-grade vibration and shock resistance

Durability: Resistant to mechanical wear and electrical corrosion

Dimensions & Weight

Dimensions (L × W × H): 114 × 32.6 × 60.5 mm

Weight: 0.2 kg

Reliable Wiring, Built to Last!
