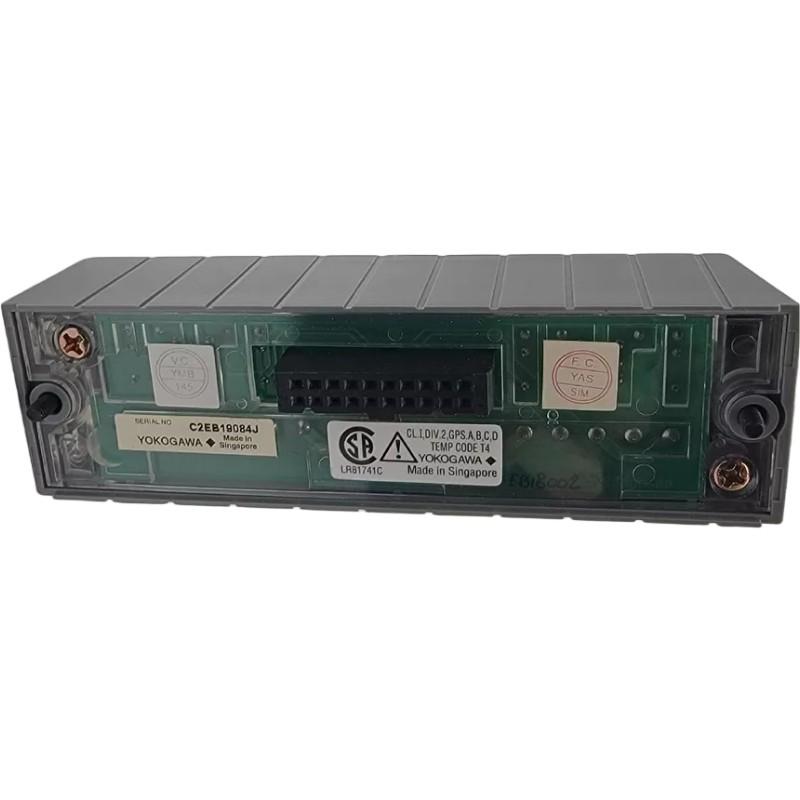

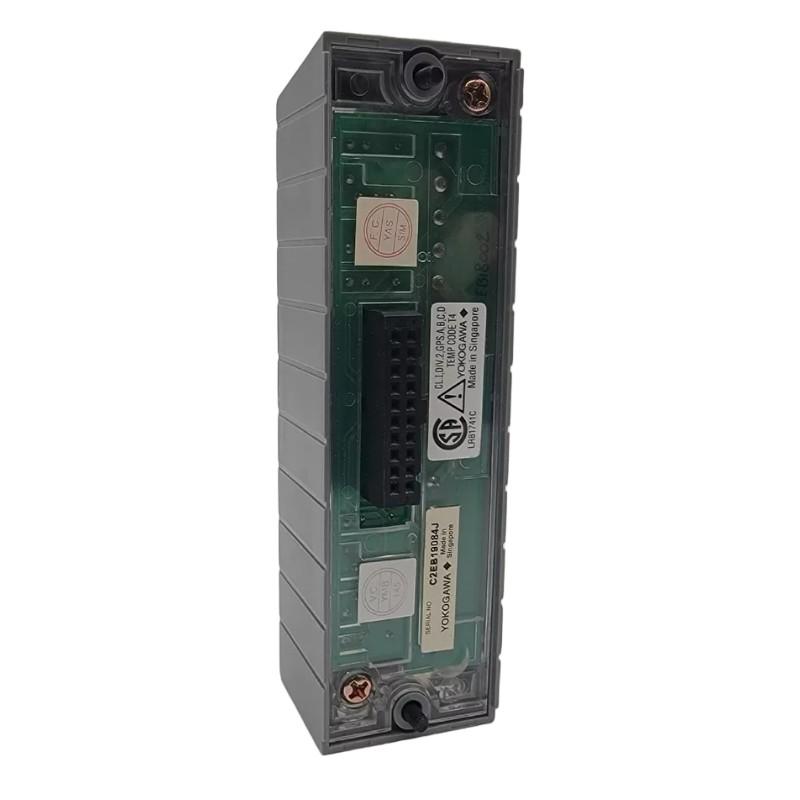

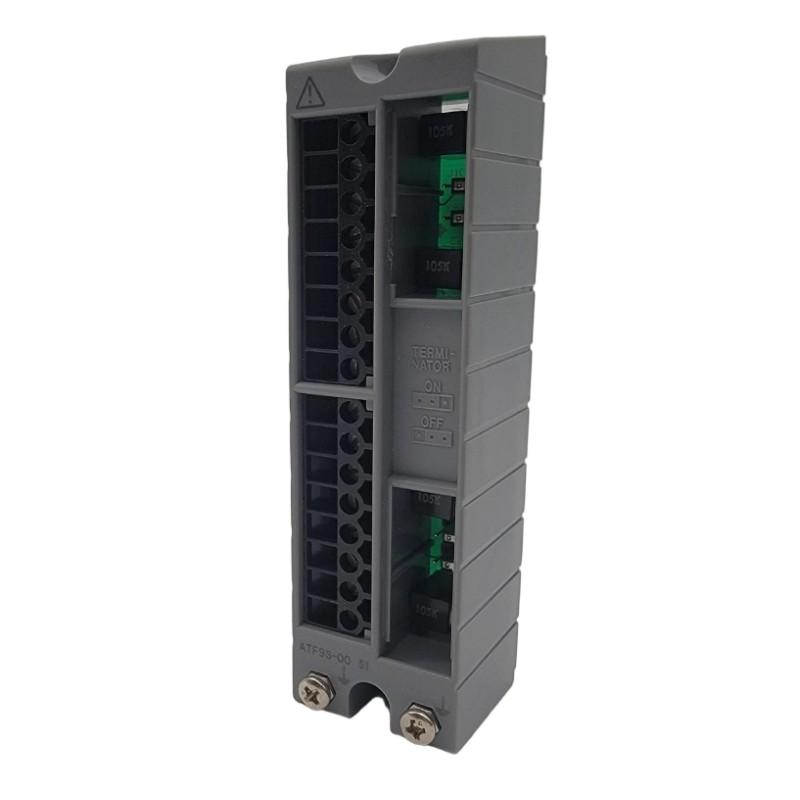

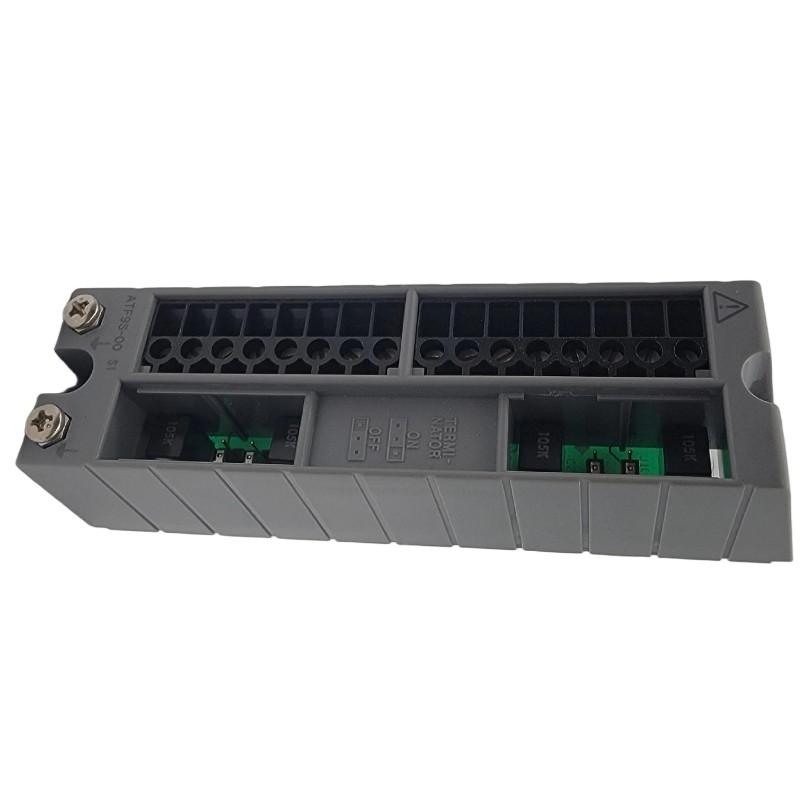

Yokogawa ATF9S-00 Pressure Clamp Terminal Blocks

Overview

The Yokogawa ATF9S-00 is a precision-engineered pressure clamp terminal block designed for reliable electrical connections in industrial control systems. It ensures stable signal transmission and minimizes maintenance with its consistent contact pressure design.

General Information

Part Number: ATF9S-00

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Type: Pressure Clamp Terminal Blocks

Mounting: DIN rail mount or panel installation

Construction: Industrial-grade housing with high-quality conductive materials

Compatibility: Compatible with Yokogawa controllers, field instruments, and automation wiring systems

Power Specifications

Rated Voltage: Standard for control and signal circuits

Current Rating: Suitable for typical control and signal wiring loads

Terminal Type: Pressure clamp for secure, maintenance-free connections

Protection: Resistant to vibration and mechanical stress

Communication & Interface

Interface Type: Electrical signal termination for field wiring

Signal Integrity: Maintains low-resistance, reliable connections

Diagnostics: Supports visual inspection of secure connections

Operator Interface: Screwless clamp for fast installation and removal

Compatibility Features: Seamlessly integrates with Yokogawa automation and control systems

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Industrial-grade vibration and shock resistance

Durability: Resistant to mechanical wear and electrical corrosion

Dimensions & Weight

Dimensions (L × W × H): 112 × 35.2 × 32.6 mm

Weight: 0.1 kg

Compact, Reliable, and Maintenance-Free!
