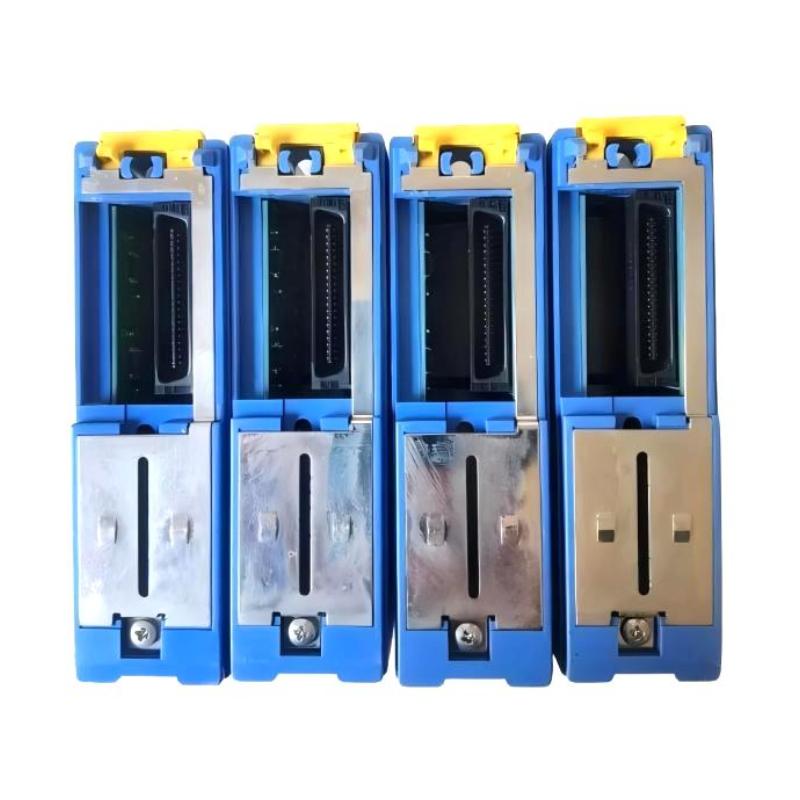

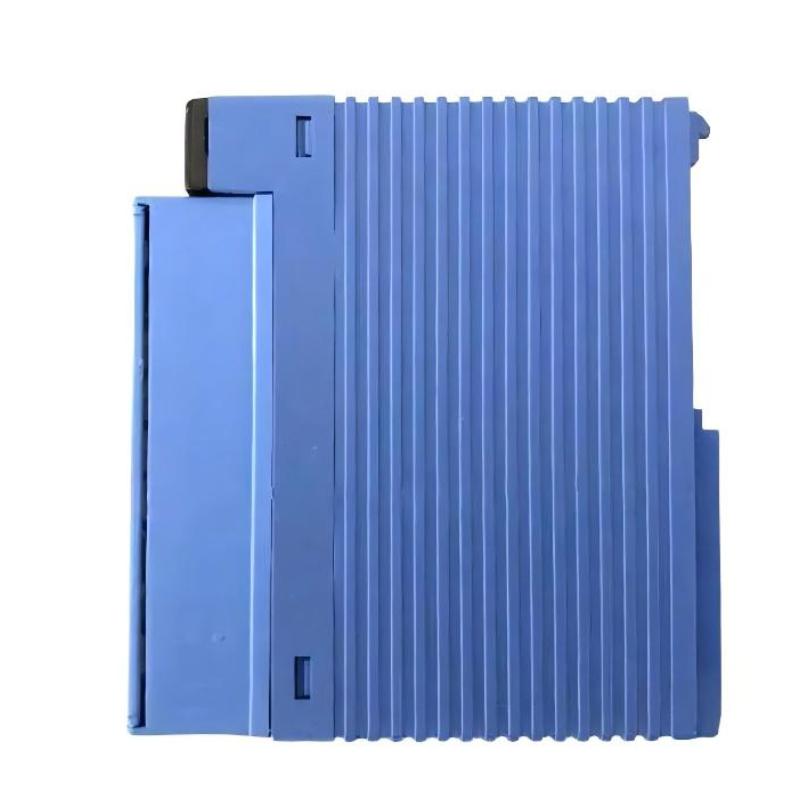

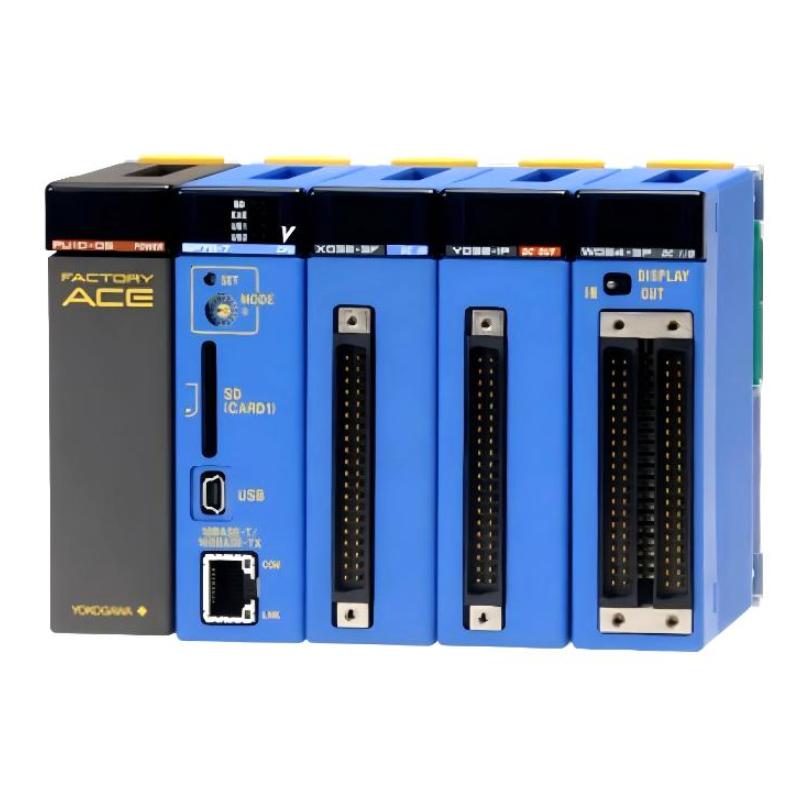

Yokogawa F3AD08-5V Analog Input Module

Overview

The Yokogawa F3AD08-5V is an analog input module designed for industrial automation and control systems. It captures and converts analog signals from field devices into digital data, enabling accurate monitoring and control within Yokogawa F3 series systems.

General Information

Part Number: F3AD08-5V

Manufacturer: Yokogawa / Japan

Series: F3A

Type: Analog Input Module

Mounting: DIN rail or rack installation within control panels

Technology: High-resolution analog signal acquisition with integrated noise filtering and signal conditioning

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Protection: Overvoltage and short-circuit protection

Indicators: LEDs for power and module status

Communication & Interface

Interface: Connects to Yokogawa F3 series control systems

Signal Type: Analog inputs (voltage or current)

Diagnostics: Signal validation, error detection, and operational status monitoring

Operator Interface: LED indicators for operational and fault conditions

Reset Features: Supports system-controlled reset

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: IEC 60068-2 compliant

Protection Rating: IP20, suitable for industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 28.9 × 100 × 106.1 mm

Weight: 0.2 kg
