Overview

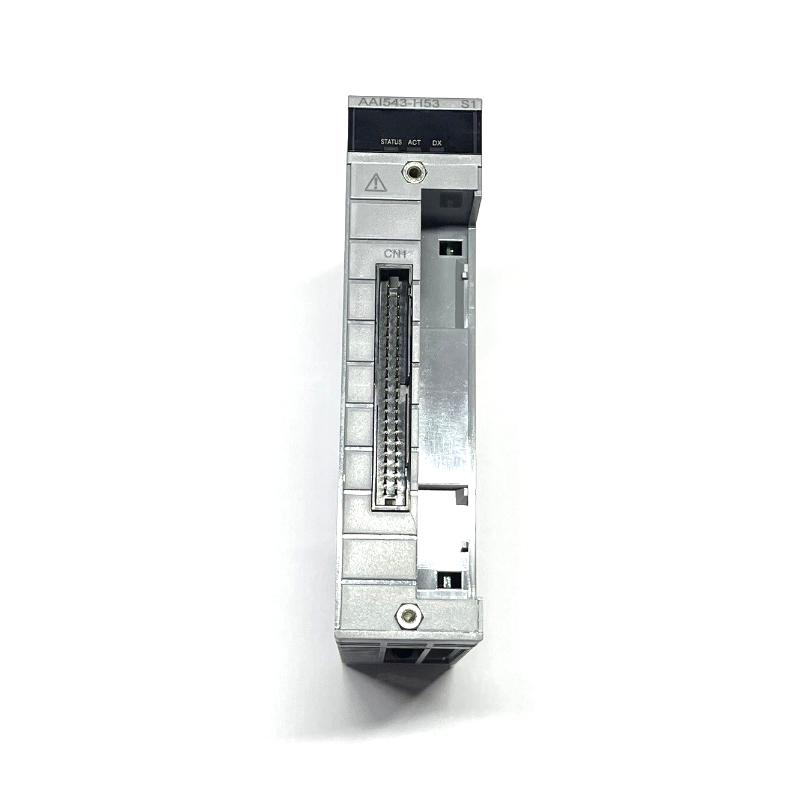

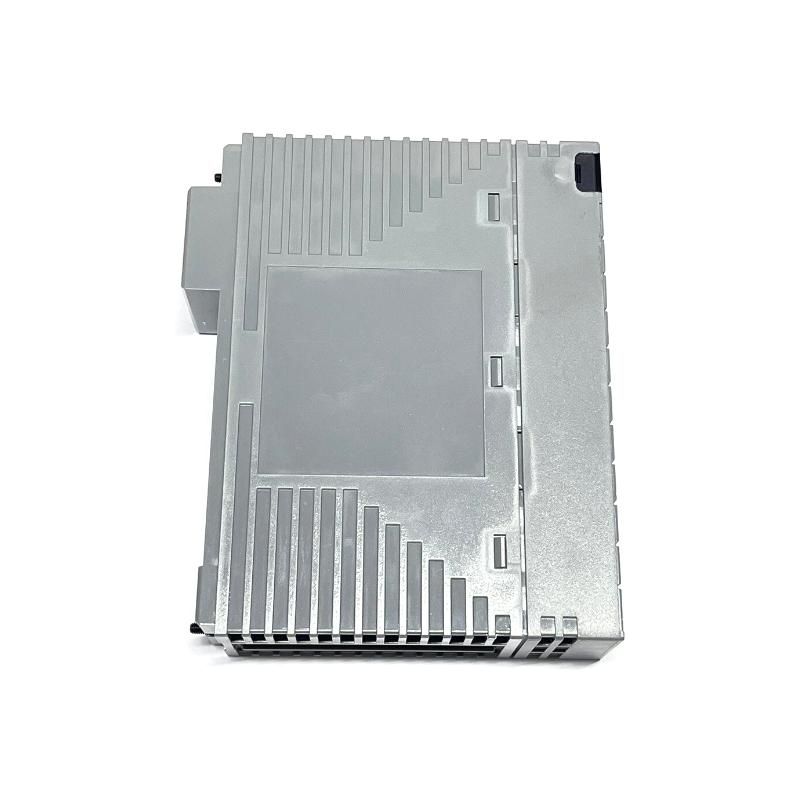

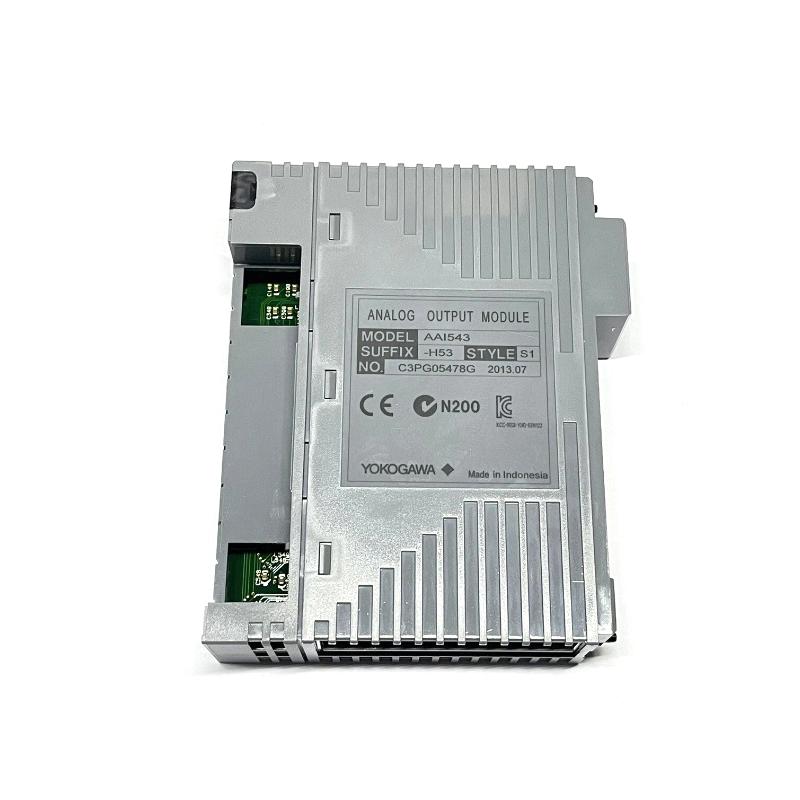

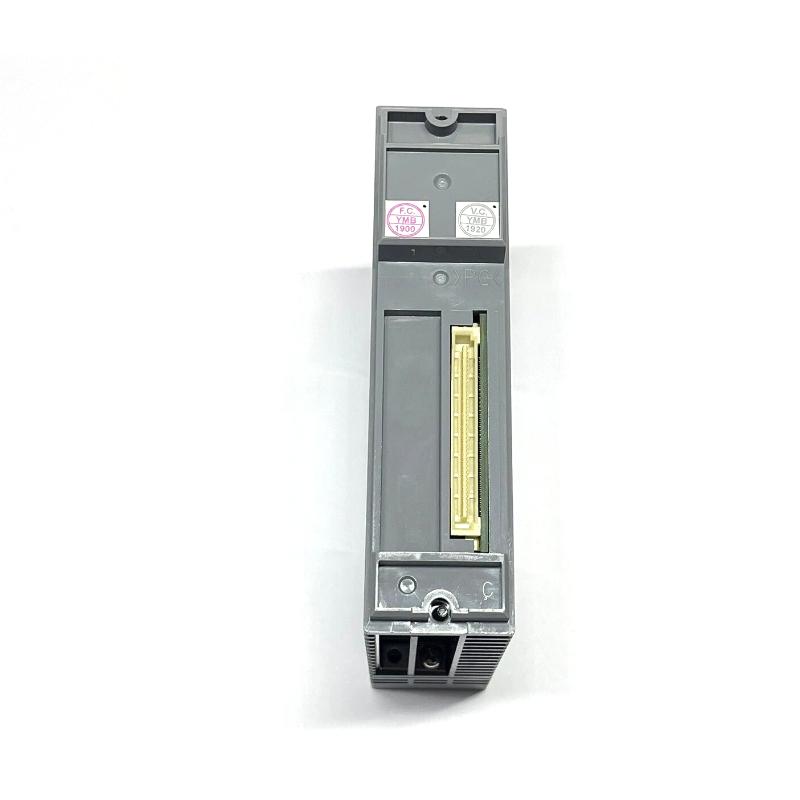

The AAI543‑H53 is a 16‑channel analog output module for industrial control systems. It provides 4–20 mA outputs with isolation and supports HART communication. Brand: Yokogawa. Country of Origin: Japan.
General Information
Part Number: AAI543‑H53
Manufacturer: Yokogawa Electric Corporation
Brand: Yokogawa
Country of Origin: Japan
Type: Analog Output Module
Channels: 16 isolated
Function: Converts digital signals into analog 4–20 mA outputs
Power Specifications
Output Range: 4–20 mA
Load Resistance: 0–750 Ω
Accuracy: ±48 µA
Update Period: 10 ms
Isolation Voltage: 1,500 V AC
Communication & Interface
Signal Type: Analog current output
Redundant Configuration: Supported
Diagnostics: Circuit‑open detection
Connection: Terminal block or KS cable adapter
HART: Supported
Environmental
Operating Temperature: –20 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH
Installation: Rack or cabinet
Dimensions & Weight
Weight: 0.4 kg
Dimensions: 107.5 × 32.8 × 130 mm
