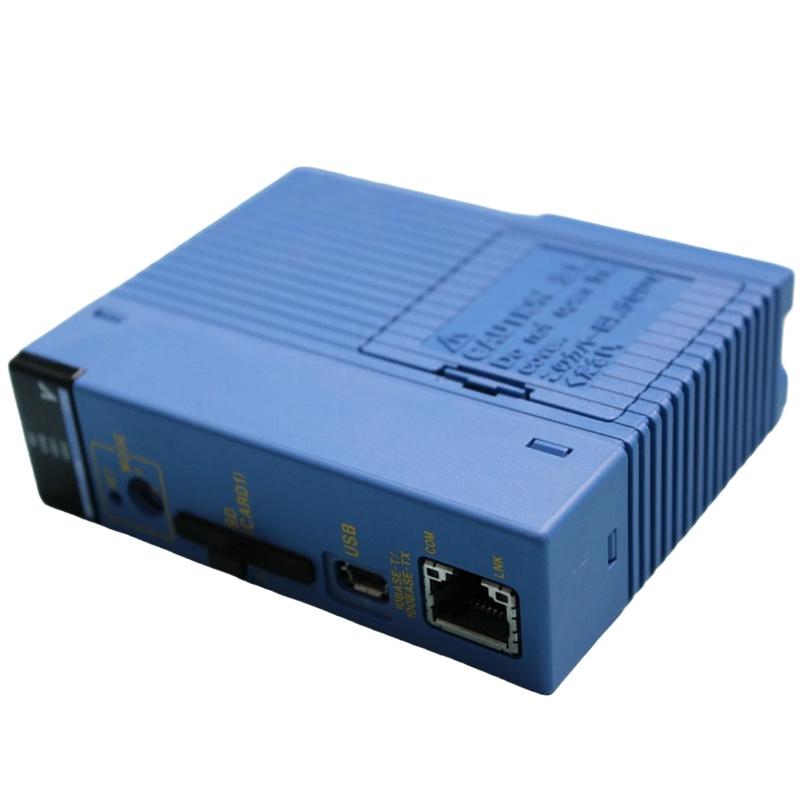

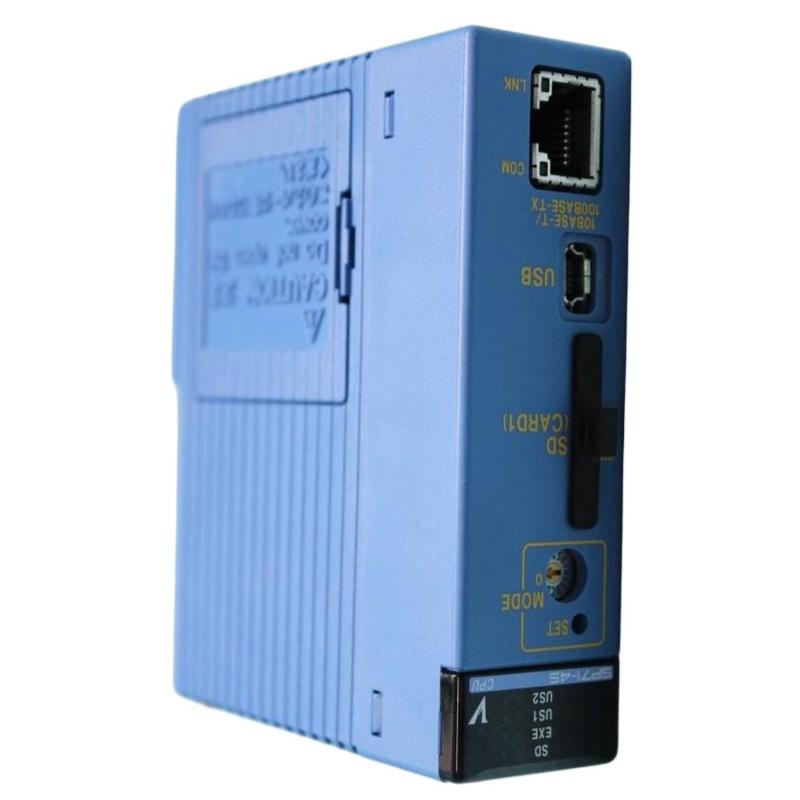

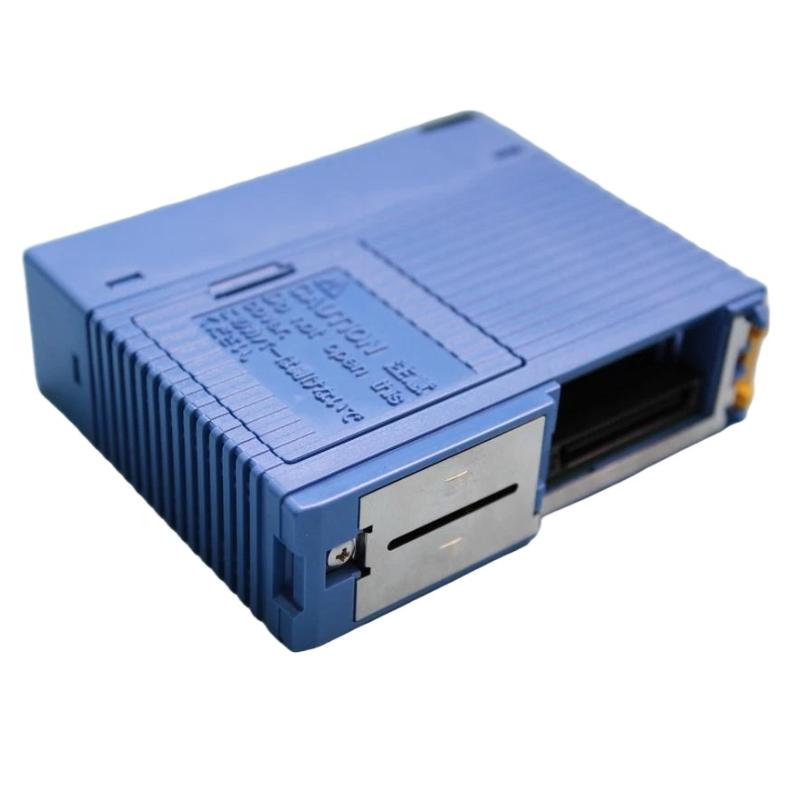

Yokogawa F3SP71-4S CPU Module

Overview

The Yokogawa F3SP71-4S CPU Module is a compact and reliable central processing unit designed for F3 series industrial automation and process control systems. It executes control programs, manages system operations, and coordinates communication between connected modules, ensuring stable and efficient performance in industrial applications.

General Information

Part Number: F3SP71-4S

Manufacturer: Yokogawa

Brand: Yokogawa

Country of Origin: Japan

Series: F3 Series

Type: CPU Module

Function: Central processing and control logic execution

Application: Industrial automation, process control, and machine control systems

Compatibility: Yokogawa F3 control system modules

Installation: Panel or rack mounted within control cabinets

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Low power CPU operation

Protection Features: Electrical isolation and internal circuit protection

Status Indicators: LED indicators for power, operation, and fault status

Communication & Interface

System Bus: High-speed internal backplane communication

Programming Support: Supports control logic execution and system configuration

Data Handling: Real-time processing of I/O signals and automation tasks

Diagnostics: Built-in system monitoring and fault detection functions

Connectivity: Compatible with Yokogawa F3 series I/O and communication modules

Environmental

Operating Temperature: 0°C to +55°C

Storage Temperature: -20°C to +70°C

Relative Humidity: 5% to 95% non-condensing

Shock Resistance: Industrial-grade durability

Vibration Resistance: Suitable for continuous industrial operation

Protection Rating: Designed for installation in industrial control cabinets

Dimensions & Weight

Dimensions (L × W × H): 28.9 × 100 × 83.2 mm

Weight: 0.12 kg
