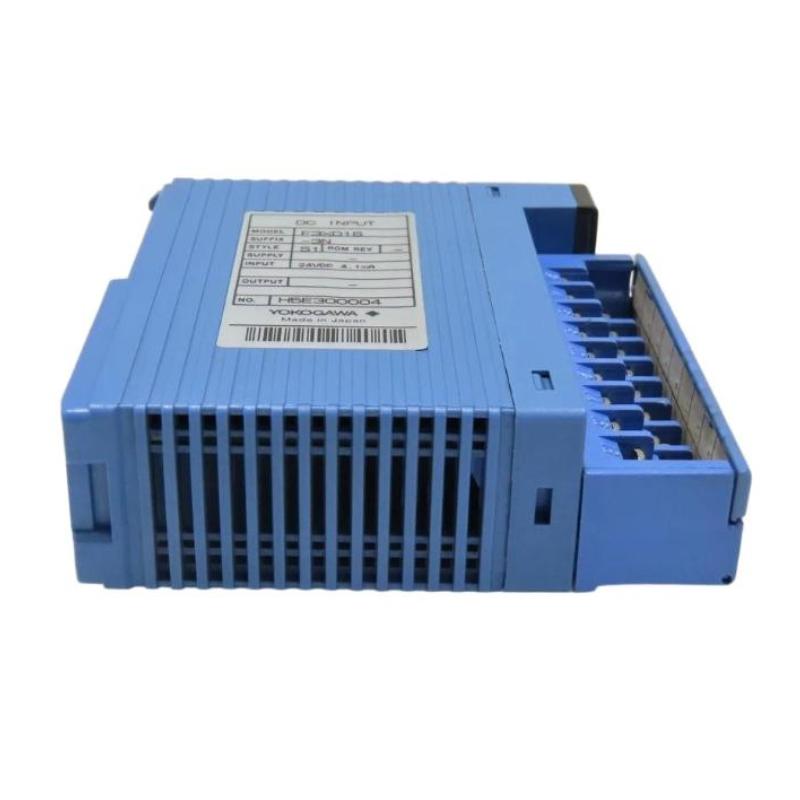

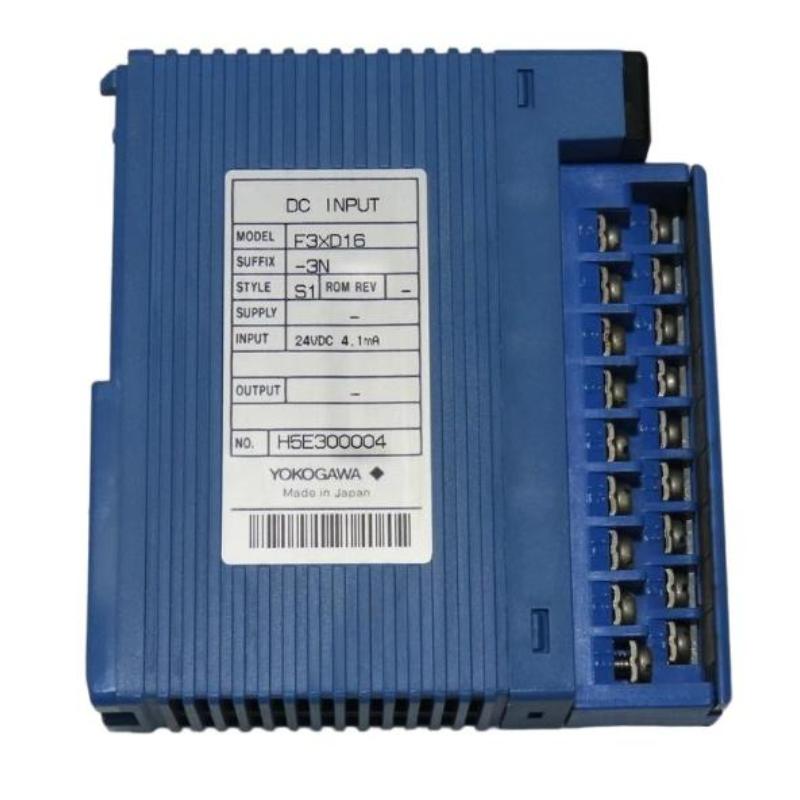

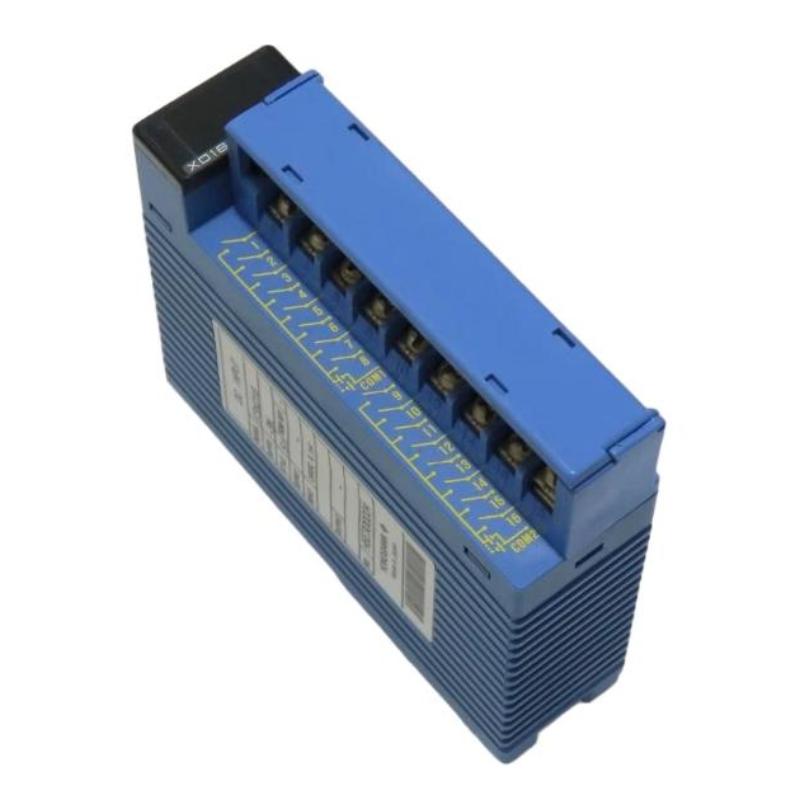

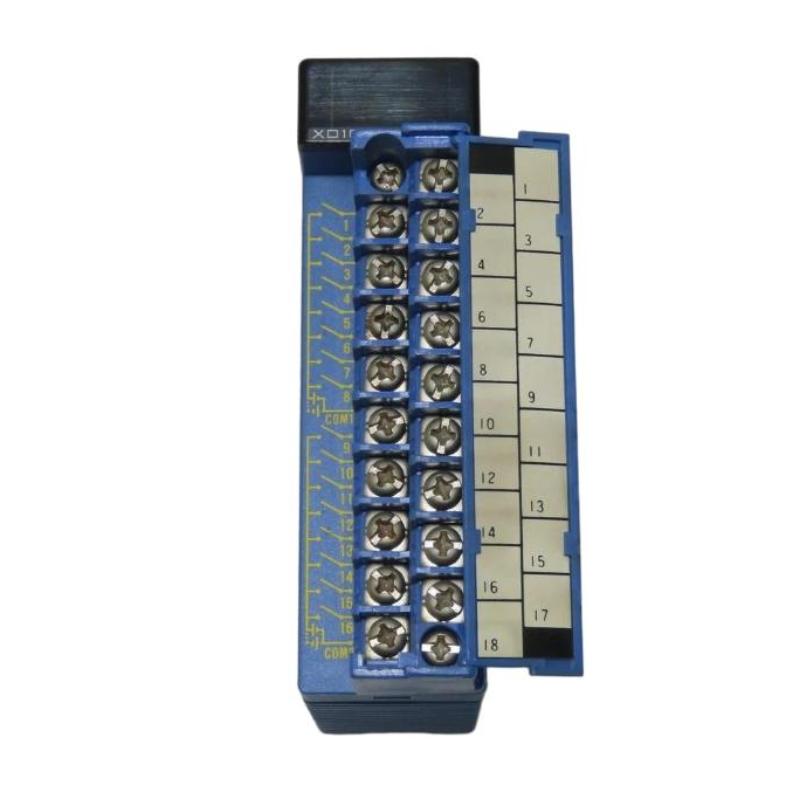

Yokogawa F3XD16-3N DC Input Module

Overview

The Yokogawa F3XD16-3N is a DC input module for the F3 series automation systems. It provides fast and reliable digital signal acquisition from field devices, ensuring accurate monitoring and control of industrial processes.

General Information

Part Number: F3XD16-3N

Manufacturer: Yokogawa

Brand: Yokogawa

Country of Origin: Japan

Series: F3 Series

Type: DC Input Module

Application: Digital signal acquisition from sensors and field devices

Technology: High-speed DC input processing with electrical isolation for industrial environments

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low, depending on input load

Input: DC input signals from field devices

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: LED indicators for channel status

Communication & Interface

Interface Type: Digital DC input channels

Signal Type: On/Off signals from field devices

Channel Configuration: Multiple configurable input channels

Diagnostics: Module-level diagnostics and input status monitoring

Compatibility: Yokogawa F3 series automation systems

Environmental

Operating Temperature: 0°C to +55°C

Storage Temperature: -20°C to +70°C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: Suitable for industrial enclosure mounting

Dimensions & Weight

Dimensions (L × W × H): 28.9 × 100 × 83.2 mm

Weight: 0.16 kg
