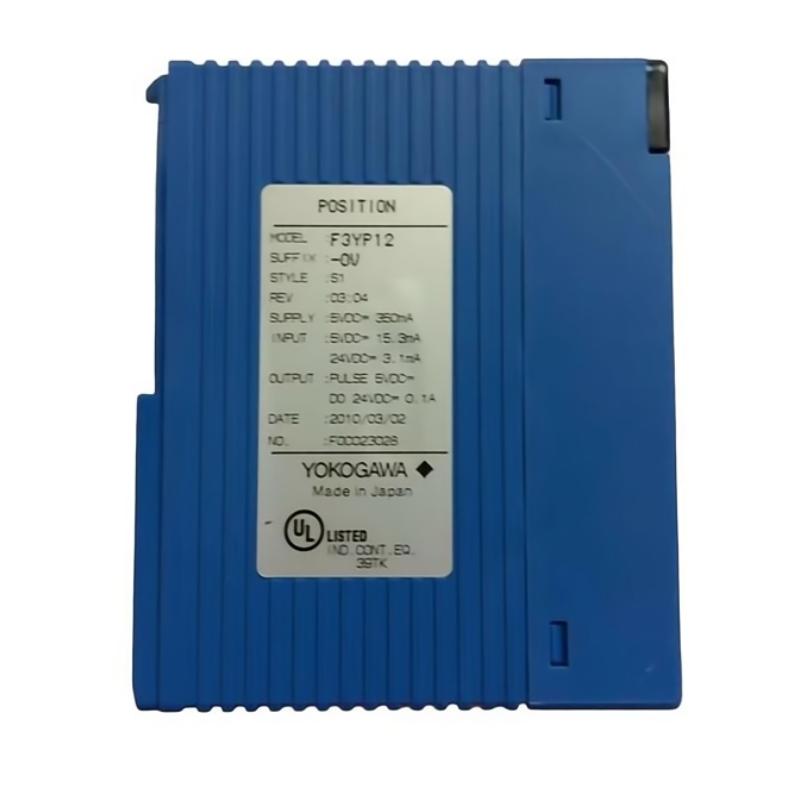

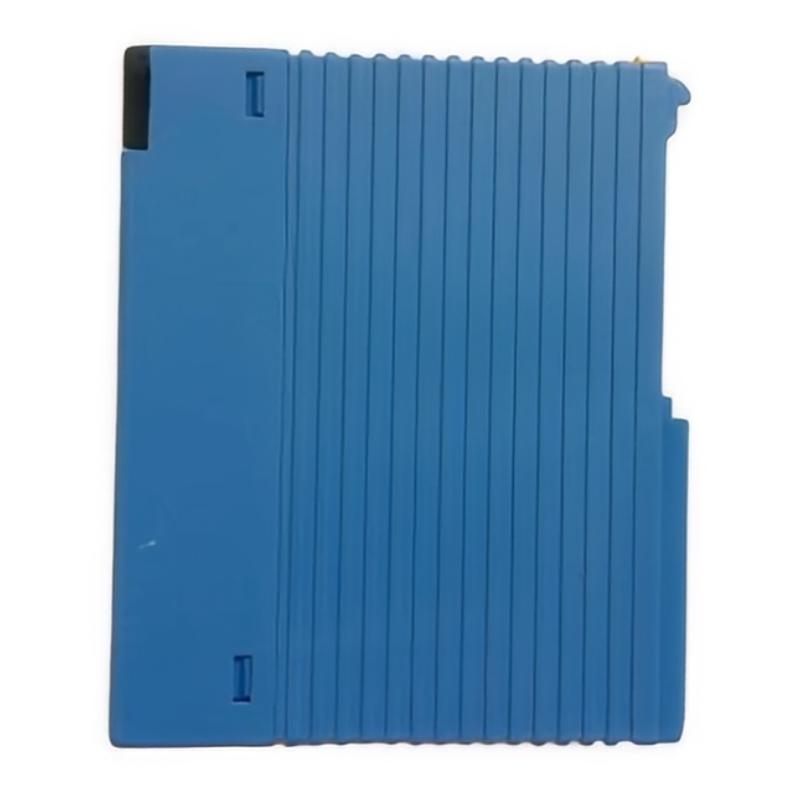

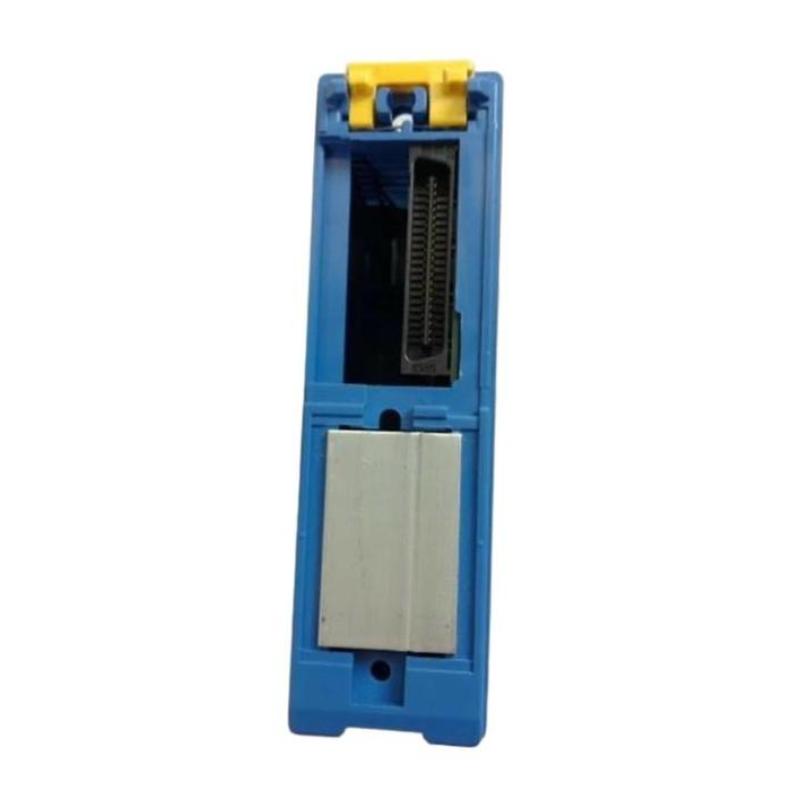

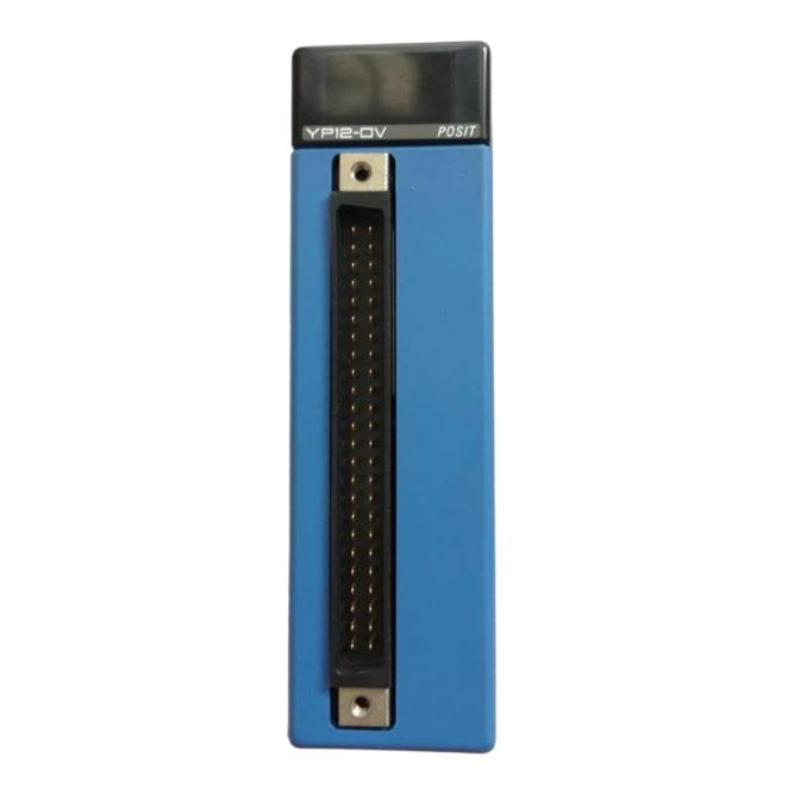

Yokogawa F3YP12 Dual-axis Control Module

Overview

The Yokogawa F3YP12 is a dual-axis control module designed for industrial motion control applications. It provides precise and synchronized control of two independent axes, enabling accurate positioning, speed regulation, and coordinated movement in automated machinery and manufacturing systems. The module delivers reliable performance for high-precision motion control tasks.

General Information

Part Number: F3YP12

Manufacturer: Yokogawa

Brand: Yokogawa

Country of Origin: Japan

Product Type: Dual-axis Control Module

Function: Two-axis motion and positioning control

Application: Motion control systems, automated machinery, positioning equipment, and industrial automation

Power Specifications

Operating Voltage: Standard industrial control voltage

Power Consumption: Low-power design for efficient operation

Current Rating: Suitable for motion control and positioning applications

Protection Features: Integrated fault monitoring and overload protection

Indicators: Status LEDs for module operation and diagnostics

Communication & Interface

Interface Type: Rack-mounted control system interface

Control Axes: 2 independent motion control axes

Functions: Position control, speed control, and coordinated axis operation

Compatibility: Yokogawa automation and motion control platforms

Diagnostics: Motion status monitoring, fault detection, and system diagnostics

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: -20 to +70 °C

Relative Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Suitable for industrial automation environments

Shock Resistance: Designed for reliable operation in control cabinets

Protection Rating: Suitable for installation in industrial enclosures

Dimensions & Weight

Dimensions (L × W × H): 28.9 × 100 × 83.2 mm

Weight: 0.12 kg

Precision Motion Control for Advanced Automation Systems
