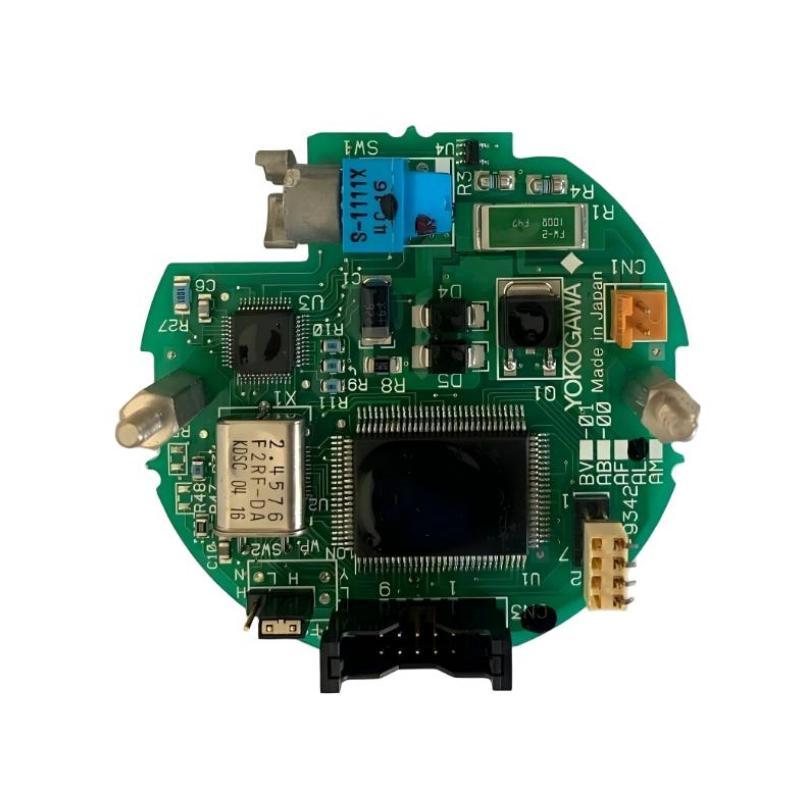

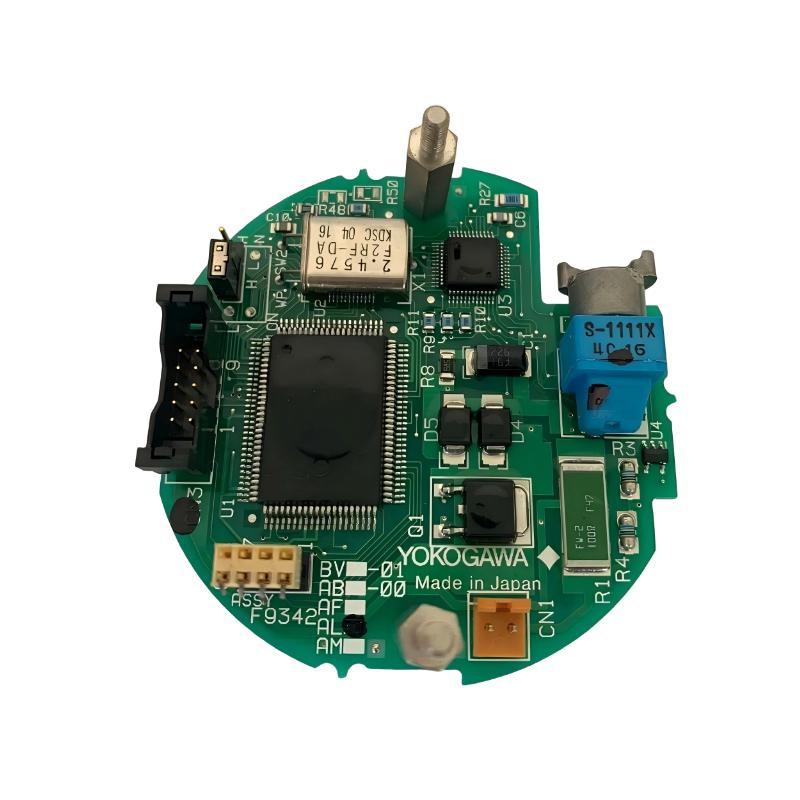

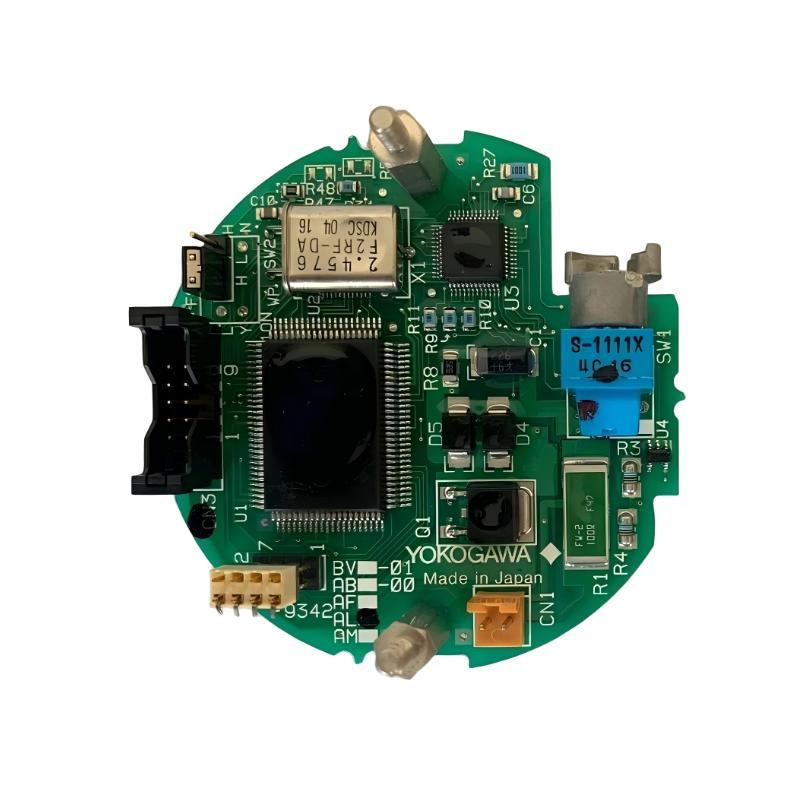

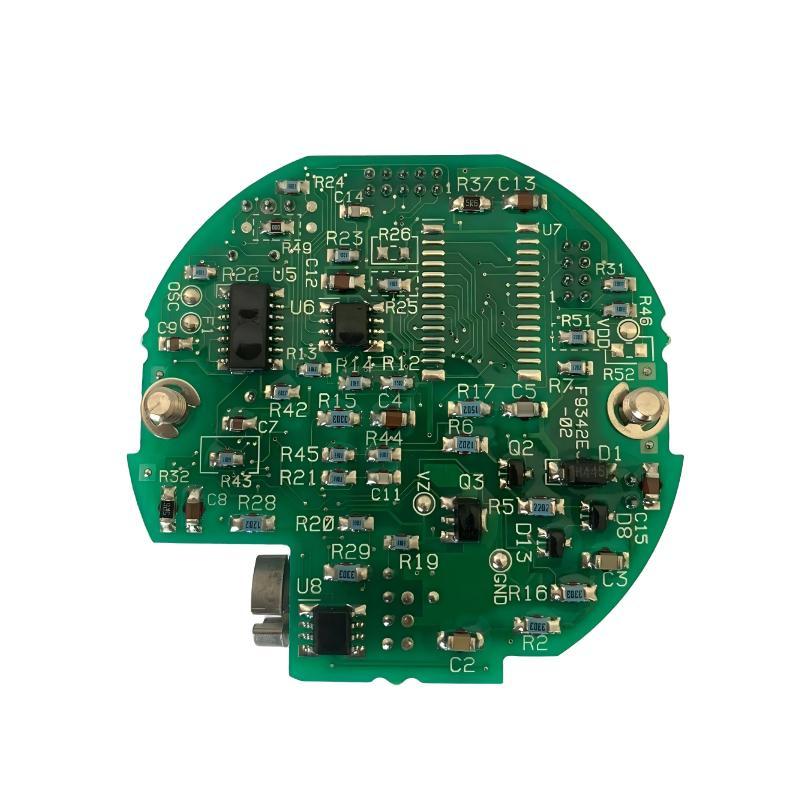

Yokogawa F9342AL Pressure Transmitter CPU Assembly

Overview

The Yokogawa F9342AL is a pressure transmitter CPU assembly designed for accurate pressure signal processing and stable field performance in industrial automation systems. It serves as the core processing unit for pressure measurement, ensuring reliable data conversion and communication with control systems.

General Information

Part Number: F9342AL

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Series: F9342

Type: Pressure Transmitter CPU Assembly

Mounting: Internal module installation within pressure transmitter housing

Technology: Digital signal processing for pressure measurement

Application: Process control, pressure monitoring, industrial automation, and instrumentation systems

Power Specifications

Supply Voltage: Powered via transmitter internal supply system

Power Consumption: Low-power electronic assembly

Isolation: Electrical isolation for measurement stability

Protection Features: Surge protection and industrial-grade noise immunity

Status Indicators: System status indication via transmitter interface

Communication & Interface

Input Channels: Pressure sensor signal input

Output Channels: Processed pressure data output

Interface Type: Transmitter communication interface (system dependent)

Diagnostics: Internal fault detection and sensor status monitoring

Controller Integration: Compatible with Yokogawa process control systems

Environmental

Operating Temperature: Industrial transmitter operating range

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Environmental Protection: Designed for industrial field instrumentation housing

Shock Resistance: Suitable for industrial process environments

Vibration Resistance: Compliant with field instrumentation standards

Dimensions & Weight

Dimensions (L × W × H): 85 × 65 × 22 mm

Weight: 0.2 kg
