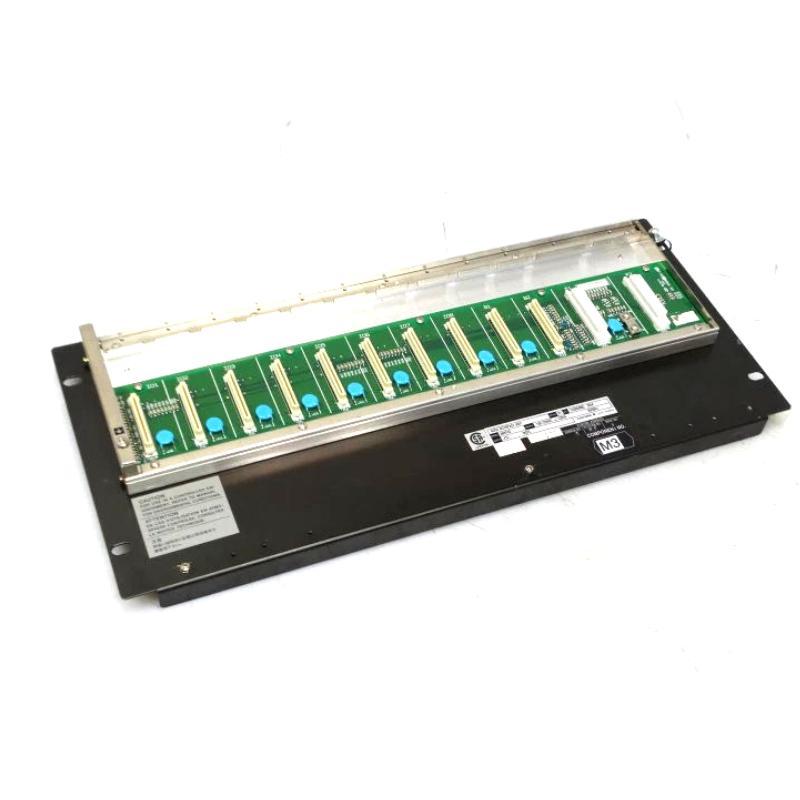

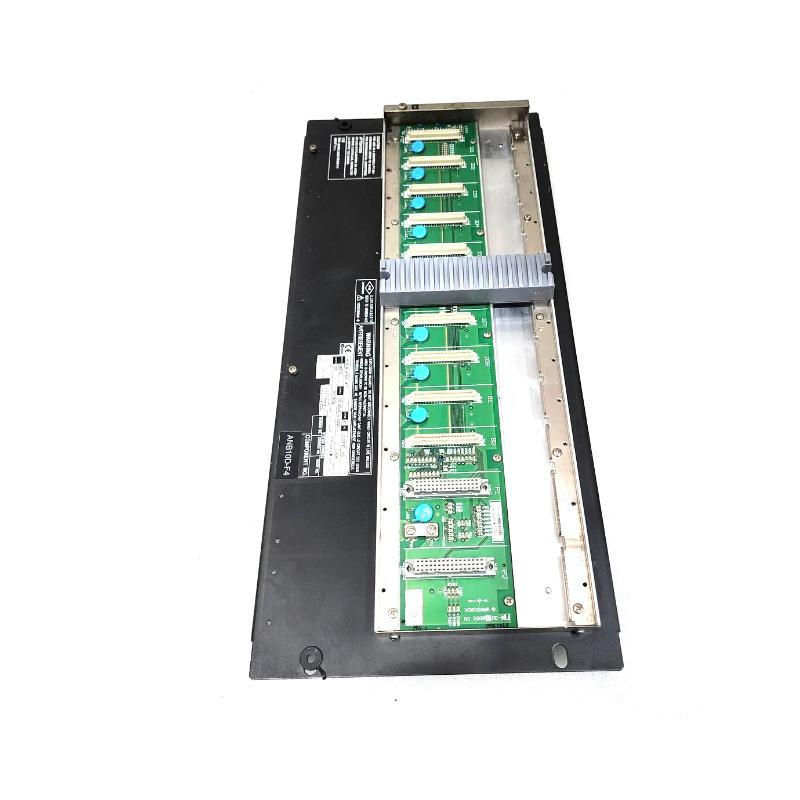

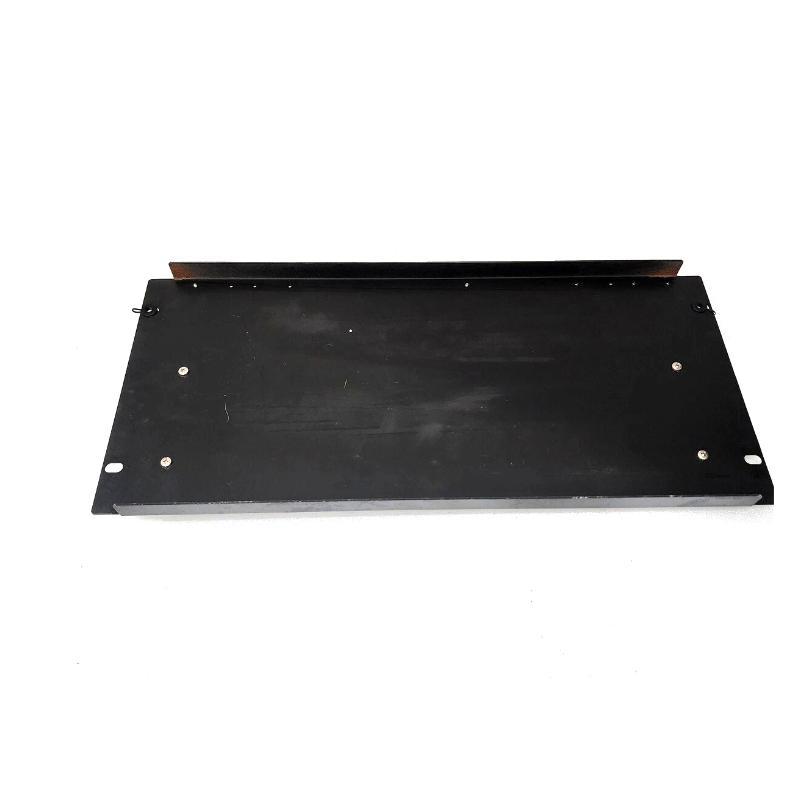

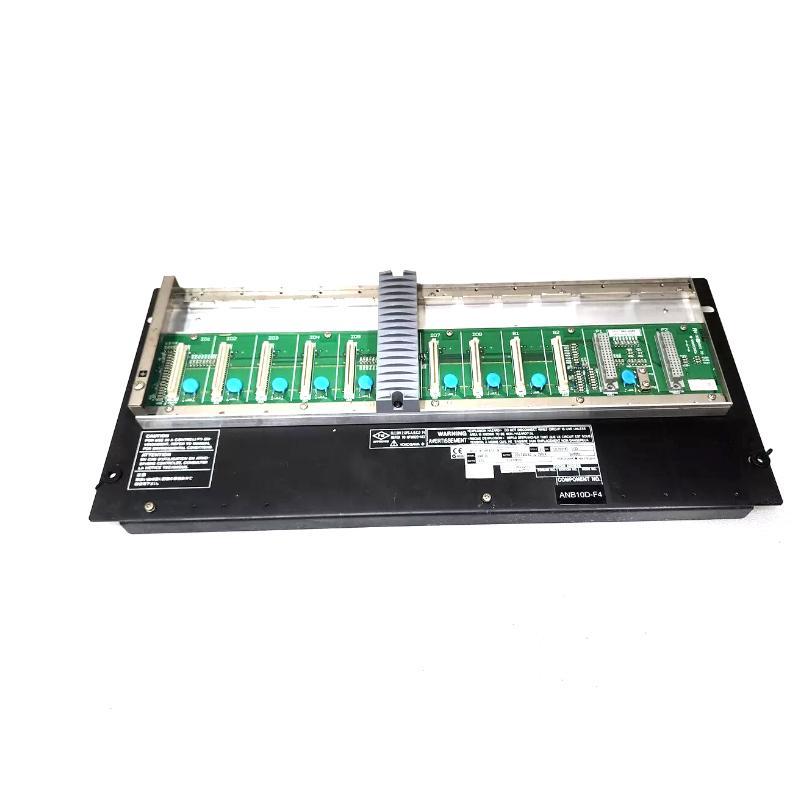

Yokogawa ANB10S ESB Bus Node Unit

Overview
The Yokogawa ANB10S is an ESB Bus Node Unit designed for distributed control system (DCS) architectures. It acts as a communication and expansion node, enabling reliable data exchange between control modules and field I/O subsystems. This unit supports scalable system architecture, making it suitable for large industrial process control environments.

General Information
Part Number: ANB10S

Manufacturer: Yokogawa Electric Corporation

Brand: Yokogawa

Country of Origin: Japan

Product Type: ESB Bus Node Unit

Function: Distributed control system node interface

Mounting Type: Rack or cabinet installation

Application: Industrial DCS communication and I/O expansion

Power Specifications
Input Voltage: System backplane powered

Power Consumption: Moderate, depending on connected modules

Protection: Industrial-grade surge and electrical isolation protection

Design: Built for continuous 24/7 operation in control environments

Status Indicators: LED indicators for power, communication, and system status

Communication & Interface
Bus System: ESB (Extended Serial Bus) architecture

Function: Connects control processors with remote I/O modules

Data Handling: High-reliability real-time communication

Diagnostics: System diagnostics and fault detection support

Scalability: Supports multi-node expansion in DCS systems

Environmental
Operating Temperature: 0 to 55 °C

Storage Temperature: −20 to 75 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Suitable for heavy industrial environments

Installation Requirement: Control cabinet or rack-mounted system

Dimensions & Weight
Dimensions (W × H × D): 482.6 × 221.5 × 205 mm

Weight: 10 kg

Built for scalable and reliable distributed control performance.
