Yokogawa ADV151-P50 | Digital Input Module Quality Selection

Overview

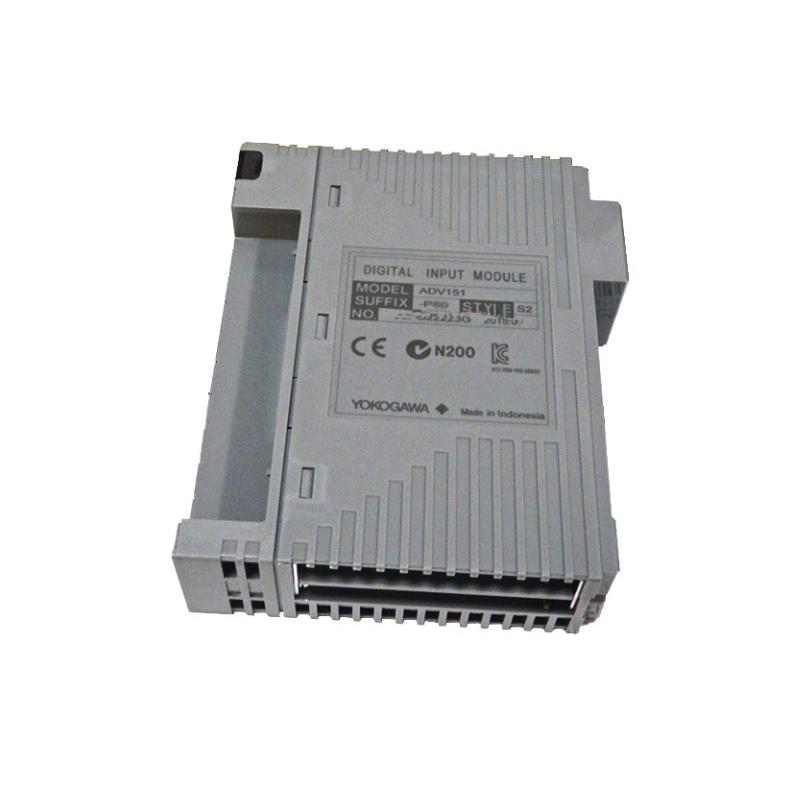

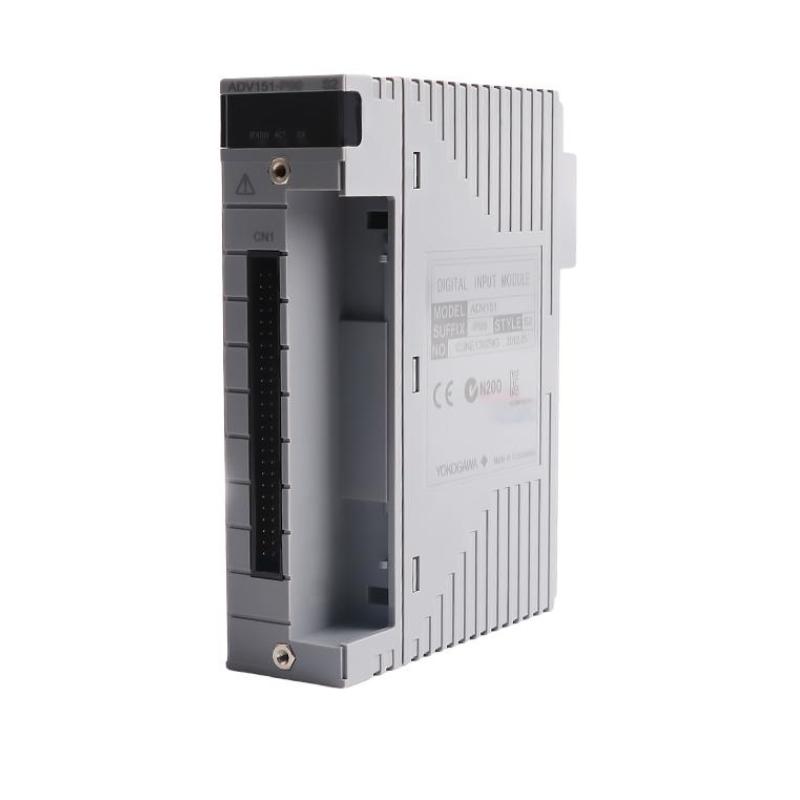

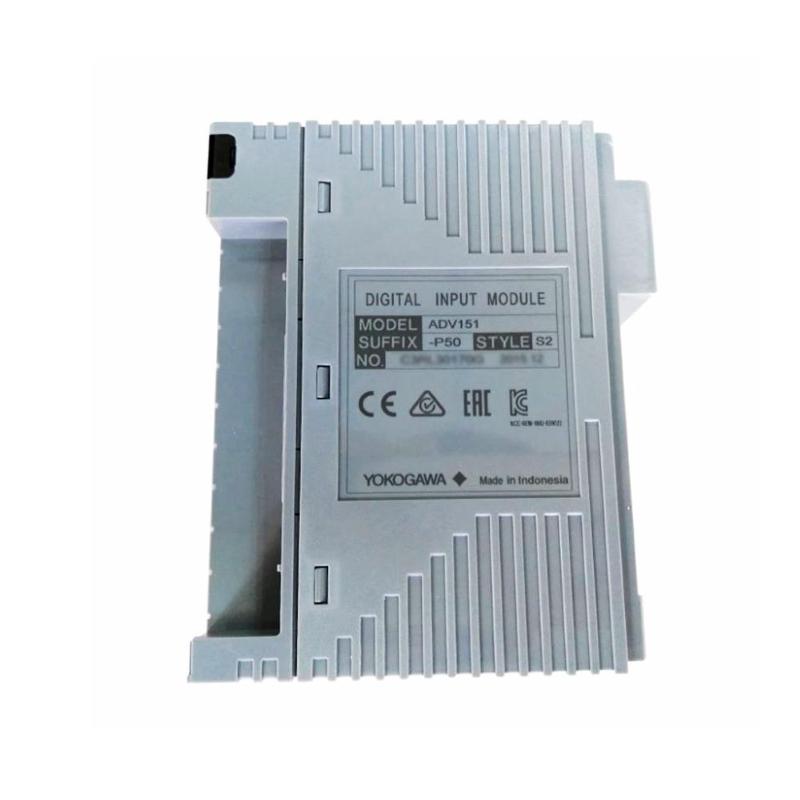

The Yakogawa ADV151-P50 is a 32-channel digital input module designed for 24 V DC field signal acquisition in industrial automation systems. Brand: Yokogawa. Country of Origin: Japan.

General Information
Part Number: ADV151-P50
Manufacturer: Yokogawa Electric Corporation
Brand: Yokogawa
Country of Origin: Japan
Type: Digital Input Module
Channels: 32 isolated input points
Function: Detects status signals from field devices such as switches and sensors

Power Specifications
Rated Input Voltage: 24 V DC (sink/source)
Input ON Voltage: 18 V DC to 26.4 V DC
Input OFF Voltage: 5 V DC or less
Input Current: Approx. 4.1 mA per channel at rated voltage
Withstanding Voltage: 2 kV AC signal-to-system for one minute; 500 V AC between common groups of 16 channels
Approximate Current Consumption: 500 mA at 5 V DC

Communication & Interface
Signal Type: 24 V DC digital input
Connection: Standard pressure-clamp terminals or MIL-connector cable interface
Diagnostics: Fast response time (≤ 8 ms); supports push-button input detection (min-ON time 20 ms) and high event‐rate operations (up to 25 Hz)

Environmental
Operating Temperature: –20 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Isolation Rating: Channels isolated from system ground for noise immunity

Dimensions & Weight
Dimensions: 107.5 × 130 × 32.8 mm
Weight: 0.3 kg

All our goods are new and original, supported by continuous customer communication.
