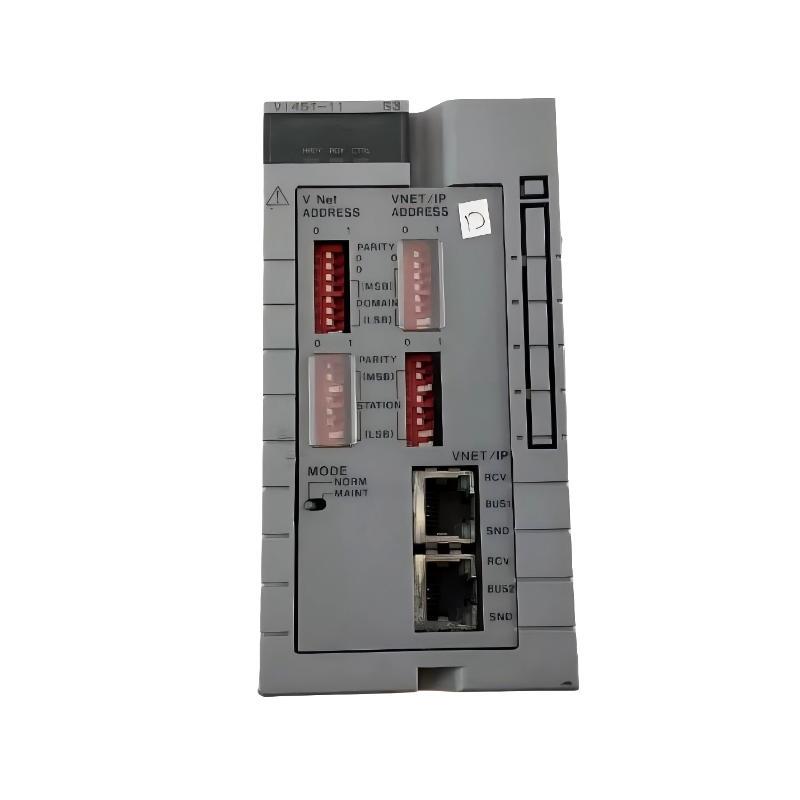

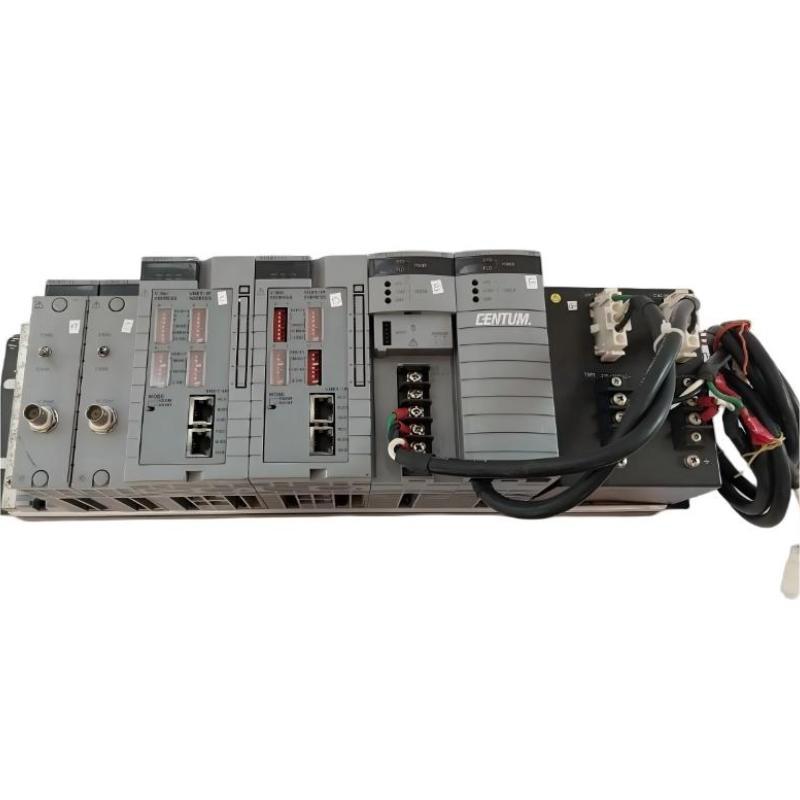

Yokogawa AVR10D Duplex V-Network Router

Overview

The Yokogawa AVR10D is a duplex V-network router designed for high-reliability industrial control and process automation systems. It provides redundant network communication paths to ensure continuous data transmission, supporting stable operation in mission-critical environments where communication uptime is essential.

General Information

Part Number: AVR10D
Manufacturer: Yokogawa
System Series: V-Network / Industrial Communication Series
Brand: Yokogawa (Japan)
Country of Origin: Japan
Type: Duplex V-Network Router
Function: Redundant industrial network routing and communication management
Installation: Rack-mounted module for control cabinets or system racks
Compatibility: Yokogawa distributed control and V-net communication systems
Technology: Dual-redundant network architecture with automatic failover switching

Power Specifications

Supply Voltage: 24 V DC (industrial system supply)
Power Consumption: Typically ≤ 25 W
Input Power Source: Control system power supply / rack backplane
Protection: Over-voltage, reverse polarity, and surge protection
Status Indication: LED indicators for power, link status, and redundancy state

Communication & Interface

Network Type: V-network industrial communication system
Function: Duplex routing with redundant communication paths
Ports: Multiple industrial network interfaces (system dependent configuration)
Data Handling: High-speed packet routing with failover protection
Diagnostics: Link monitoring, redundancy status, fault detection, network health reporting
System Integration: Fully integrated with Yokogawa V-net / control architecture

Environmental

Operating Temperature: 0 to +60 °C
Storage Temperature: −20 to +70 °C
Humidity: 5%–95% RH, non-condensing
Vibration Resistance: Industrial control cabinet standard
Protection Class: IP20 (rack installation)

Dimensions & Weight

Dimensions (L × W × H): 482.6 × 132.5 × 169 mm
Weight: 5.8 kg

High-reliability redundant networking for continuous industrial operation!
