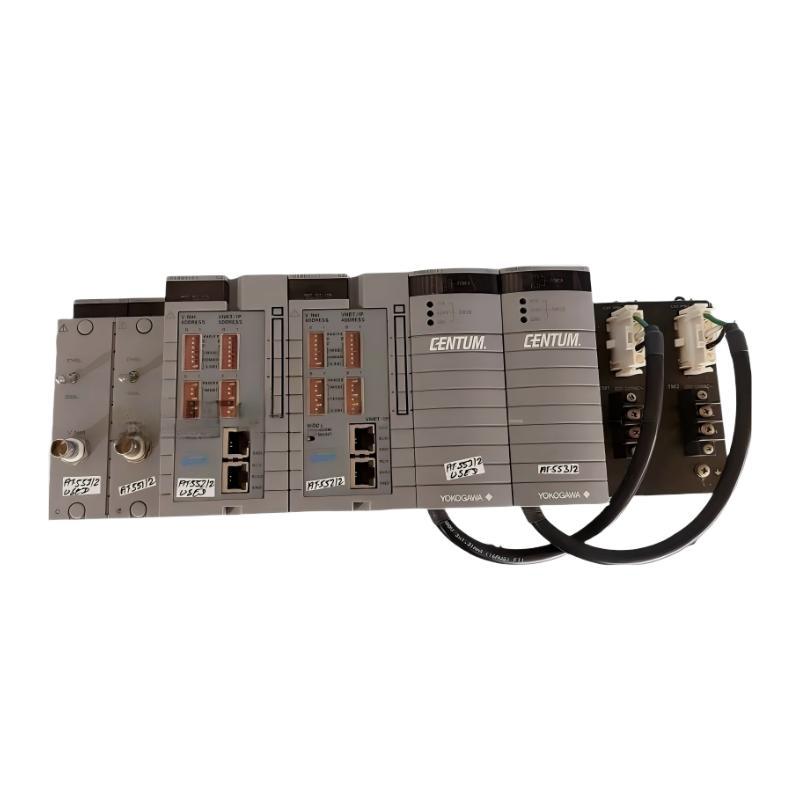

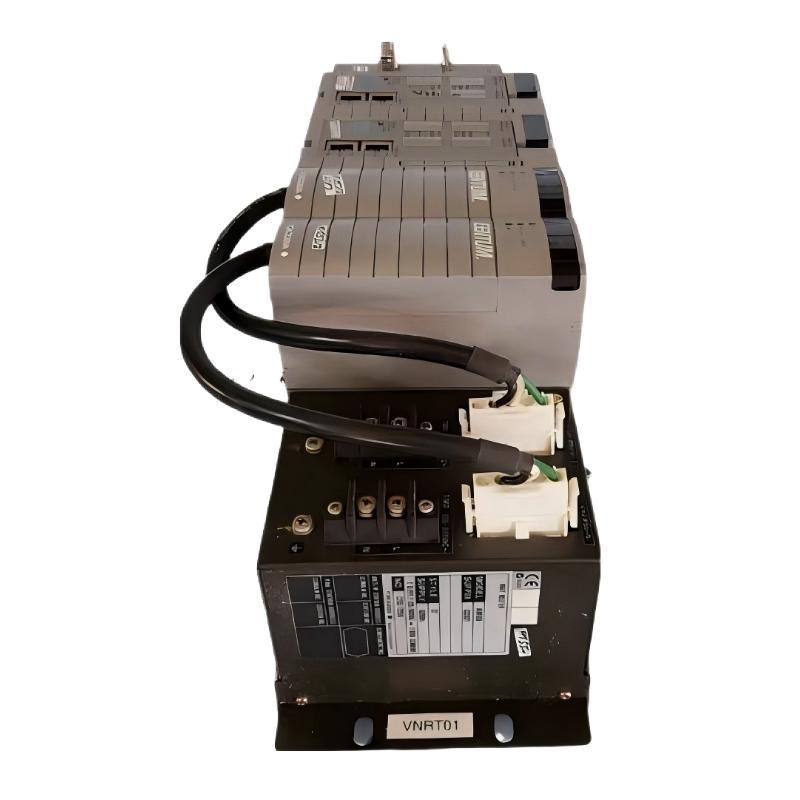

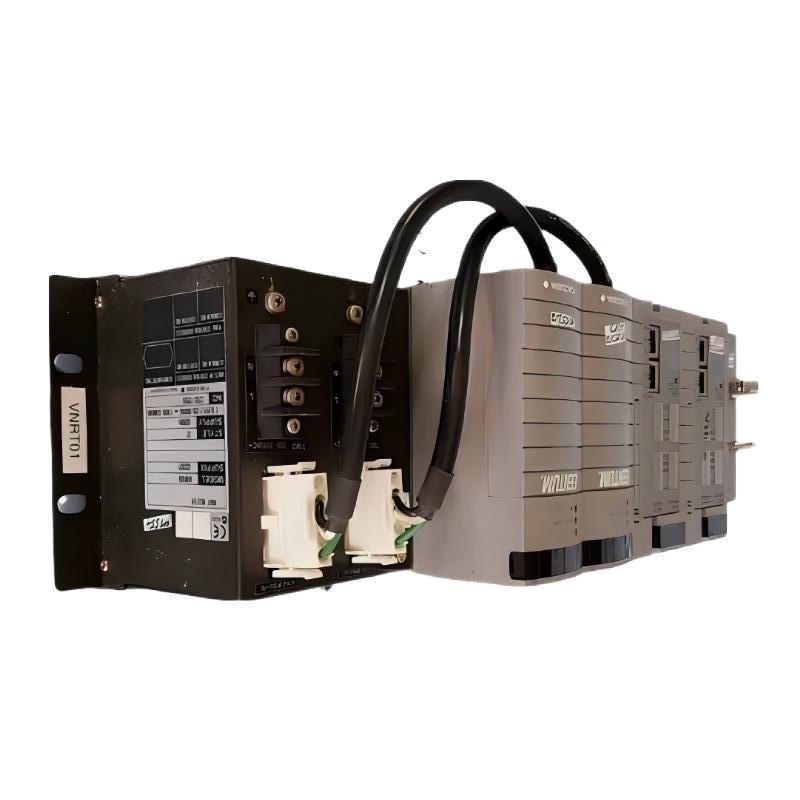

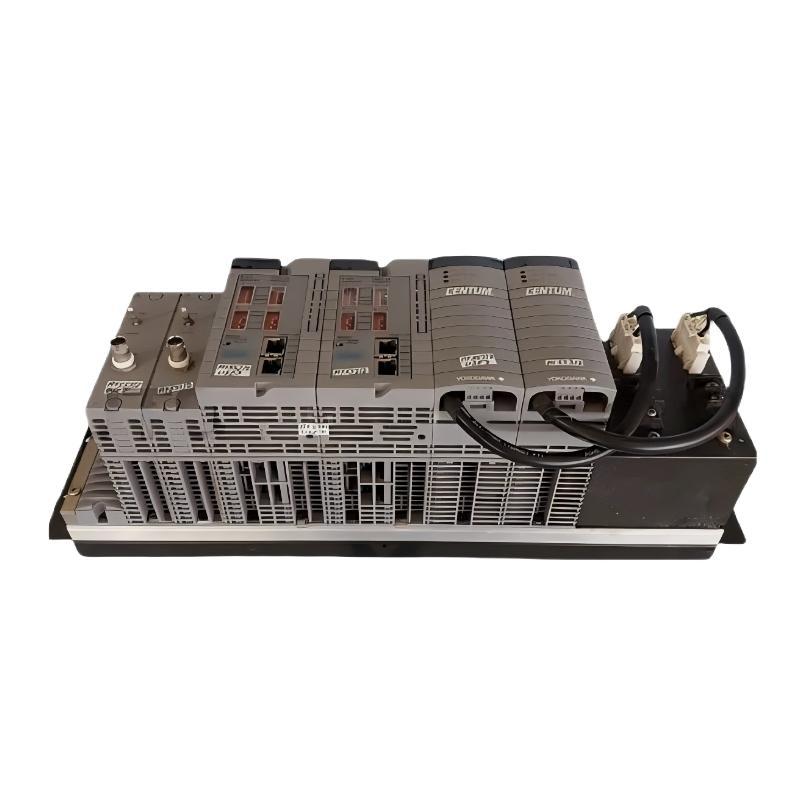

Yokogawa AVR10D-0022020 Duplex V-Network Router

Overview

The Yokogawa AVR10D-0022020 is a duplex V-network router designed for high-reliability industrial communication systems. It provides redundant network routing and automatic failover control to ensure uninterrupted data exchange in critical process automation environments.

General Information

Part Number: AVR10D-0022020
Manufacturer: Yokogawa
System Series: V-Network / Industrial Communication Series
Brand: Yokogawa (Japan)
Country of Origin: Japan
Type: Duplex V-Network Router
Function: Redundant industrial network routing and communication management
Installation: Rack-mounted system module
Compatibility: Yokogawa V-net and distributed control systems
Technology: Dual-redundant architecture with automatic failover switching

Power Specifications

Supply Voltage: 24 V DC (industrial standard)
Power Consumption: Typically ≤ 25 W
Input Power Source: Control cabinet power system / rack supply
Protection: Over-voltage, reverse polarity, and surge protection
Status Indication: LED indicators for power, link, and redundancy status

Communication & Interface

Network Type: V-network industrial communication system
Architecture: Duplex redundant routing system
Ports: Multi-channel industrial communication interfaces (system dependent)
Data Transfer: High-speed deterministic packet routing
Diagnostics: Network health monitoring, link supervision, fault detection, redundancy status reporting
System Integration: Fully compatible with Yokogawa control and V-net architecture

Environmental

Operating Temperature: 0 to +60 °C
Storage Temperature: −20 to +70 °C
Humidity: 5%–95% RH, non-condensing
Vibration Resistance: Industrial cabinet standard
Protection Class: IP20 (rack-mounted use)

Dimensions & Weight

Dimensions (L × W × H): 482.6 × 132.5 × 169 mm
Weight: 5.8 kg

Engineered for continuous, fault-tolerant industrial network performance!
