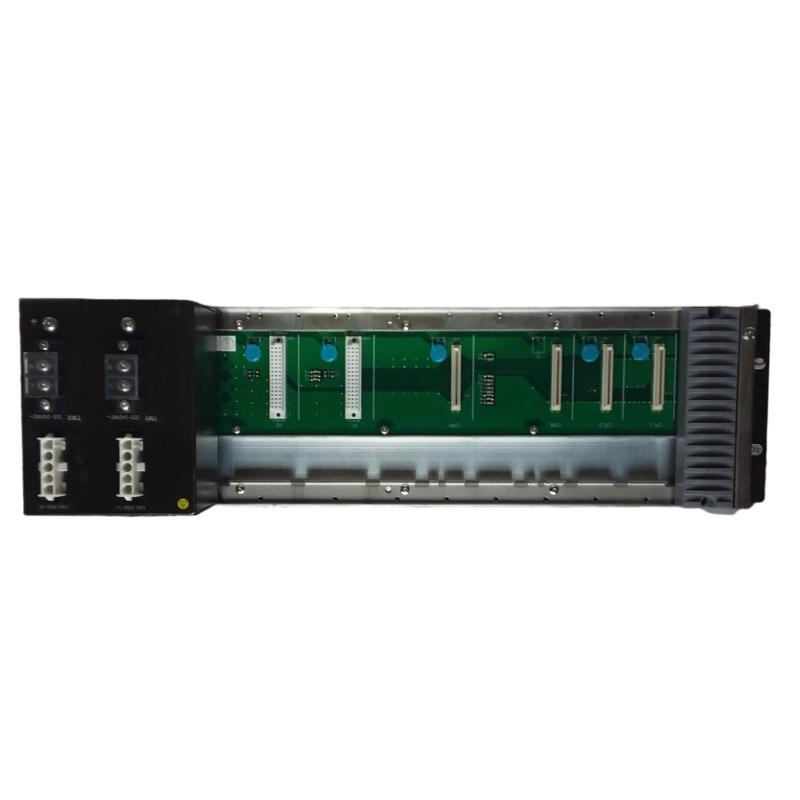

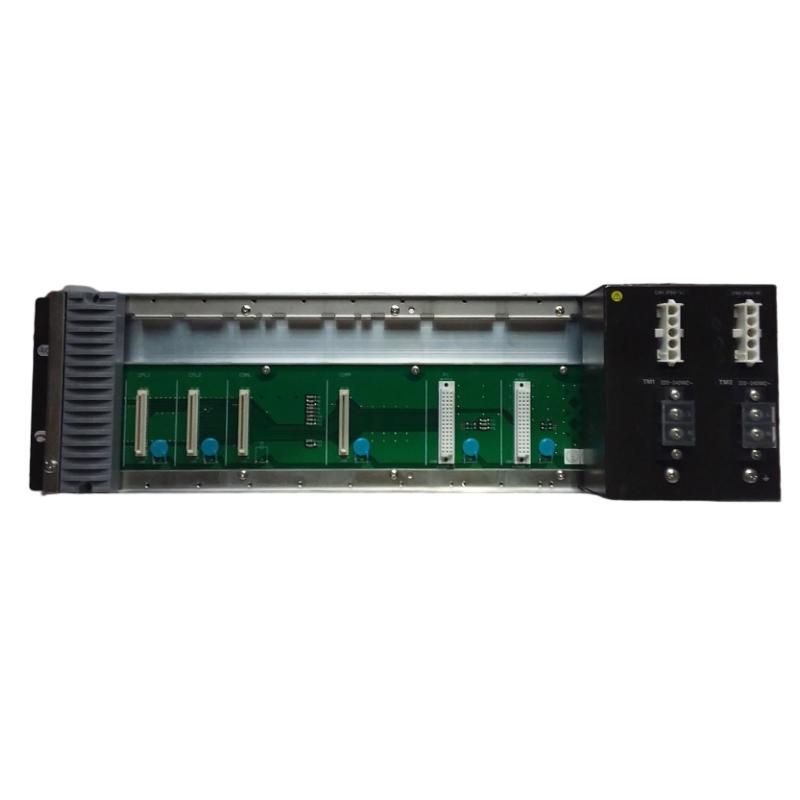

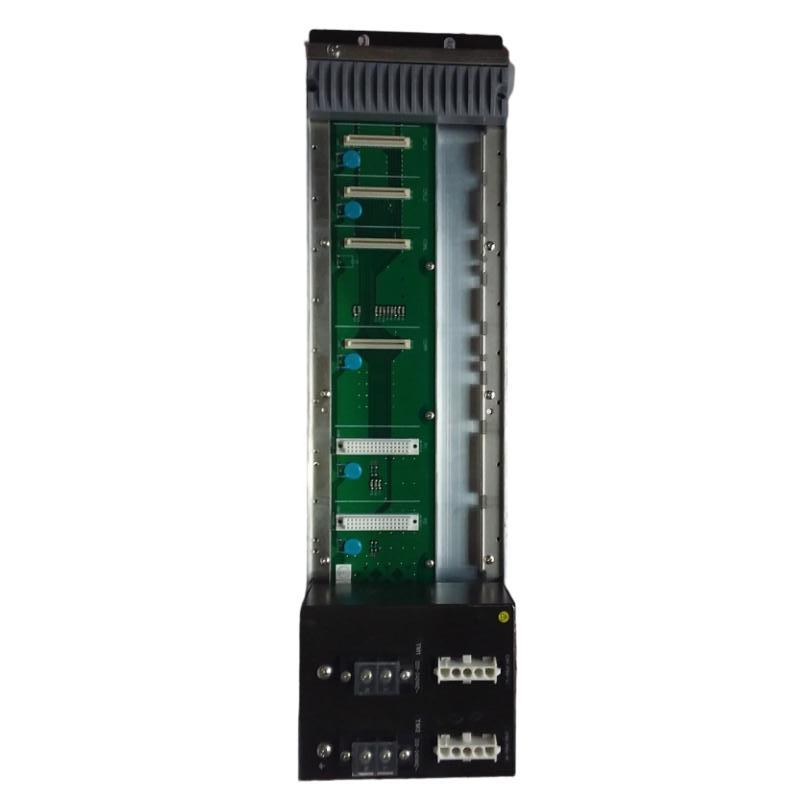

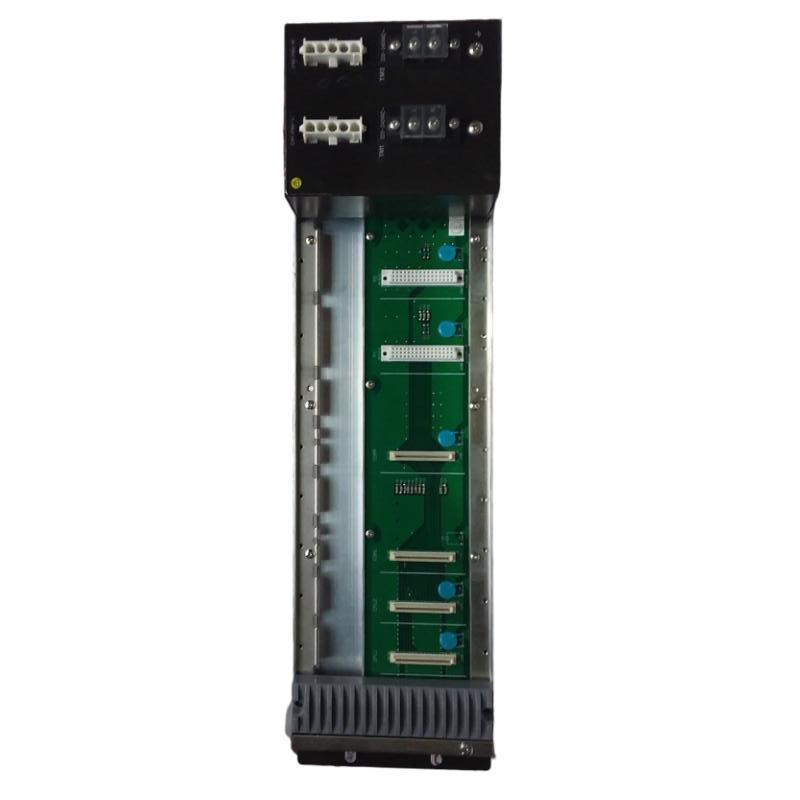

Yokogawa AVR10D-Q22020 Duplex V-Net Router

Overview
The Yokogawa Electric AVR10D-Q22020 is a Duplex V-Net Router designed for high-availability industrial communication systems. It provides redundant network routing and data transmission between distributed control system components, ensuring stable and secure communications in critical process automation environments.

General Information
Part Number: AVR10D-Q22020

Manufacturer: Yokogawa Electric

Series: V-Net Communication System

Product Type: Duplex V-Net Router

Country of Origin: Japan

Function: Redundant network routing and communication management

Application: Distributed control systems (DCS), process automation, and industrial communication infrastructure

Mounting Type: Rack-mounted installation

Power Specifications
Input Voltage: 100 to 240 V AC (typical system configuration)

Power Consumption: Low-power industrial networking device

Redundancy: Supports duplex power and communication architecture

Protection: Industrial-grade surge and fault protection

Efficiency: Designed for continuous 24/7 operation

Communication & Interface
Network Type: V-Net industrial communication network

Communication Function: Data routing and network redundancy management

Interface Ports: Multiple network communication interfaces

Redundancy Support: Duplex network architecture for enhanced system availability

Diagnostics: Integrated communication status and fault monitoring

System Integration: Compatible with Yokogawa distributed control systems

Environmental
Operating Temperature: 0 to 50 °C

Storage Temperature: −20 to 70 °C

Humidity: 10% to 90% RH, non-condensing

Vibration Resistance: Industrial control room environment rated

Protection Rating: Installed within protected control cabinet or rack enclosure

Pollution Degree: 2 (industrial indoor environments)

Dimensions & Weight
Dimensions (W × H × D): 482.6 × 132.5 × 169 mm

Weight: 5.8 kg

High-availability networking for critical industrial operations!
