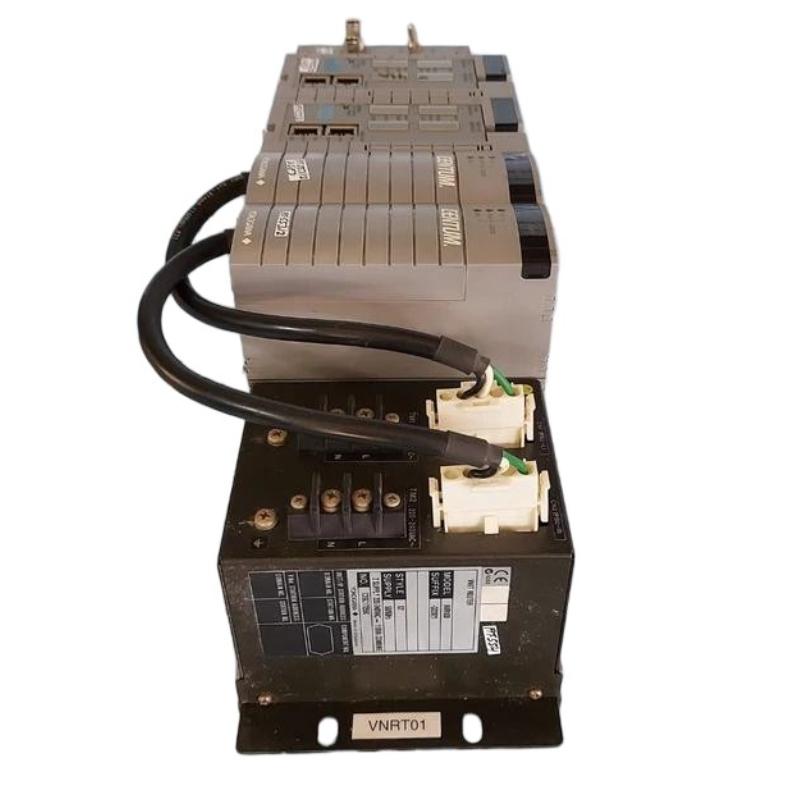

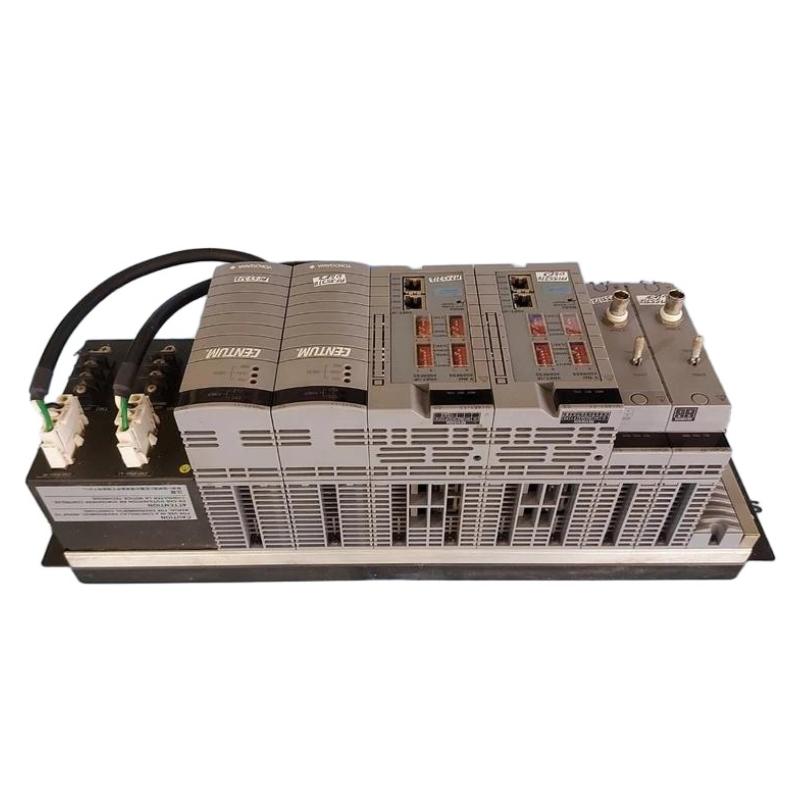

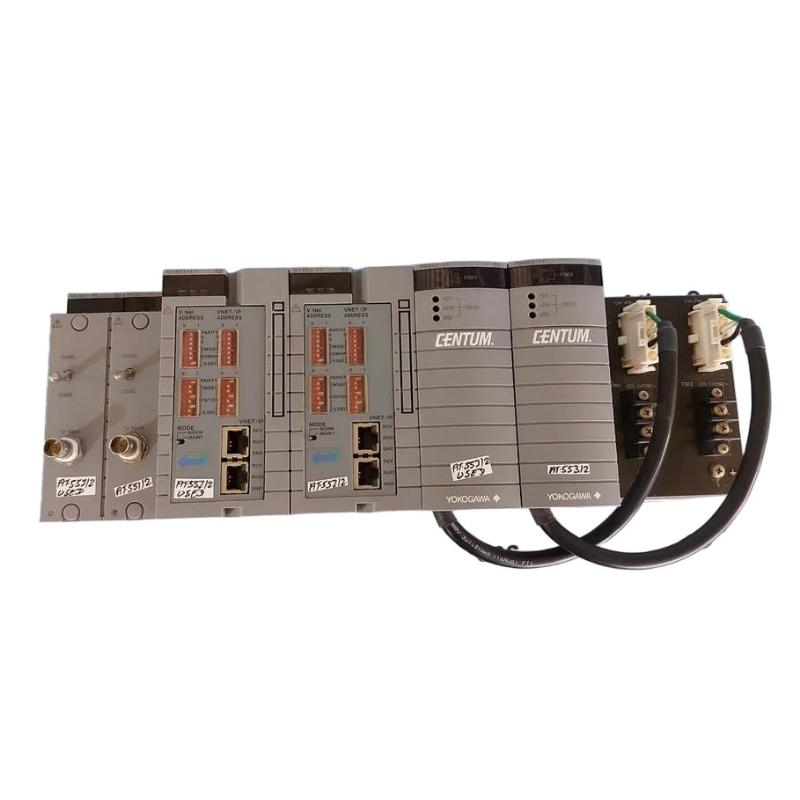

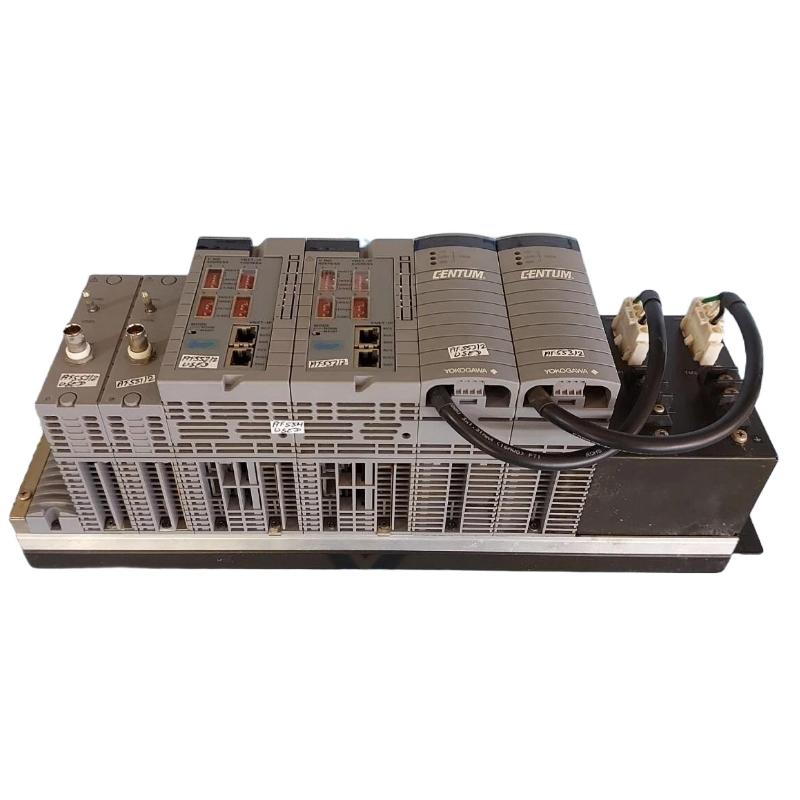

Yokogawa AVR10D-Q22021 Dual-redundancy V-network router

Overview
The Yokogawa Electric AVR10D-Q22021 is a dual-redundancy V-network router designed for mission-critical industrial communication systems. It provides highly reliable network routing and redundant communication paths, ensuring continuous data exchange between distributed control system components in demanding process automation environments.

General Information
Part Number: AVR10D-Q22021

Manufacturer: Yokogawa Electric

Series: V-Net Communication System

Product Type: Dual-Redundancy V-Network Router

Country of Origin: Japan

Function: Redundant network routing and communication management

Application: Distributed control systems (DCS), process automation, and industrial communication networks

Mounting Type: Rack-mounted installation

Power Specifications
Input Voltage: 100 to 240 V AC (typical system configuration)

Power Consumption: Low-power industrial networking device

Redundancy: Dual-redundant power and communication architecture

Protection: Industrial-grade surge and fault protection

Efficiency: Engineered for continuous operation in critical environments

Communication & Interface
Network Type: V-Net industrial communication network

Communication Function: Data routing and redundant network management

Interface Ports: Multiple industrial network communication interfaces

Redundancy Support: Dual-redundancy network architecture for maximum availability

Diagnostics: Integrated communication status and fault monitoring

System Integration: Compatible with Yokogawa distributed control systems

Environmental
Operating Temperature: 0 to 50 °C

Storage Temperature: −20 to 70 °C

Humidity: 10% to 90% RH, non-condensing

Vibration Resistance: Industrial control room environment rated

Protection Rating: Installed within protected control cabinet or rack enclosure

Pollution Degree: 2 (industrial indoor environments)

Dimensions & Weight
Dimensions (W × H × D): 482.6 × 132.5 × 169 mm

Weight: 5.8 kg

Designed for maximum uptime and dependable network performance!
