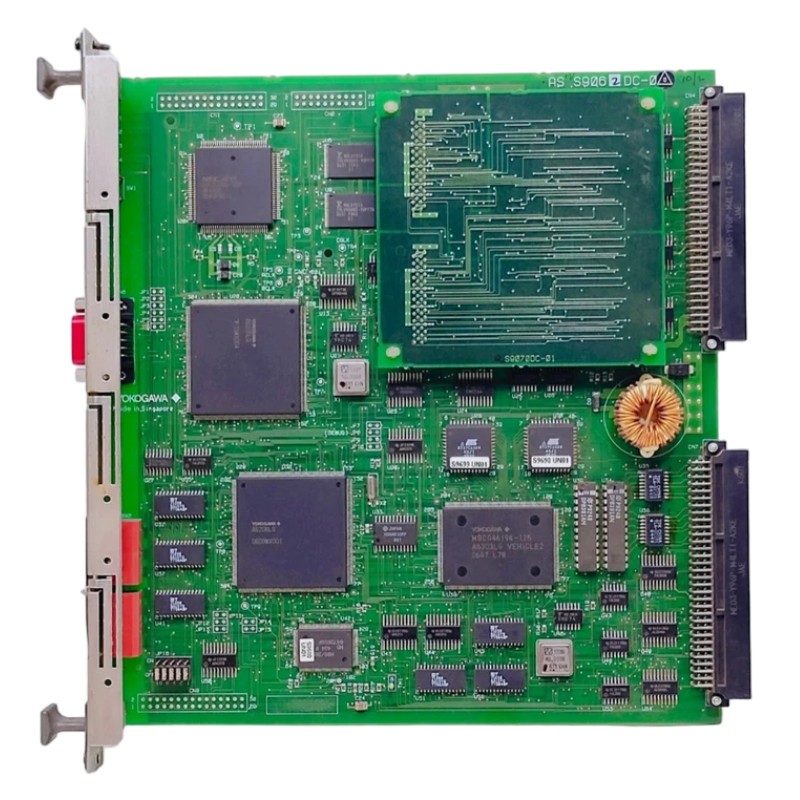

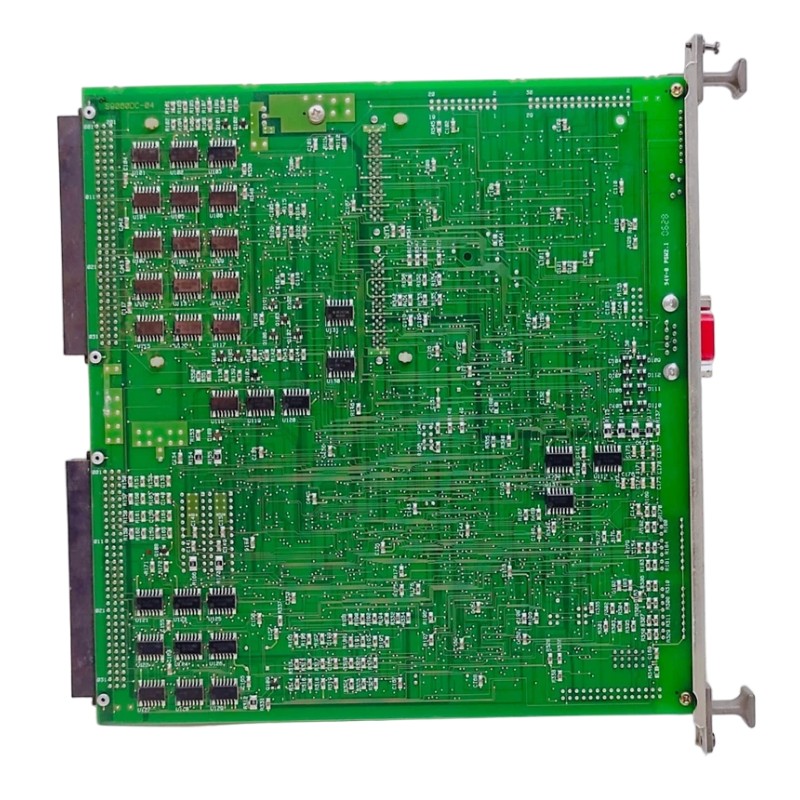

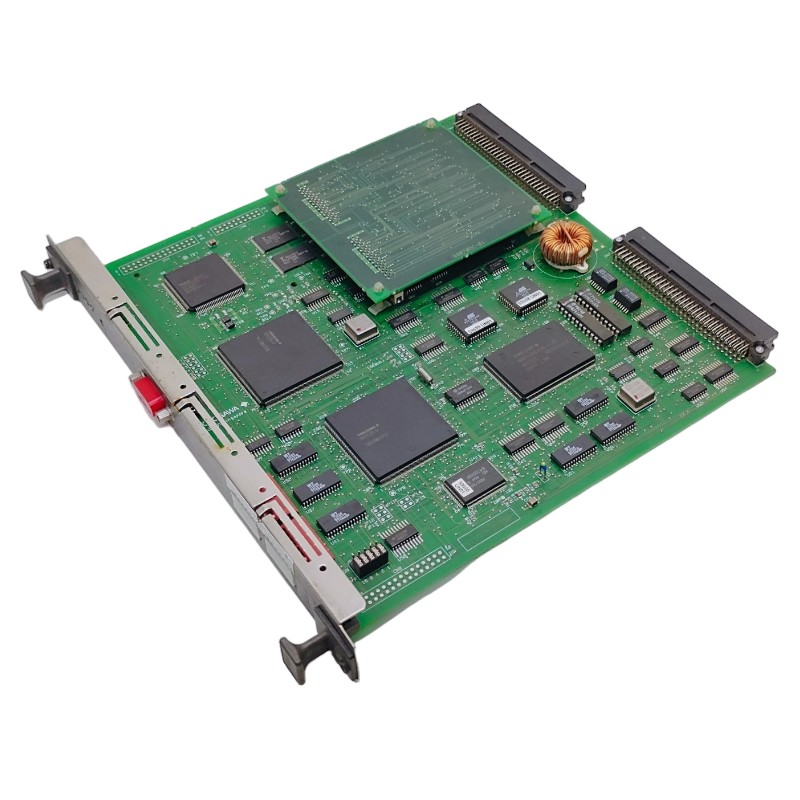

Yokogawa CP701 Control Module Board

Overview

The Yokogawa Electric Corporation CP701 is a control module board designed for stable industrial automation and process control applications. It provides reliable system coordination, signal handling, and control execution within distributed control architectures used in industrial environments.

General Information

Part Number: CP701

Manufacturer: Yokogawa Electric Corporation

Brand: Yokogawa

Country of Origin: Japan

Product Type: Control Module Board

System Role: Control processing and system coordination module

Application: Industrial process control and automation systems

Mounting Type: Rack or cabinet-mounted control system board

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Low-power industrial design for continuous operation

Backplane Interface: Integrated system control bus

Protection Features: Built-in diagnostics and system fault detection

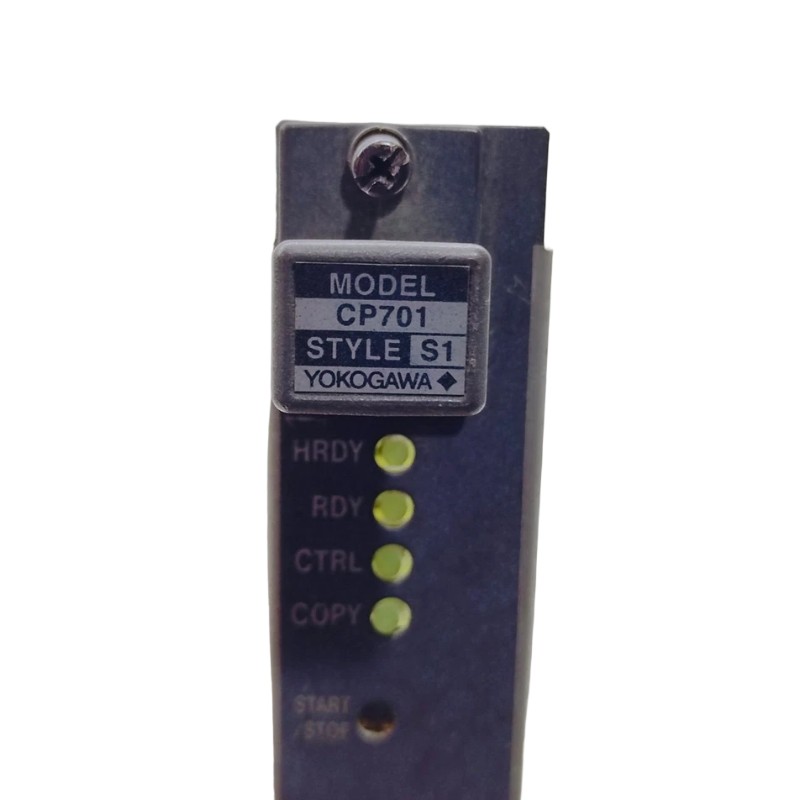

Status Indicators: LED indicators for run, fault, and operational status

Communication & Interface

System Communication: Internal control network backplane

Processing Function: Real-time control logic execution

Diagnostics: Self-diagnostics and system health monitoring

Expansion Capability: Compatible with modular system expansion architecture

Synchronization: Coordinated multi-module system operation

Environmental

Operating Temperature: Industrial control cabinet range (system dependent)

Storage Temperature: Extended industrial storage range

Humidity: Designed for standard industrial environments

Vibration Resistance: Suitable for continuous industrial operation

Shock Resistance: Designed for plant automation environments

Dimensions & Weight

Dimensions (H × W × D): 320 × 210 × 60 mm

Weight: 0.5 kg

Stable control performance built for continuous industrial reliability.
