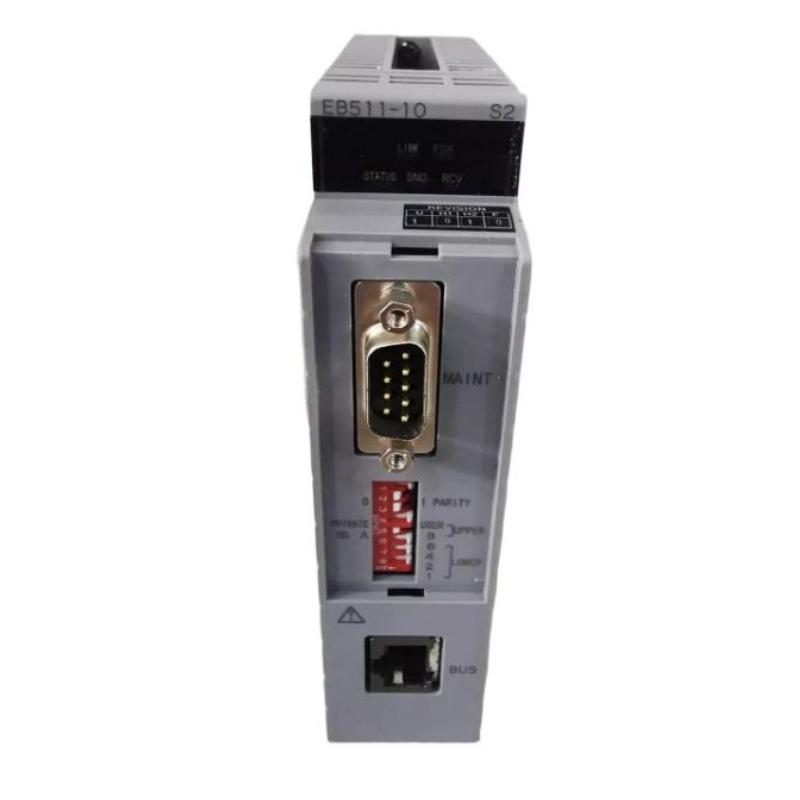

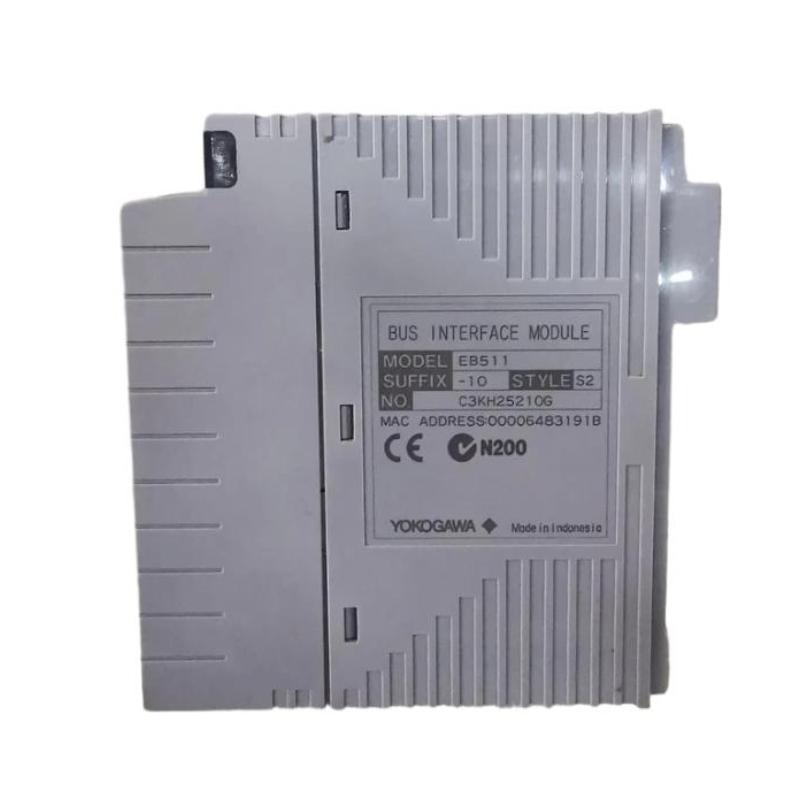

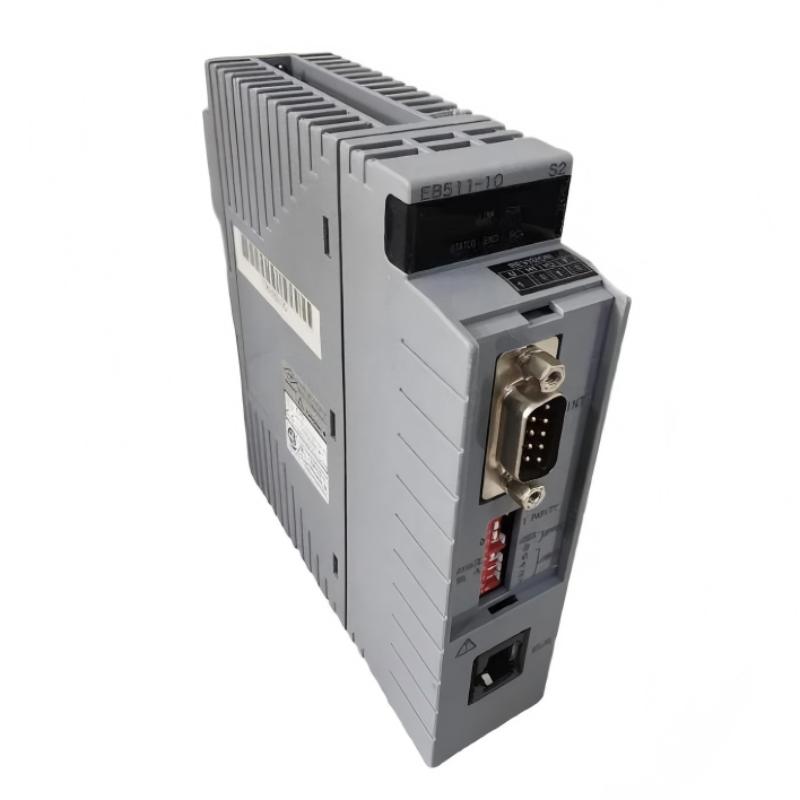

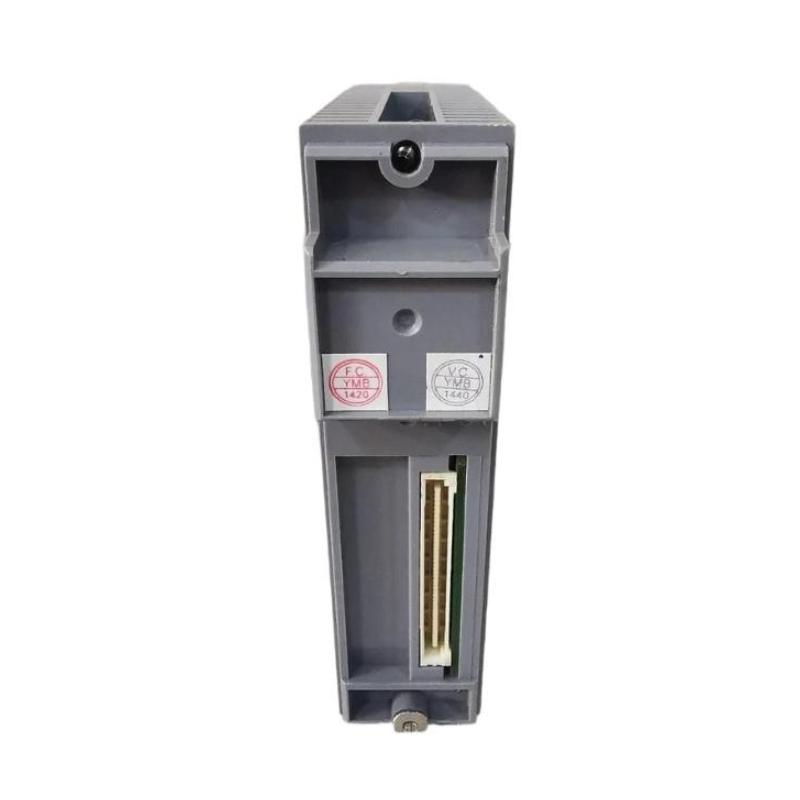

Yokogawa EB511-10 S2 Bus Interface Module

Overview

The Yokogawa EB511-10 S2 is a bus interface module designed for Yokogawa distributed control systems. It provides reliable communication between the system bus and connected I/O modules, ensuring fast data exchange and stable system performance in industrial automation and process control environments.

General Information

Part Number: EB511-10 S2

Manufacturer: Yokogawa

Brand: Yokogawa

Country of Origin: Japan

Series: ESB I/O System

Type: Bus Interface Module

Function: Bus communication and I/O interface

Application: Distributed control systems and industrial automation

Power Specifications

Power Supply: Backplane powered

Power Consumption: Approx. 5 W

Power Distribution: Powered through the system backplane

Protection: Overcurrent and internal fault protection

Status Indicators: Power, communication, and diagnostic LEDs

Communication & Interface

System Interface: ESB backplane connection

Communication Function: High-speed system bus communication

Configuration: Automatic module recognition and system configuration

Diagnostics: Built-in communication and module status monitoring

Compatibility: Compatible with Yokogawa ESB-based control systems

Environmental

Operating Temperature: 0 to 55 °C

Storage Temperature: −25 to 70 °C

Relative Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for installation inside an industrial control cabinet)

Dimensions & Weight

Dimensions (L × W × H): 144.65 × 130 × 32.8 mm

Weight: 0.3 kg
