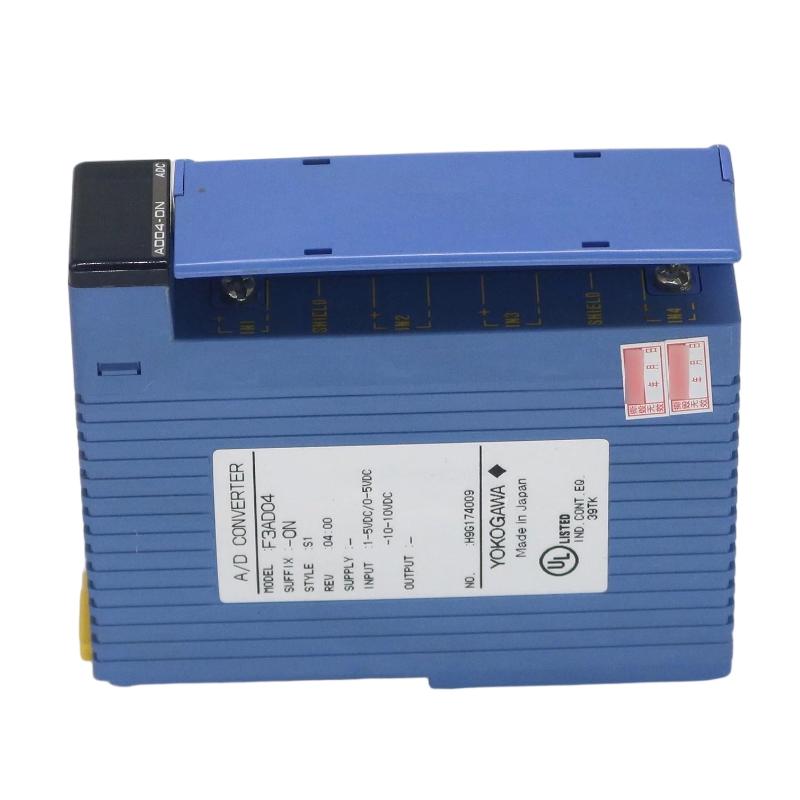

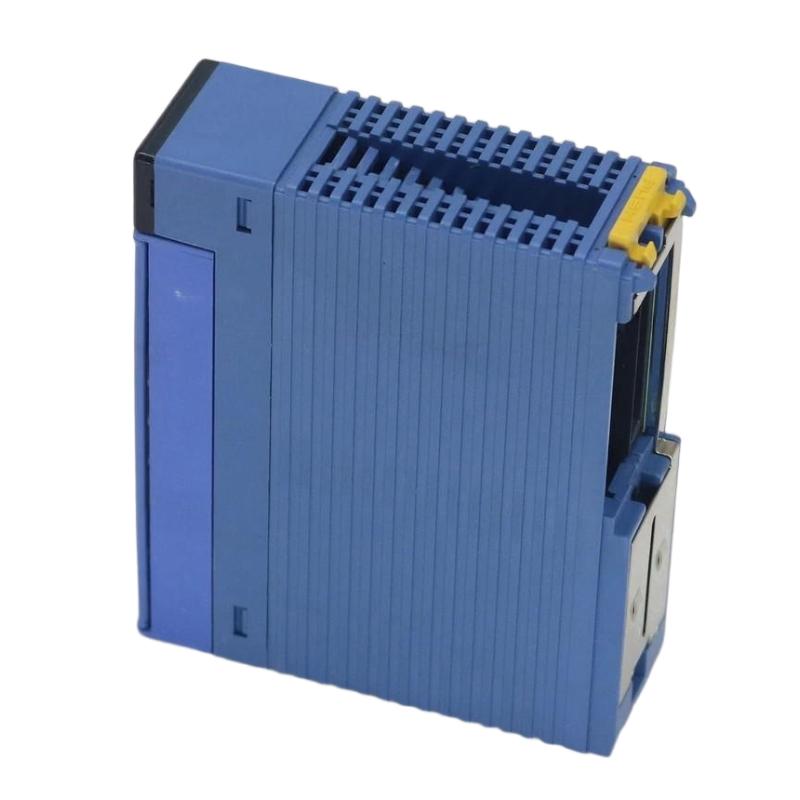

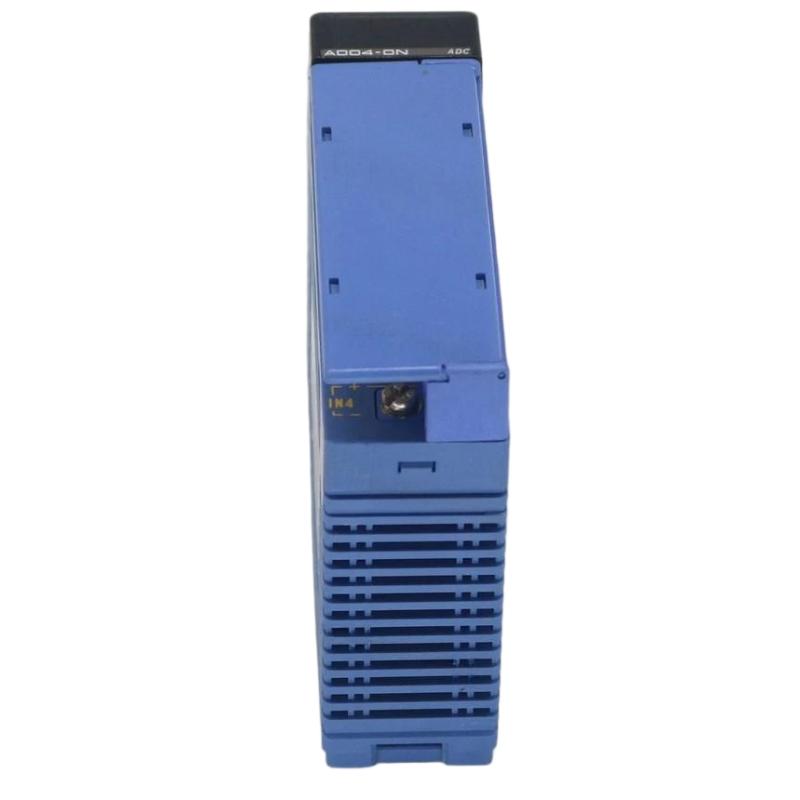

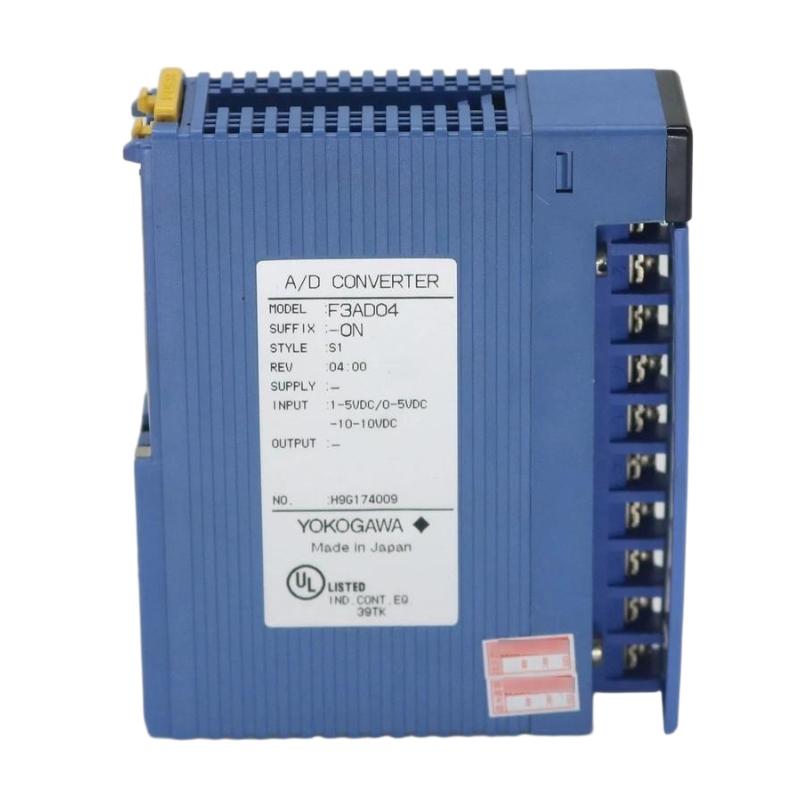

Yokogawa F3AD04-0N Analog-To-Digital Conversion Input Module

Overview

The Yokogawa F3AD04-0N is an analog-to-digital conversion input module designed for distributed control systems. It converts analog process signals into digital data for accurate monitoring and control, supporting stable and reliable signal acquisition in industrial automation applications.

General Information

Part Number: F3AD04-0N

Manufacturer: Yokogawa

Brand: Yokogawa

Country of Origin: Japan

Series: F3 Series I/O Modules

Type: Analog Input Module (A/D Conversion)

Mounting: Rack-mounted installation

Application: Analog signal acquisition, process monitoring, and DCS input processing

Power Specifications

Input Voltage: 5 V DC (system backplane supply)

Power Consumption: Low-power analog processing module

Protection Features: Signal isolation and noise suppression design

Status Indicators: LED indicators for channel and module status

Communication & Interface

Interface Type: DCS backplane interface

Input Type: Analog signal inputs converted to digital output

Channel Configuration: Multi-channel analog input support (4 channels)

Function: Converts field analog signals into digital data for control system processing

Diagnostics: Channel fault detection and module status monitoring

Connection Type: Backplane and terminal block interface

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −20 to +70 °C

Relative Humidity: 5% to 95% non-condensing

Protection Rating: Industrial control cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 100 × 28.9 × 83.2 mm

Weight: 0.17 kg

Accurate analog conversion for reliable and stable process control performance.
